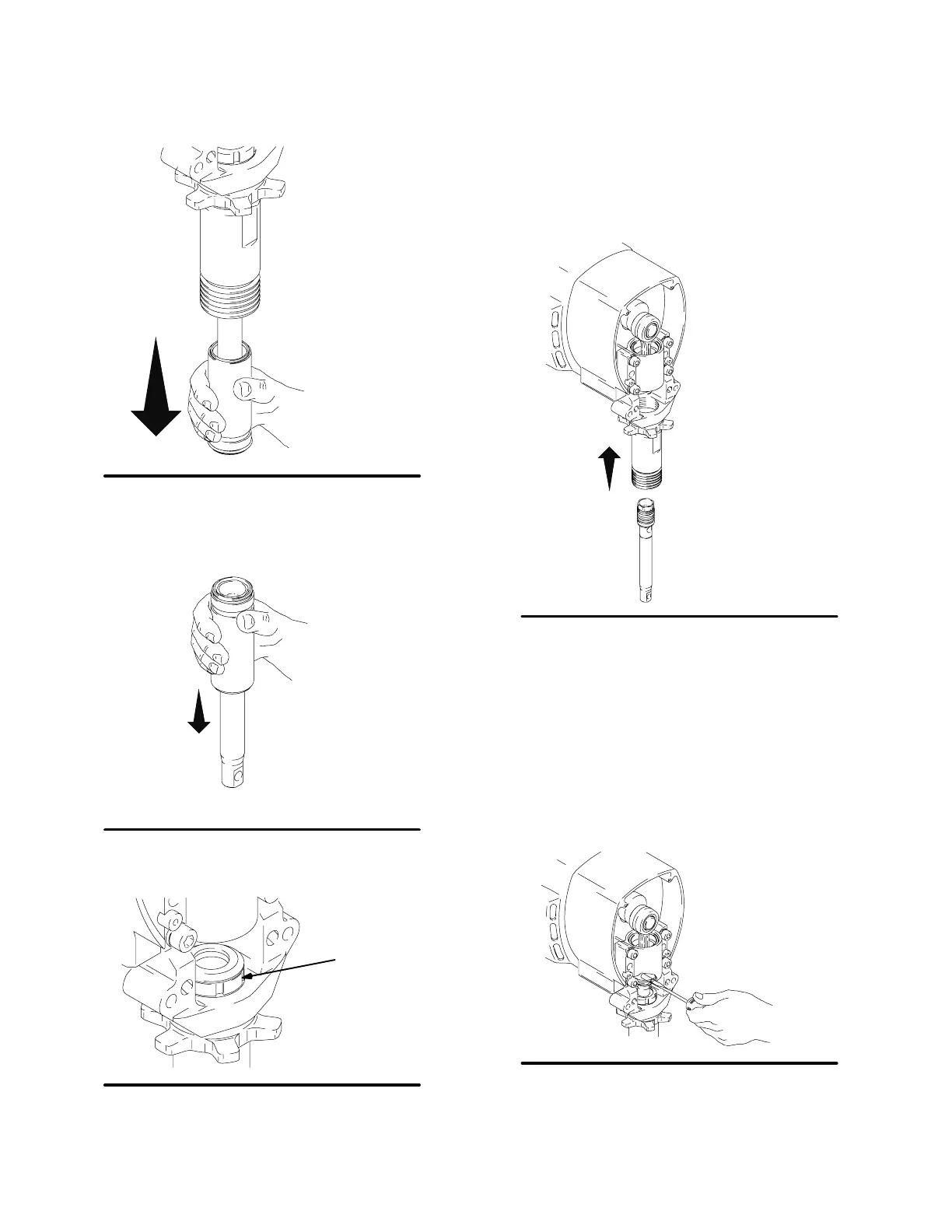

10 309277
Service
Fig. 4. Remove piston rod and sleeve.
7746A
Fig. 4
Fig. 4. Invert piston rod and sleeve and pound on hard
surface until piston rod comes out of sleeve.
Fig. 5
7572A
Fig. 6. Remove packing nut (202)
7726A
Fig. 6
202
Fig. 7. Invert piston rod and insert into cylinder to force
out throat packings.
Fig. 7
7747A
Fig. 8. Insert piston rod into cylinder with pin hole up
and piston valve down. Insert pin into piston rod and
crank shaft.
Fig. 8
7675A
