*203
*216
201
202
224*
223*
204*
205
221*
220
222‡
206*
219*
218*
217*
210
215
212†
213
†*214
*208
207*
†*227
228

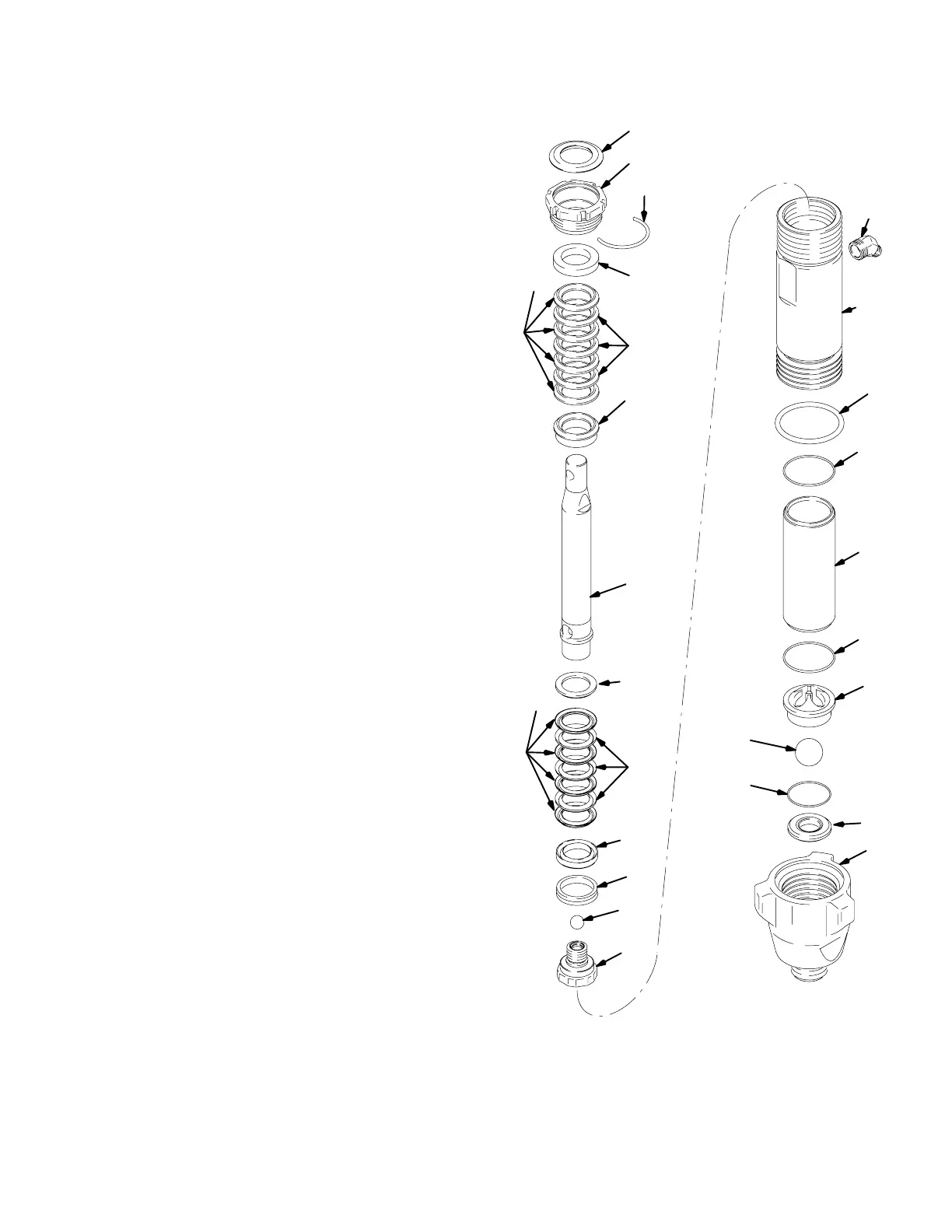

TI1317b
221*
225
19309277
Parts – Pump 244957
Model 244957, Series A
Ref
No. Part No. Description Qty.
201 196362 PLUG 1
202 196361 NUT, packing 1
203* 197468 V-PACKING (Throat) 4
V-Max UHMWPE, blue
204 * 196372 GLAND, packing, male 2
205 244977 CYLINDER, pump 1
206* 101822 BALL, sst, 0.625 in. 1
207* 116612 PACKING, o-ring 1
208* 197469 V-PACKING (Piston) 4
V-Max UHMWPE, blue
210 244454 VALVE, piston 1
212† 244960 SEAT, carbide 1
includes 214 and 227
213 196357 HOUSING, intake (foot) 1
214*† 102973 BALL, sst, 1.25 in. 1
215 196363 GUIDE, ball 1
216* 196928 GUIDE, piston 1
217* 197354 GLAND, female, piston 1
218* 184305 V-PACKING, leather, piston 3
219* 196925 GLAND, packing, male 1
220 287557 SLEEVE, cylinder 1
221* 106259 PACKING, o–ring 2
222 287558 ROD, piston 1
223* 184304 V-PACKING, leather, throat 3
224* 197368 GLAND, packing, female 1
225 116755 NIPPLE, elbow, 45 1
227*† 104537 PACKING, o-ring 1
228 197864 SPACER, nut 1
* These parts are also included in Repair Kit 244958,
which may be purchased separately.
† These parts are also included in Carbide Seat Kit
244960, which may be purchased separately.
