*216
201
202
224*
223*
204*
205
221*
220
222
206
219*
203*
217*
210
215
212†
213
†214
*209
221*
207*
†*227
228
1
*203
ti2086c
236
237
21309277

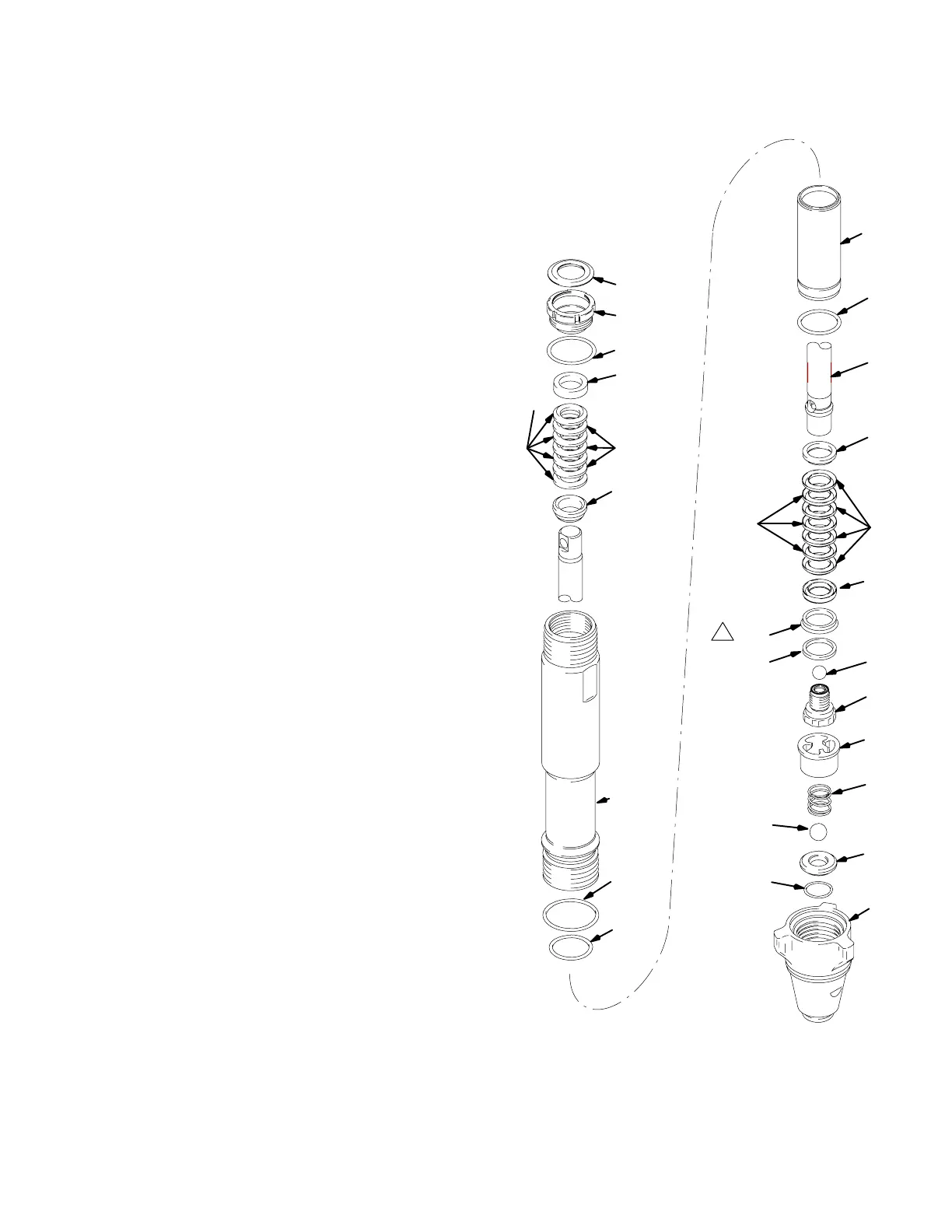

Parts – Pump 287946
Model 287946, SeriesA
Ref
No. Part No. Description Qty.
201 112590 PLUG 1
202 189589 NUT, packing 1
203* 198701 V-PACKING 8
V-Max UHMWPE, blue
204* 198768 GLAND, male, throat, brass 1
205 15G437 CYLINDER, pump 1
206 118601 BALL, ceramic, 0.5625 in. 1
207* 107306 PACKING, o-ring 1
209* 112591 PACKING, vee, leather 3
210 249177 VALVE, piston 1
212† 245885 SEAT, carbide 1
includes 214 and 227
213 15A303 HOUSING, intake (foot) 1
214† 118602 BALL, ceramic, 0.875 in. 1
215 15D158 GUIDE, ball 1
216* 119636 SEAL, U-cup 1
217* 189588 GLAND, female, piston, steel 1
219 189585 GLAND, packing, male, steel 1
220 15E672 SLEEVE, cylinder 1
221* 108822 P ACKING, o-ring 2
222 15G848 ROD, piston 1
223* 198718 V-PACKING, leather, piston 3
224* 194175 GLAND, packing, female, brass 1
227*† 107098 PACKING, o-ring 1
228 108832 SPACER, throat adjustment o-ring 1
236 118600 SPRING, compression 1
237 15F183 WASHER, back-up 1
* These parts are also included in Repair Kit 287945,
which may be purchased separately.
† These parts are also included in Carbide Seat Kit
245885, which may be purchased separately.
