*203
*216
201
202
224*
223*
204*
205
221*
220
222
206*
219*
203*
210
215
212†
213
†*214
238
221*
207*
†*227
228
1
236
237
ti2331c
217*
23309277

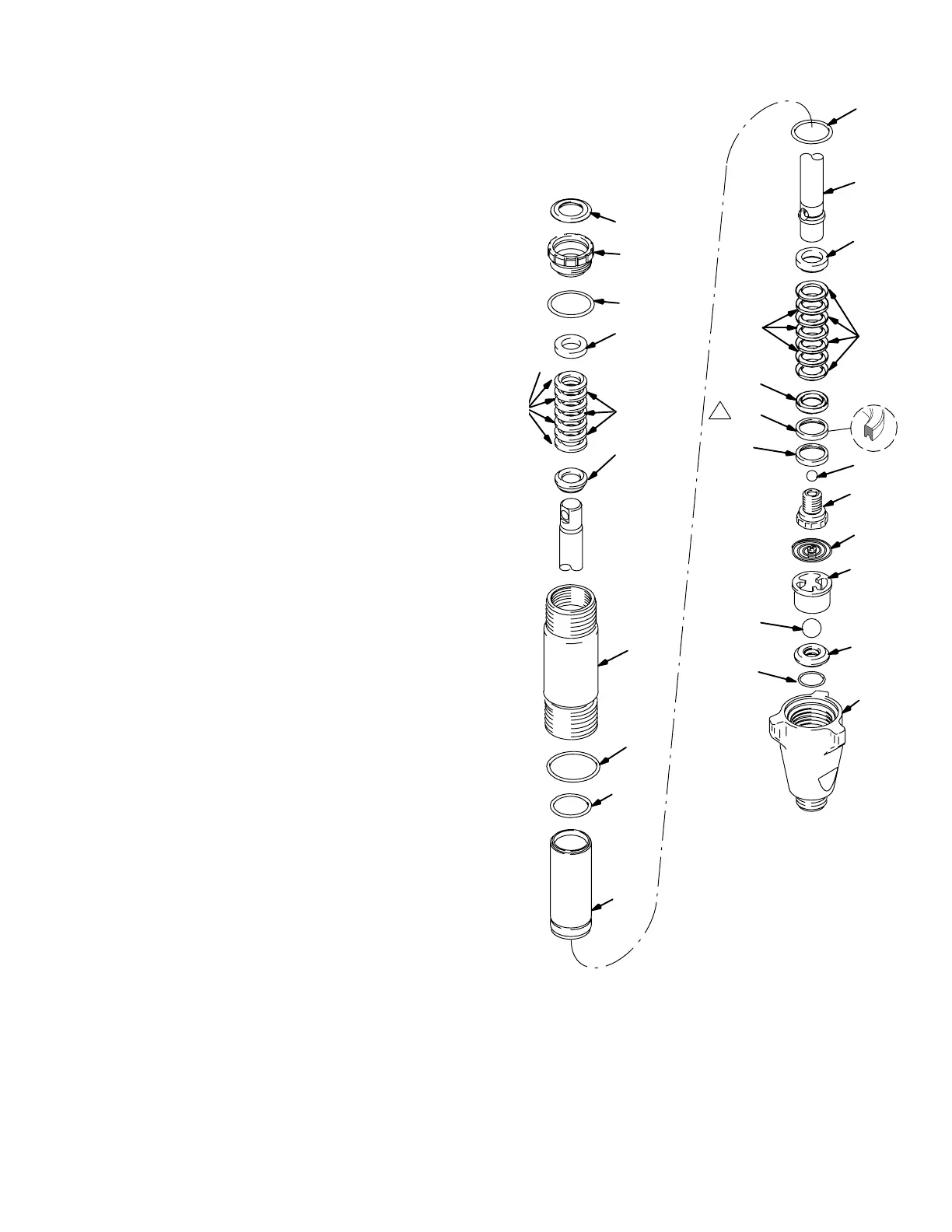

Parts – Pump 287815
Model 287815, Series A
Ref
No. Part No. Description Qty.
201* 112590 PLUG 1
202 189589 NUT, packing 1
203* 198701 V-PACKING 8
V-Max UHMWPE, blue
204* 15G658 GLAND, male, throat 1
205 249532 KIT, CYLINDER, pump 1
206* 107203 BALL, sst, 0.5625 in. 1
207* 107306 PACKING, o-ring 1
210 249177 VALVE, piston 1
212† 240918 SEAT, carbide 1
includes 214 and 227
213 198219 HOUSING, intake (foot) 1
214*† 107167 BALL, sst, 1.000 in. 1
215 198505 GUIDE, ball 1
216* 119636 WIPER, piston 1
217* 189588 GLAND, female, piston, steel 1
219* 189585 GLAND, packing, male, steel 1
220 287817 SLEEVE, cylinder 1
221* 108822 P ACKING, o-ring 2
222 287816 ROD, piston 1
223* 198718 V-PACKING, leather, piston 3
224* 15G657 GLAND, packing, female 1
227*† 107098 PACKING, o-ring 1
228* 108832 SPACER, throat adjustment o-ring 1
236 233698 SPRING, intake 1
237* 15F183 WASHER, backup 1
238* 15F875 V–PACKING, piston V-Max
UHMWPE, brown 3
* These parts are also included in Repair Kit 287813,
which may be purchased separately.
† These parts are also included in Carbide Seat Kit
240918, which may be purchased separately.
