*203
*216
201
202
224*
223*
204*
205
221*
220
222
206
219*
203*
217*
210
215
212†
213
†*214
*223
221*
207*
†*227
228
1
236
ti2331a
26 309277

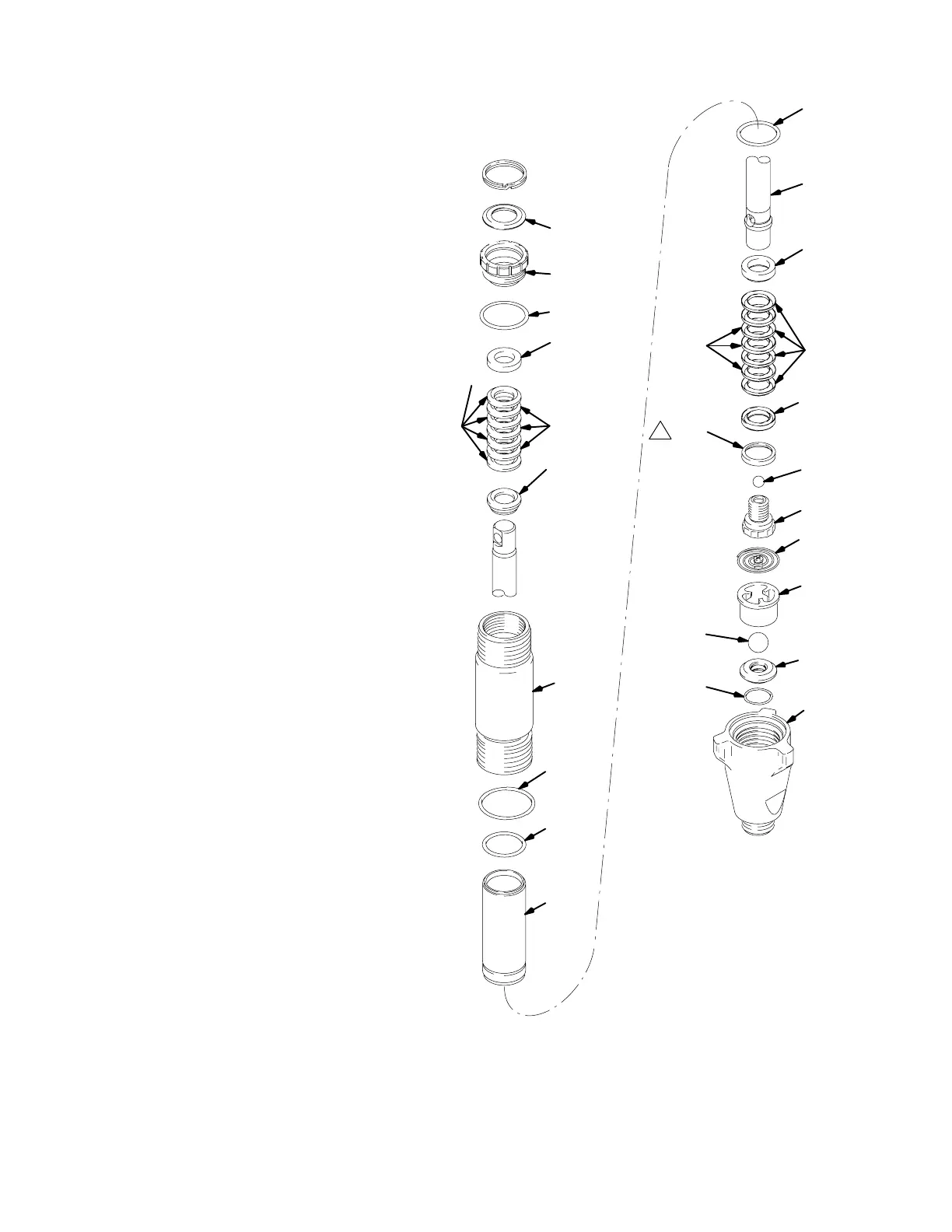

Parts – Pump 248971, 277068
Model 248971, Series A; 277068, Series A
Ref
No. Part No. Description Qty.
201 112590 PLUG 1
202 189589 NUT, packing 1
203* 198701 V-PACKING 8
V-Max UHMWPE, blue
204* 198768 GLAND, male, throat, brass 1
205 245413 CYLINDER, pump 1
206* 107203 BALL, sst, 0.5625 in. 1
207* 107306 PACKING, o-ring 1
210 240580 VALVE, piston 1
212† 240918 SEAT, carbide 1
includes 214 and 227
213 198219 HOUSING, intake (foot) 1
214*† 107167 BALL, sst, 1.000 in. 1
215 193391 GUIDE, ball 1
216* 198303 GUIDE, piston, plastic 1
217* 198765 GLAND, female, piston, steel 1
219 189585 GLAND, packing, male, steel 1
220 248979 SLEEVE, cylinder 1
221* 108822 P ACKING, o-ring 2
222 249000 ROD, piston 1
223* 198718 V-PACKING, leather, piston 6
224* 194175 GLAND, packing, female, brass 1
227*† 107098 PACKING, o-ring 1
228 108832 SPACER, throat adjustment o-ring 1
236 233698 SPRING, intake 1
* These parts are also included in Repair Kit 246341,
which may be purchased separately.
† These parts are also included in Carbide Seat Kit
240918, which may be purchased separately.
