8 309277
Service

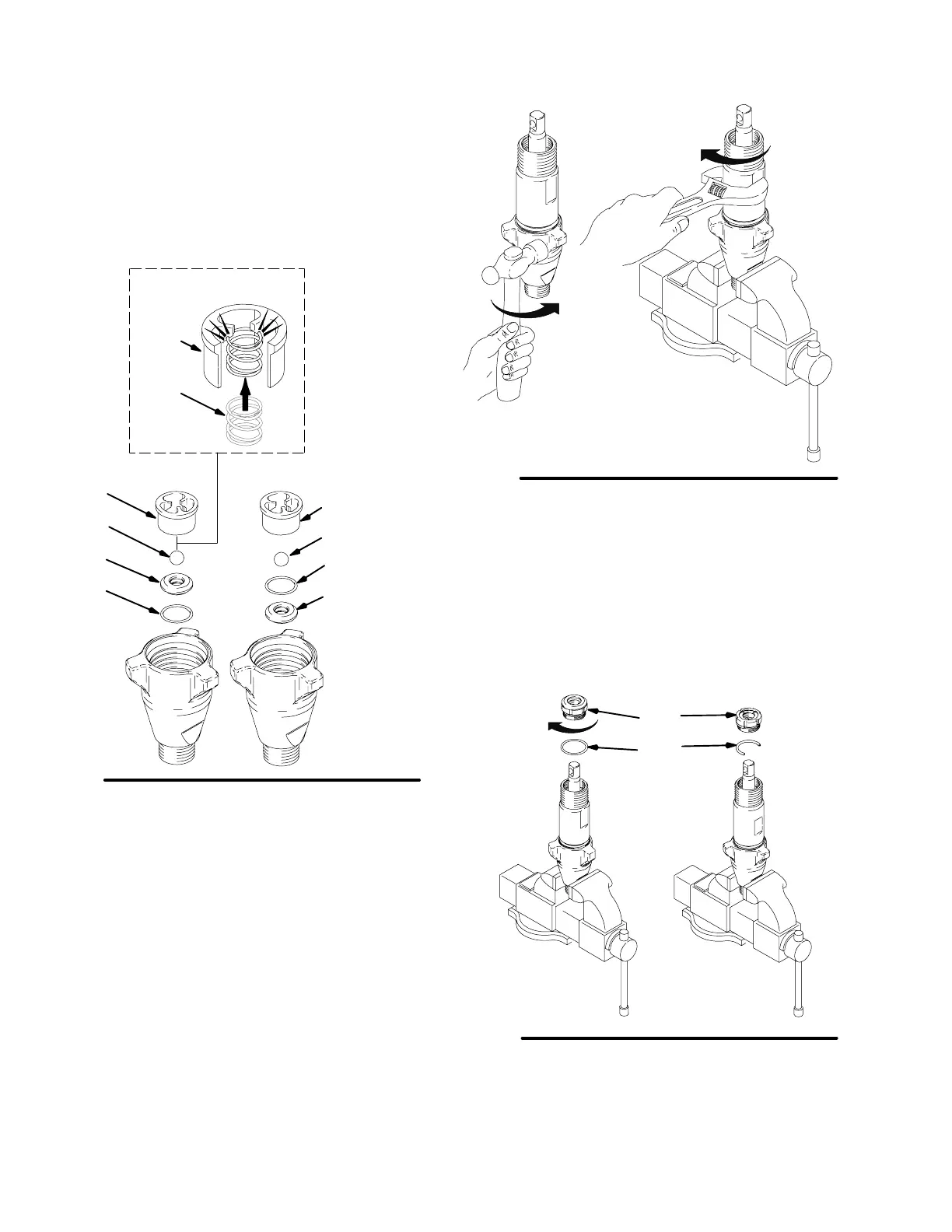

Fig. 18. Reassemble intake valve with new o-ring
(227), seat (212) and ball (214). Seat may be flipped
over and used on other side. Clean seat thoroughly.
Snap intake spring (236) into place inside ball guide
(215).
Fig. 18
212
214
212
227
214
227
(o-ring
on top
244957
only)
(o-ring on
bottom
all except
244957)
7570c
236
215
245889, 287946 only
215
215
Fig. 19. Install intake valve on cylinder. If a wrench is
used torque as follows:
67 +/–5 ft-lb (model 244197)
80 +/–5 ft–lb (models 244201, 244224, 244409,
245902, 245904)
200 +/–10 ft–lb (models 244954, 246257, 245889,
287946, 277068, 248736, 248971)
200 +/–15 ft–lb (model 244957, 287814, 287815)
If a wrench is not used, be sure intake valve is bot-
tomed out against cylinder.
Fig. 19
7569A
Fig. 20. Torque seal and packing nut (202) down onto
throat adjustment spacer (228) to 100 +/–10 in-lb (75
+/–5 in-lb for 246257) (140+/–10 in–lb for 287814,
287815).
Remove throat adjustment spacer (228) when pump
packings begin to leak after much use. Then tighten
packing nut down until leakage stops or lessens. This
allows approximately 100 gallons of additional opera-
tion before a repacking is required.
7568A
Fig. 20
202
228
(228 o-ring
on 246257)
ti2332a
