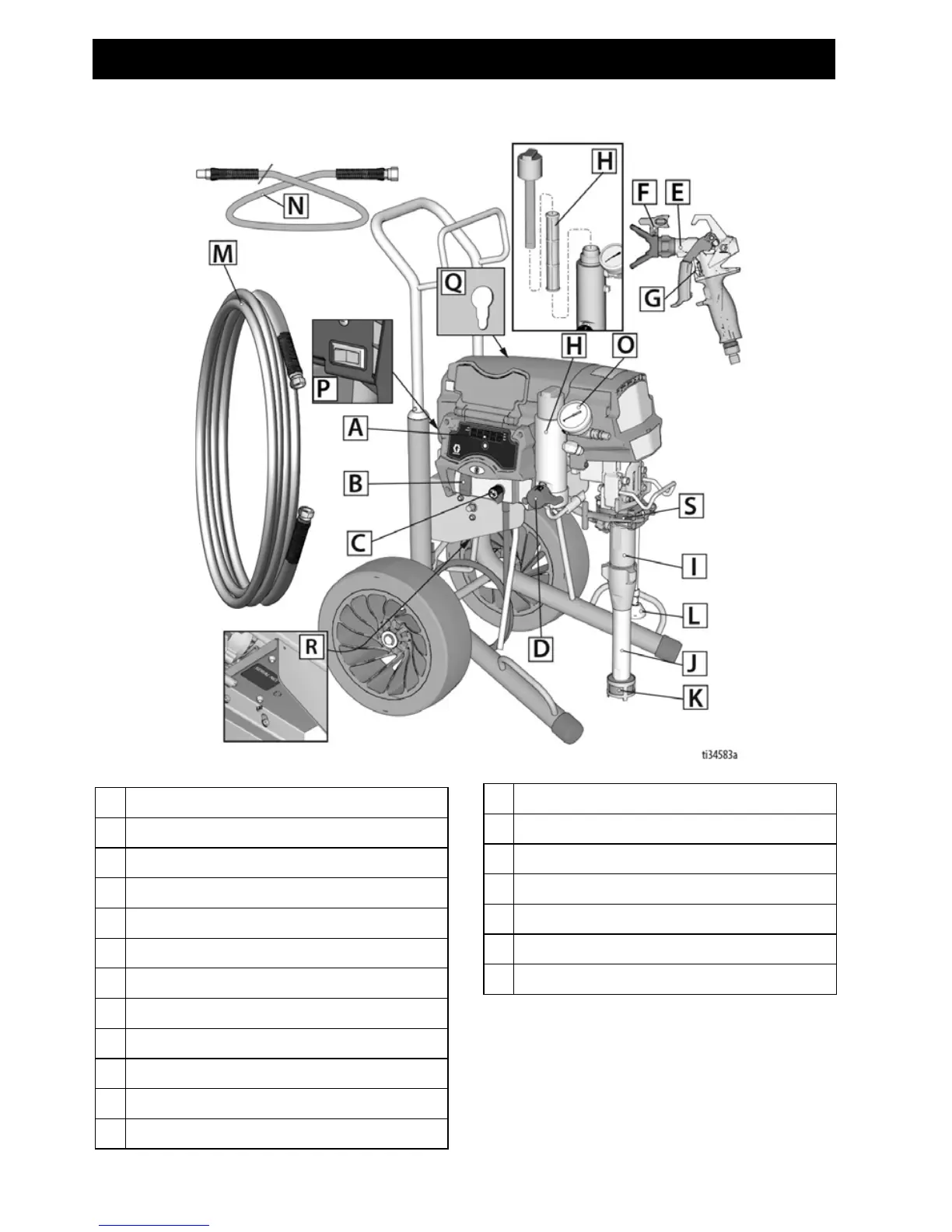

Know Your Sprayer
14 3A6342A
1095 / 1595 / Mark V IronMan Models:
A LED Display (not included on all units)
BON/OFF Switch
C Pressure Control Knob
D Prime / Spray Valve
E Spray Gun
F Spray Tip
G Trigger Lock
HFilter
IPump
J Suction Tube
K Inlet Strainer
L Drain Tube
MHose
N Whip Hose (not included on all models)
O Pressure Gauge (not included on all units)
P Amp Switch (not equipped on all units)
Q ProConnect Pump Rod Pull Feature
R Unit/Serial Tag
S ProConnect II
