Graco MARK V

Diagrams and Parts
72 3A6342A

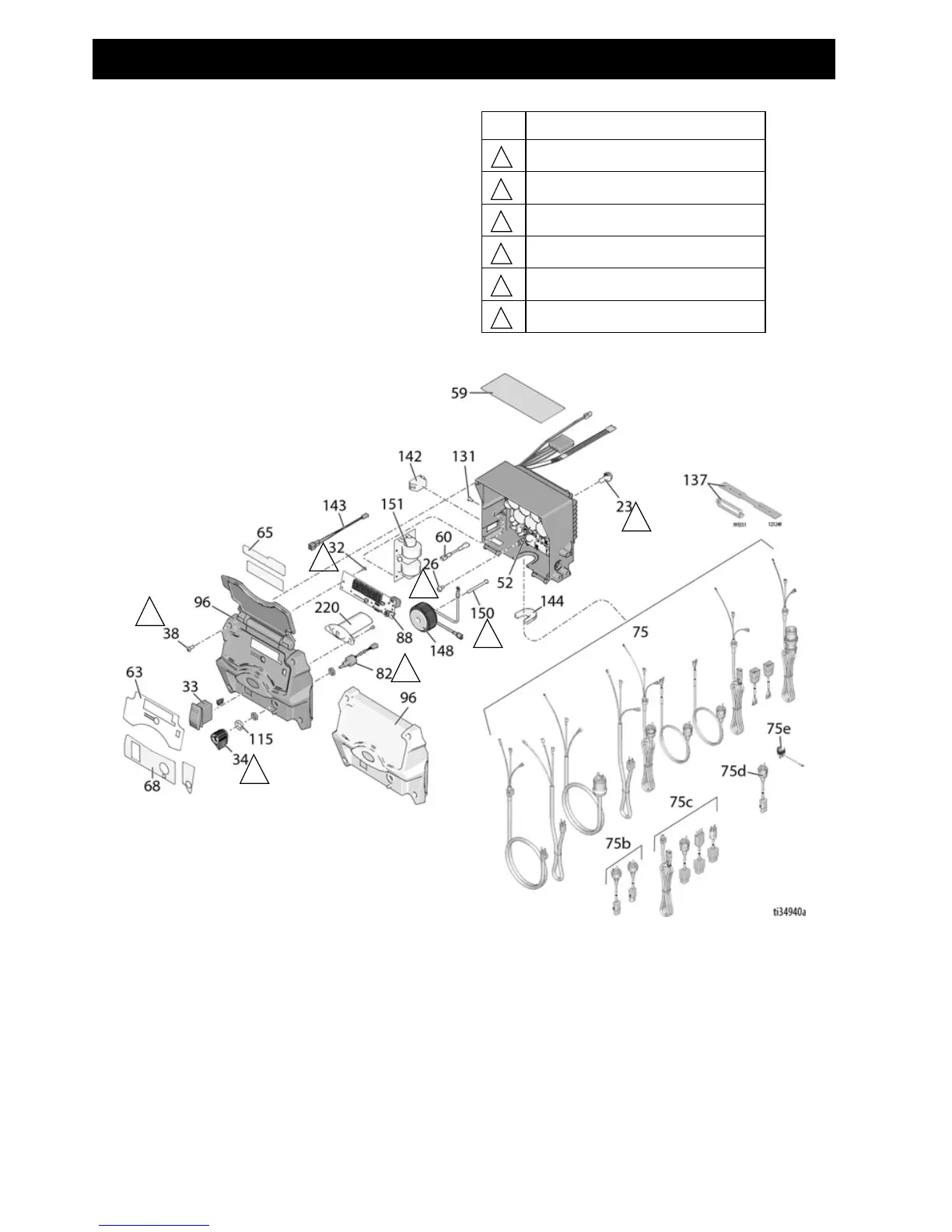

Control Box Diagram
Ref. Torque
10-15 in-lb (1.1 - 1.7 N•m)
40-45 in-lb (4.5 - 5.0 N•m)
200-230 in-lb (22.6 - 25.9 N•m)
30-35 in-lb (3.3 - 3.9 N•m)
15-20 in-lb (1.7 - 2.2 N•m)
2-3 in-lb (0.2 - 0.4 N•m)
1
2
3
4
5
6
1
2
3
2
4
5
6
