Graco Monark A Series 222-791 User Manual

14 307-043

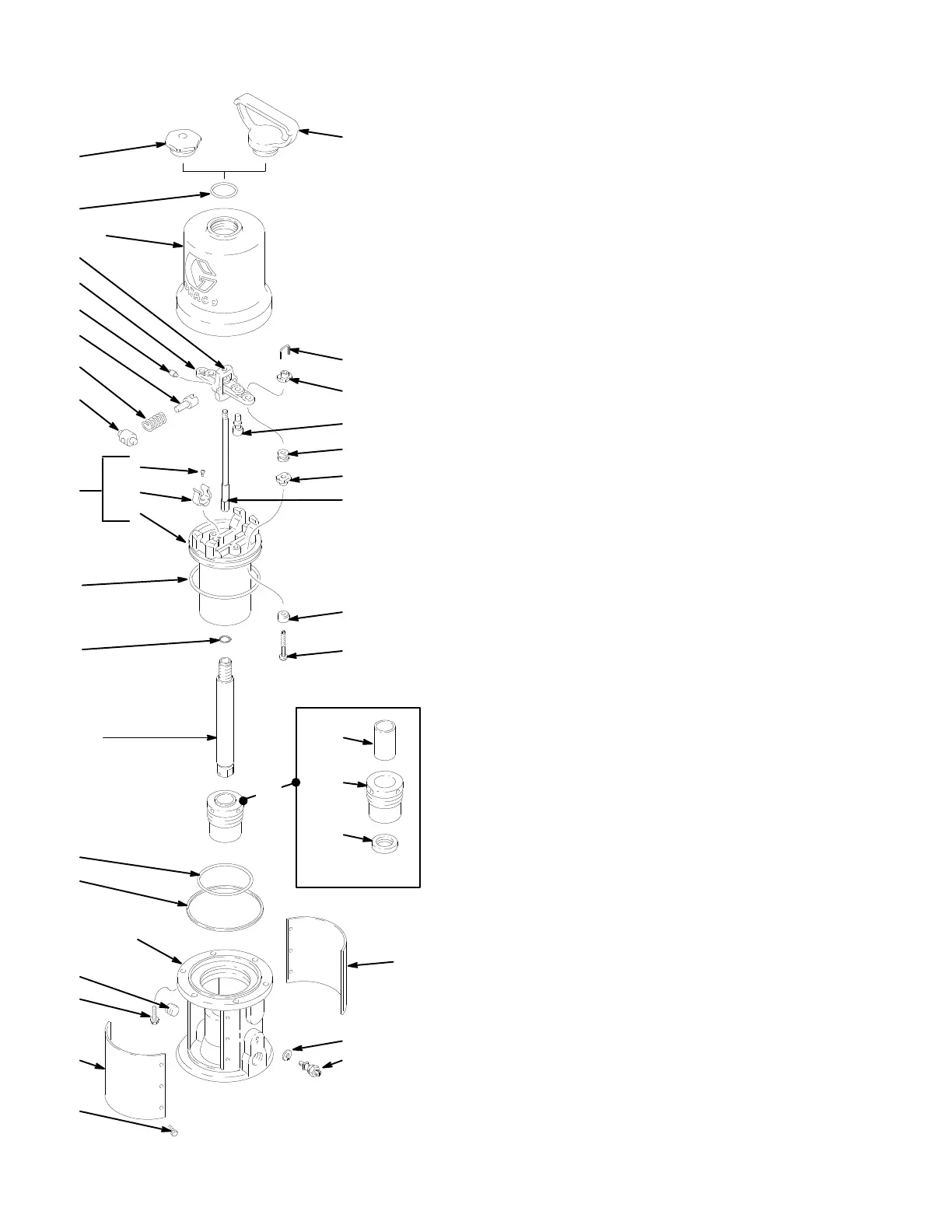

Parts
7
**12
13
9**
10**
11
31
*14
**15
3
46,18
36
6
22,
37
32
34
33
4
*19
26
25**
8**
9**
1
43
5
24**,45
16**
**17
23
40
39
29
30
28
NOTE:
Seal
lips face upward
27
05706
21
20,
38, 44
2
3 TIE ROD MOUNTING
Model 205–997, Series G Air Motor Assembly
Includes: 1, 3–15, 17–20, 23, 25–34, 36–43, 45
Model 215–363, Series A Air Motor Assembly
Includes: 1, 3–15, 17–19, 21, 23, 25–34, 37–43, 45
Model 945–972, Series A Air Motor Assembly
Includes: 1, 3–17, 19, 23–27, 32–34, 36 37, 39–44, 46
Model 222–791, Series A Air Motor Assembly
Includes: 1–15, 17–23, 25–34, 39–43, 45
Ref.
No.
Part No. Description Qty.
1 100–078 SCREW , hex head;
no. 8–32 x 0.38 in. (10 mm) long. 16
2 100–361
PLUG, pipe; 1/2 in. npt 1
3 101–578 SCREW , hex head;
5/16 x 0.875 in. (10 mm) long 6
4* 156–698 O-RING; buna-N 1
5 158–360
YOKE, rod, trip 1
6 158–362
PIN, toggle 2
7* 158–364 ROCKER, toggle 2
8** 158–367 GROMMET
, rubber , air intake 2
9** 160–261 NUT , adjusting 4
10** 160–618 LOCKWIRE, transfer valve 2
1
1 172–867 ACTUATOR, valve 1
12** 160–621 O-RING, nitrile rubber 1
13 160–623
ARM, toggle 2
14*
160–624 O-RING, buna-N 1
15** 160–625 O-RING, buna-N 1
16** 160–896
STEM, valve (945–972 ONL Y) 2
17**
160–932 GASKET ; copper 1
18 164–186 CYLINDER 1
19* 167–585 SPRING, helical compression 2
20 184–270 BASE 1
21
164–704 NUT , cap; with carry handle 1
22
164–705 ROD; piston 1
23 172–452 PLA
TE, identification 1
24** 170–708 POPPET , valve; urethane 2
25** 170–709 POPPET
, valve; urethane 2
26 203–965 ROD, trip 1
27 205–529 BEARING HOUSING Assy; Includes
items 28–30 1
28* 101–524  SEAL 1
29 101–526  BEARING 1
30 164–701  NUT
, packing 1
31* 214–036 PISTON Assy; Includes items 32–34
(also includes repair kit 206–728 when
ordered as a replacement part) 1
32 102–975  SCREW , rd hd mach;
no. 6–32 x 0.25” (6.3 mm) 2
33 172–866 
CLIP , spring 2
34
 PIST ON, bare (not sold separately) 1
36
161–435 NUT , cap 1
37 177–136 ROD, piston 1
38 205–998 BASE 1
39
104–029 LUG, grounding 1
40 104–582 WASHER, tab 1
42 180–233
LABEL, warning 1
43 172–443 PLA TE, warning 1
44 609–354 BASE 1
45 236–079 POPPET
, valve; urethane 2
46 609–353 CYLINDER 1
* Recommended ”tool box” spare parts. Keep on hand to
reduce down time.
**Supplied in Repair Kit 206–728. Purchase the kit separate -
ly
. See page 15.
