Graco Monark Instructions-Parts List

308026 31

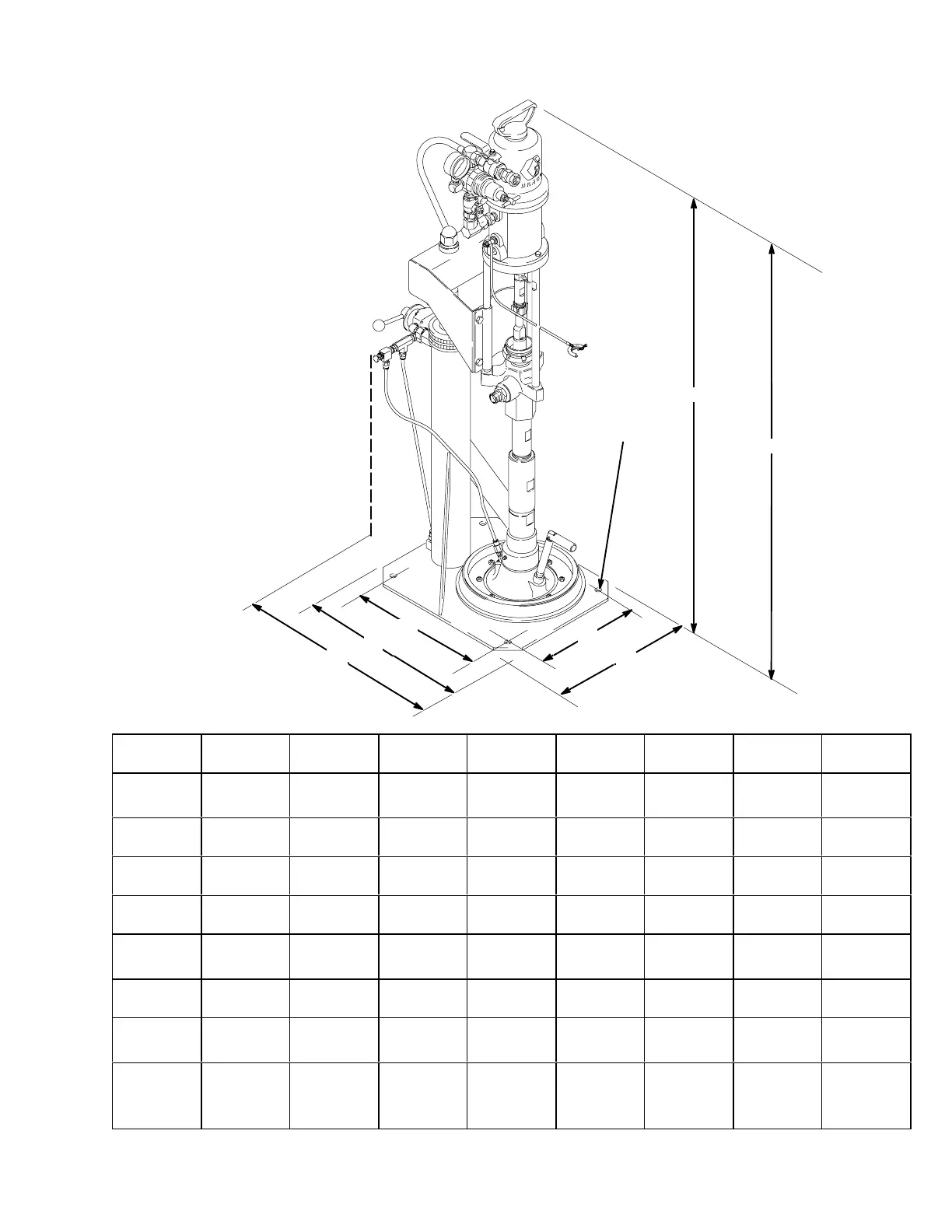

Dimensions
06540A
C
D
E
14.2 mm (0.56 in.)
Diameter Holes
F
A
B
G
Pump
Model
A
(Raised)
B
(Lowered)
C D E F G Weight
231111
233028
1561 mm
(61.46 in.)
1139 mm
(44.84 in.)
279 mm
(11 in.)
356 mm
(14 in.)
356 mm
(14 in.)
432 mm
(17 in.)
546 mm
(21.5 in.)
100 kg
(220 lb)
231113 1606 mm
(63.23 in.)
1210 mm
(47.64 in.)
279 mm
(11 in.)
356 mm
(14 in.)
356 mm
(14 in.)
432 mm
(17 in.)
546 mm
(21.5 in.)
93 kg
(205 lb)
231112 1832 mm
(72.13 in.)
1436 mm
(56.54 in.)
279 mm
(11 in.)
356 mm
(14 in.)
356 mm
(14 in.)
432 mm
(17 in.)
546 mm
(21.5 in.)
114 kg
(250 lb)
231166 1832 mm
(72.13 in.)
1436 mm
(56.54 in.)
279 mm
(11 in.)
356 mm
(14 in.)
356 mm
(14 in.)
432 mm
(17 in.)
546 mm
(21.5 in.)
114 kg
(250 lb)
231115
233029
1828 mm
(71.97 in.)
1432 mm
(56.38 in.)
279 mm
(11 in.)
356 mm
(14 in.)
356 mm
(14 in.)
432 mm
(17 in.)
546 mm
(21.5 in.)
114 kg
(250 lb)
231167 1828 mm
(71.97 in.)
1432 mm
(56.38 in.)
279 mm
(11 in.)
356 mm
(14 in.)
356 mm
(14 in.)
432 mm
(17 in.)
546 mm
(21.5 in.)
114 kg
(250 lb)
231117
234953
1606 mm
(63.23 in.)
1185 mm
(46.64 in.)
279 mm
(11 in.)
356 mm
(14 in.)
356 mm
(14 in.)
432 mm
(17 in.)
546 mm
(21.5 in.)
91 kg
(200 lb)
231118
234954
233030
1561 mm
(61.46 in.)
1139 mm
(44.84 in.)
279 mm
(11 in.)
356 mm
(14 in.)
356 mm
(14 in.)
432 mm
(17 in.)
546 mm
(21.5 in.)
95 kg
(210 lb)

Graco Monark Specifications

General

Type	Diaphragm Pump
Maximum Fluid Pressure	100 PSI
Air Inlet Size	1/2 inch NPT
Fluid Inlet Size	1 inch NPT
Fluid Outlet Size	1 inch NPT
Wetted Materials	Polypropylene, Santoprene
Flow Rate	5.5 GPM
Maximum Head	230 feet
Inlet Size	1 inch NPT
Outlet Size	1 inch NPT
Material	Polypropylene, Stainless Steel
Horsepower	N/A (Air Operated)
