Dimensions
88 3A0420ZAF

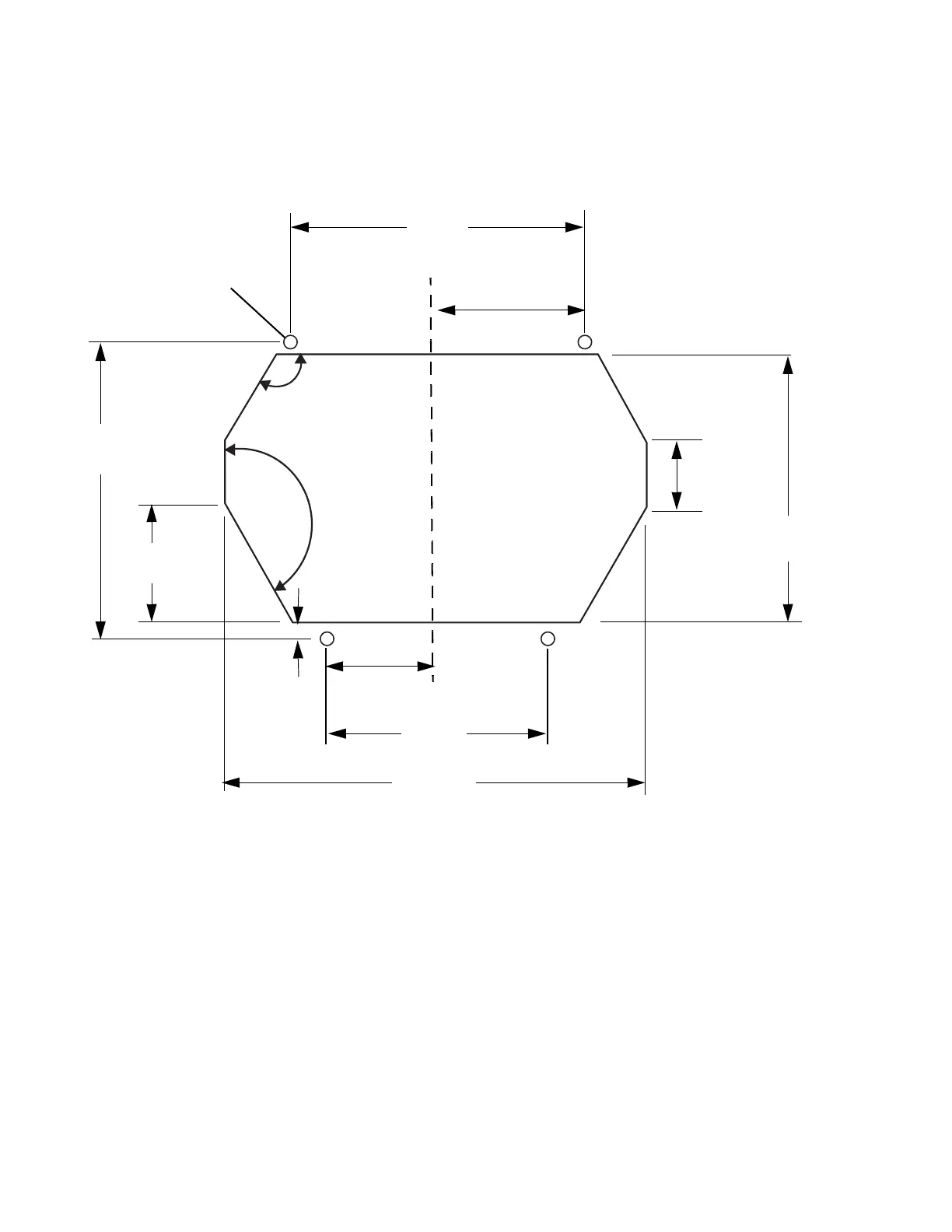

Bare Proportioner Mounting Hole Dimensions
The dimensions below is the minimum opening size for mounting a bare proportioner.
7.5 in.
(19.05 cm)
3.75 in.
(9.5 cm)
5.06 in.
(12.8 cm)
10.375 in.
(26.3 cm)
3/8-16 (4x)
10.125 in.
(25.7. cm)
14.35 in.
(36.4 cm)
9.25 in.
(23.4 cm)
0.25 in.
(0.63 cm)
150° (4x)
120° (4x)
2.25 in.
(5.7. cm)
4.05 in.
(10.2 cm)
