TANK INVERT LEVELS
3
Population Equivalent 5 PE 7 PE 9 PE
Tank 3750 litres 4800 litres 6500 litres
Max. daily inflow 750 l/d 1050 l/d 1350 l/d
Weight with mini tank dome 146kg 181kg 220kg
Weight with maxi tank dome 150kg 185kg 220kg
L 2280mm 2280mm 2390mm
W 1755mm 1985 mm 2190mm
H-Inv - 1390mm 1575mm 1840mm
H-Inv + * 630 to 1460mm
H-Tot 2020 to 2790mm 2250 to 3020mm 2530 to 3300mm
650
L
W
290
Inlet Level
(varies with tank size)
H-Inv +
H-Inv -
H-Tot
650
L
W
610
Inlet Level
(varies with tank size)
H-Inv +
H-Inv -
H-Tot

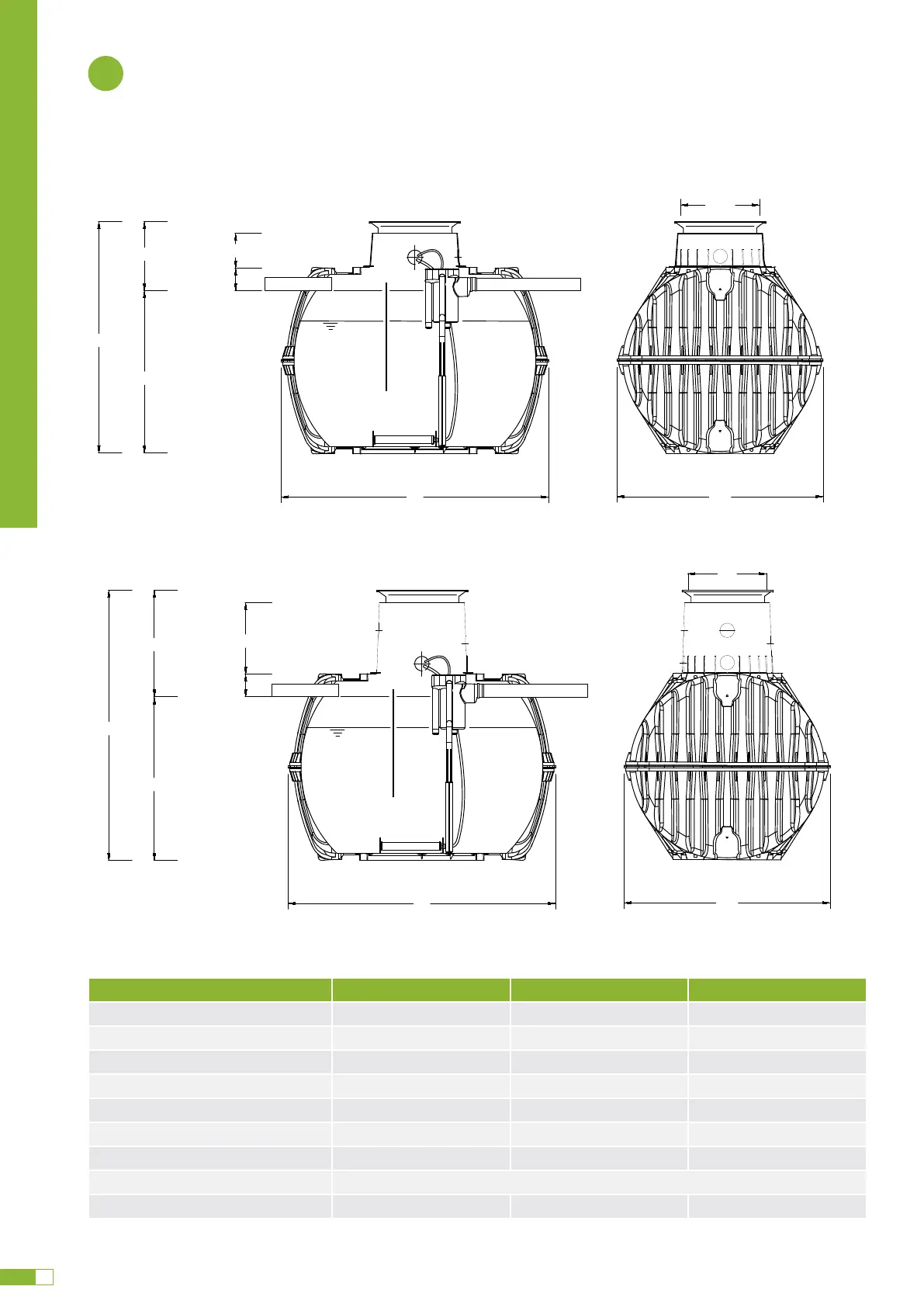

With mini tank dome
With maxi tank dome
* Various inlet options available to suit installation. Please specify invert depth required when ordering.
