. FUNCTION OF THE WASTEWATER TREATMENT SYSTEM
Graf UK Ltd

2
FUNCTION OF THE WASTEWATER TREATMENT SYSTEM
The one2clean small wastewater treatment system is fully biological and works according to the retention process with
long-term aeration (sequencing batch reactor). The system is essentially made up of an aerobic stage. This stage is split
into a rest area and an activation area. The chambers are connected to one another in the bottom section. During this
process, therefore, all domestic sewage is immediately exposed to aerobic wastewater treatment. The entire system is
aerated by compressed air being blown in and the sludge activated as a result of this biologically cleans the wastewater.
The coarse and floating solids contained in the wastewater are initially retained in the rest area by means of a bae.
The wastewater then passes through an overflow opening in the lower part of the container from the rest area into the
activation area.
As the rest area is also aerated, the solids which remain behind are also degraded aerobically over time. Wastewater
treatment is performed in the one2clean without pre-treatment, so that no anaerobic digestion processes can occur.
Operation of the treatment system is carried out via a microprocessor control system which controls the air compressor
and air distribution.
The SBR process is a sequence of dierent steps that occur at set times in a sequence and takes place at least once a day.

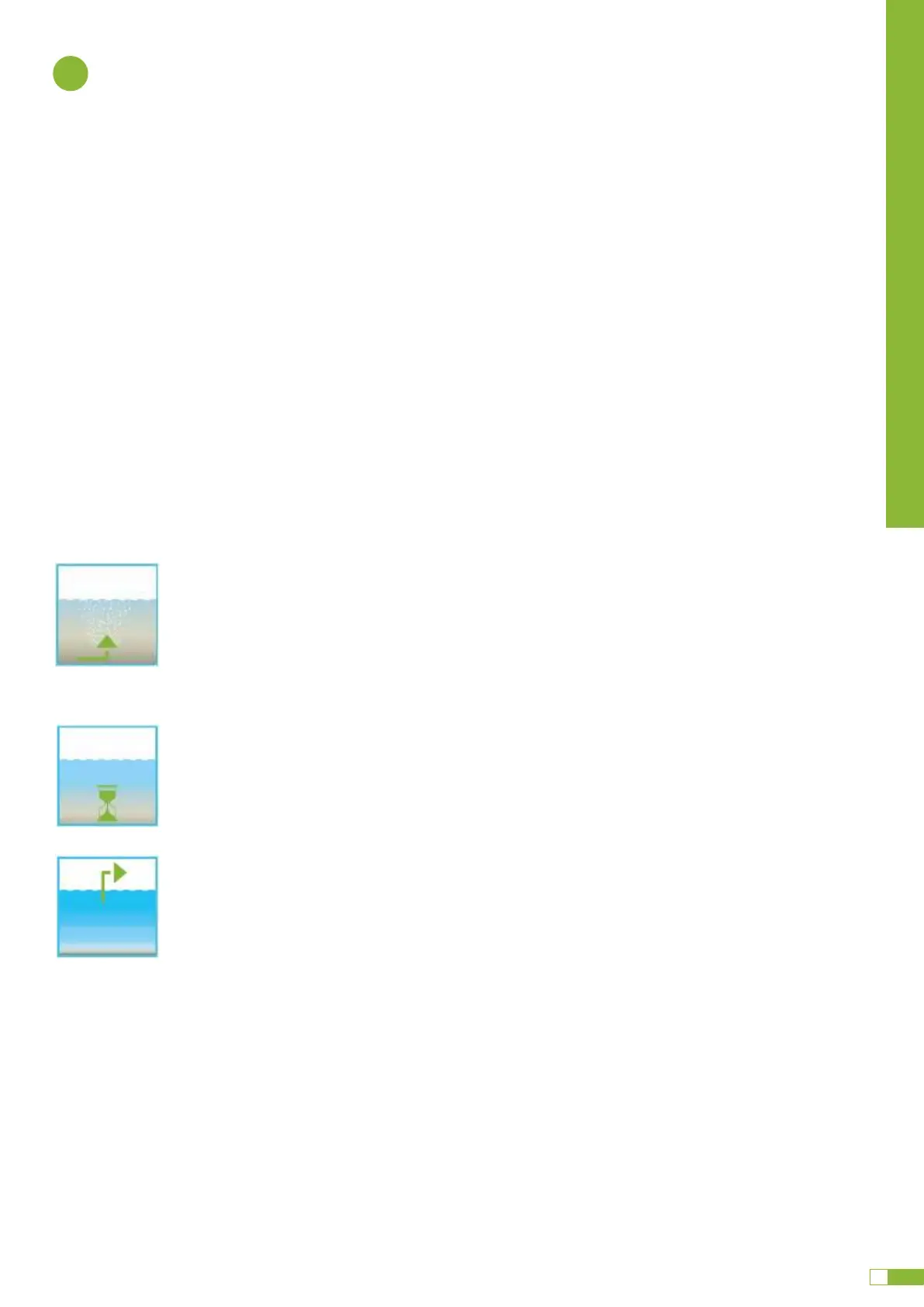

Step 1: Aeration
The wastewater is subjected directly to aerobic treatment for a fixed amount of time. On the one
hand the microorganisms (activated sludge) are supplied with the oxygen necessary for degradation;
on the other hand mixing is achieved as a result of pressure aeration. The air diuser of the system
is supplied with ambient air by a compressor. The aeration is intermittent, so as to allow targeted
wastewater treatment. Thus, dierent environmental conditions can be achieved.
Step 2: Settling
There is no aeration in the second phase. The activated sludge and the remaining settleable solids can
now settle by gravity. A clear water zone is created at the top and a layer of mud forms at the bottom.
Any floating sludge which might develop is located above the clear water zone.
Step 3: Clear Water Removal
The biologically treated wastewater (clear water) is extracted from the SBR stage. This is done by
pumping compressed air according to the mammoth pump principle (air lift pump). The air lift is
designed in such a way that no floating sludge which might develop is drained on the clear water layer.
A minimum water level in the system is maintained without additional components.
After execution of the third Step, the cleaning process begins again with step 1.
Two cycles are performed per day. The individual adaptation of switching times is possible on the part of the maintenance
company.
