Graff G-8006 - Flow rate information for 2-way valve WITHOUT Off Function; Flow rate information for 3-way valve WITHOUT Off Function

4
This faucet complies with NSF61/9, ASME/ANSI A112.18.1
and CSA B 125 Standards.
Este grifo se encuentra conforme con losestandares de NSF61/9,
de ASME/ANSI A112.18.1 y de CSA B 125.
Installation Instructions  Instrucciones de Instalación
THERMOSTATIC SET
CONJUNTO TERMOSTÁTICO
IOG 5013.20
90°
0°
90°
90 °
0°
90°

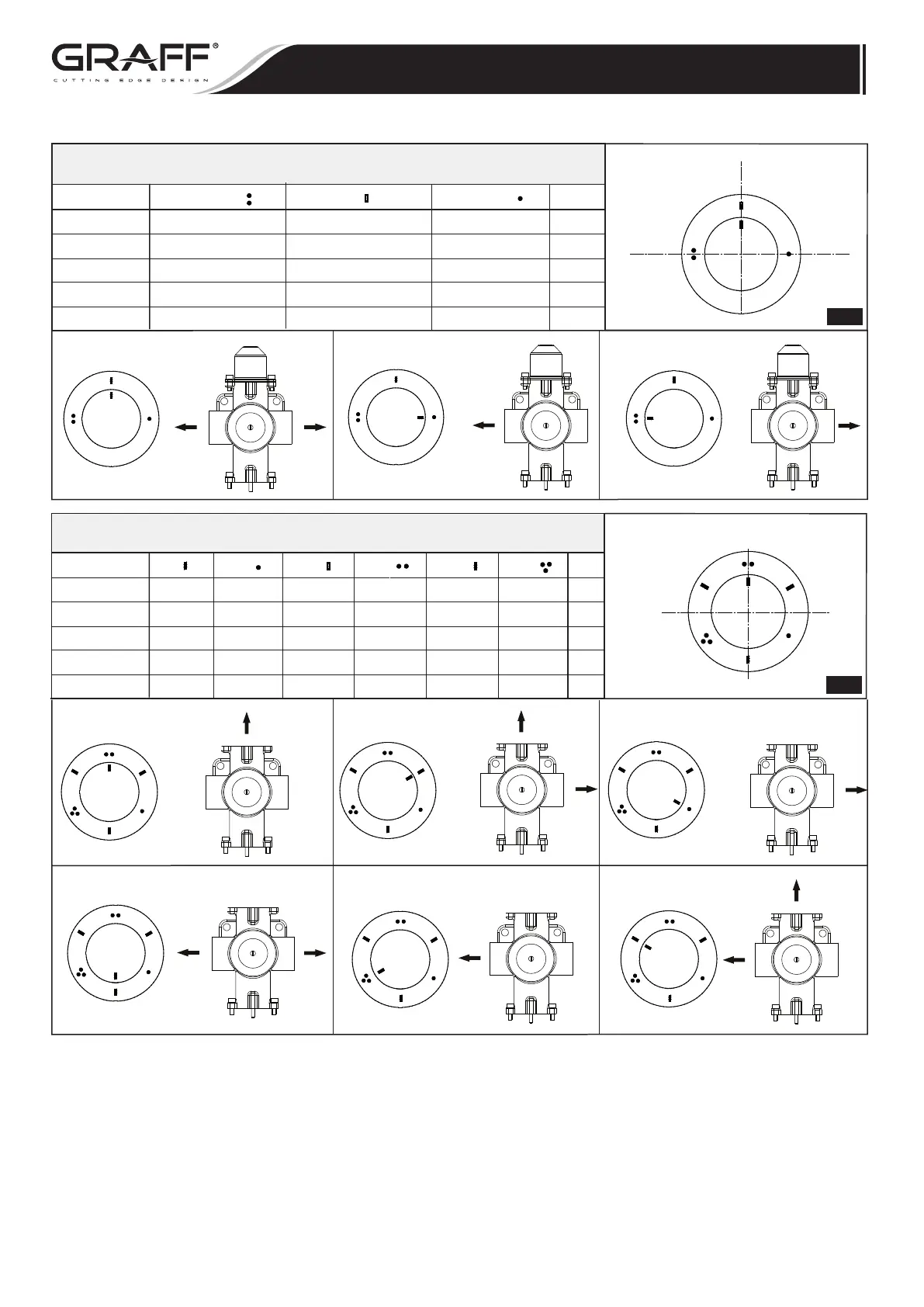

Flow rate information for 2-way valve WITHOUT Off Function
Información de caudal para válvula de 2 salidas SIN función de cierre
14,5 psi (1 bar)
29,0 psi (2 bar)
43,5 psi (3 bar)
58,0 psi (4 bar)
72,5 psi (5 bar)
6.28
8.45
10.30
11.81
13.08
6.66
8.98
10.88
12.42
13.69
6.26
8.40
10.22
11.76
13.02
GPM
GPM
GPM
GPM
GPM
D.1
0°
60°
120°
180°
300°
240°
0° 60° 120° 180°
Flow rate information for 3-way valve WITHOUT Off Function
Información de caudal para válvula de 3 salidas SIN función de cierre
14,5 psi (1 bar)
29,0 psi (2 bar)
43,5 psi (3 bar)
58,0 psi (4 bar)
72,5 psi (5 bar)
7.19
9.59
11.81
13.42
15
6.08
8.19
10.12
11.57
12.89
7.58
10.17
12.50
14.13
14.80
6.92
9.3
11.36
12.68
14
6.87
9.3
11.44
13.2
14.61
GPM
GPM
GPM
GPM
GPM
240° 300°
7.61
10.22
12.5
14.13
15.85
D.2
0°
60°
120°
180°
240°
300°
90 ° 90 °
0°
Rev. 3 October 2018
