5- Push the 3” Exhaust Pipe through the Wall Flange from the outside.
6- Apply a bead of High Temperature Silicone to the inside face of the 3” Exhaust Pipe and
securely fit to the 3” pipe of the stove.
7- Move the Grain Comfort into position connecting the adapter to the Wall Flange.
This completes the inside installation
8- From the outside, apply a bead of silicone to the inner face of the Wall Flange and screw

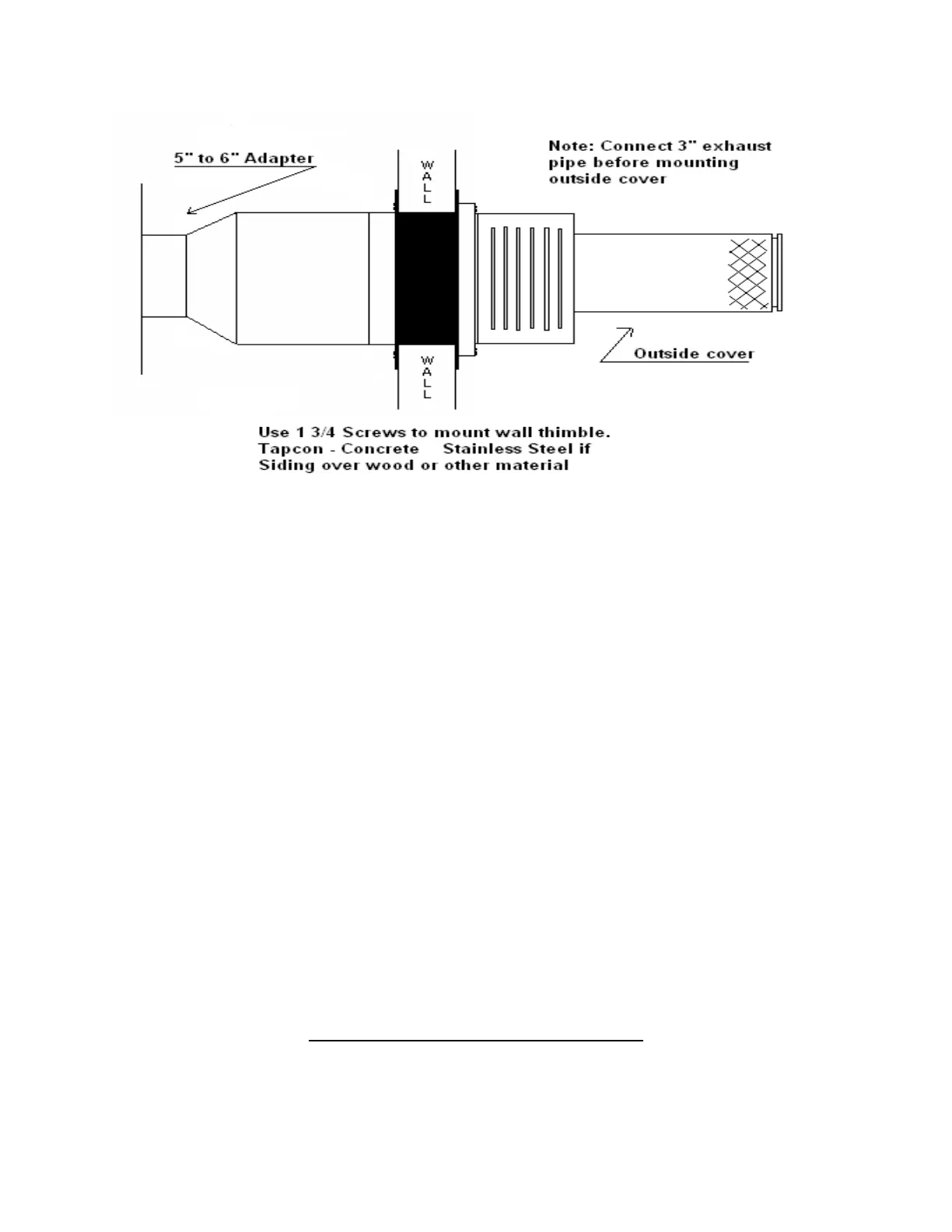

the Flange to the outside wall using appropriate fasteners as indicated in the drawing.
9- You may wish to caulk around the pipe, inside and outside the home, with RTV Silicone.
10- Tighten exhaust clamp located inside the outside Flange housing using screwdriver.
This completes the outside installation
CORNER INSTALLATION
9
