Grammer MSG 90.6PG - 3.5 Entire covering - removal and attachment

Repair Manual MSG 90.6PG Commercial Vehicles, Omnibuses – November 2017
Material no. 1153450_c
3.5 Entire covering – removal and attachment
Page 1 of 9

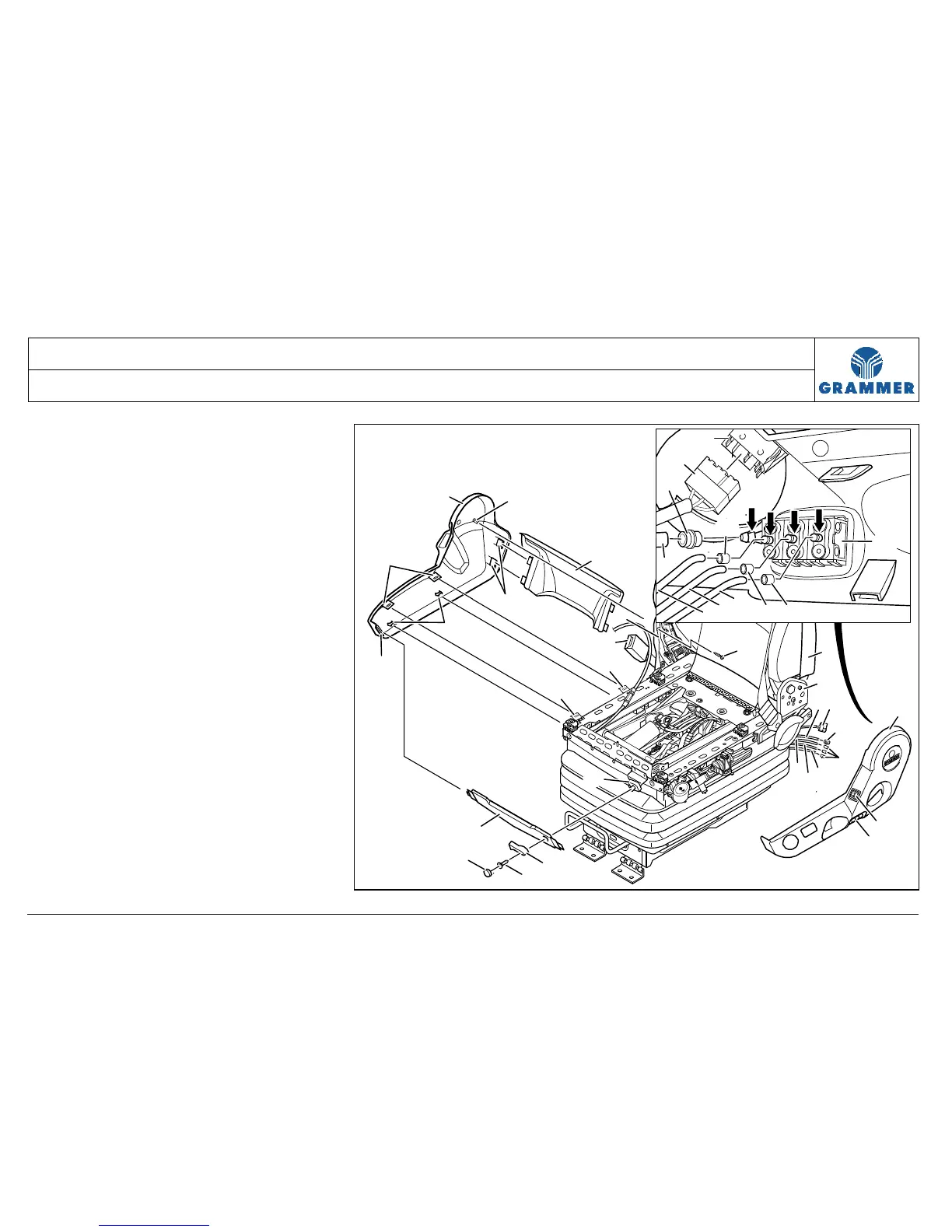

REMOVAL / INSTALLATION TABLE OF CONTENTS
(1) Covering, right-hand
(2) Rear covering
(3) Backrest
(4) Seat frame
(5) Round head screw ............... 1.7 Nm
(6) Left covering
(7) Plug (for cable for heater switch)
(8) Air hose for lateral support
adjustment
(9) Air hose of the upper lumbar
support
(10) Air hose of the bottom lumbar
support
(11) Hose nozzle
(12) Air hose for lumbar support and
lateral support adjustment
(13) Valve (for lumbar support and
lateral support adjustment)
(14) Support
1
18
17
25
2
24
16
21
20
19
10
7
23
22
11
11
6
12
9
11
13
8
27
6
23
7
4
3
4
5
12
22
1
1
8
9
10
13
14
26
14
15
