Grammer MSG 90.6PG - Page 107

Repair Manual MSG 90.6PG Commercial Vehicles, Omnibuses – November 2017
Material no. 1153450_c
3.5 Entire covering – removal and attachment
Page 2 of 9

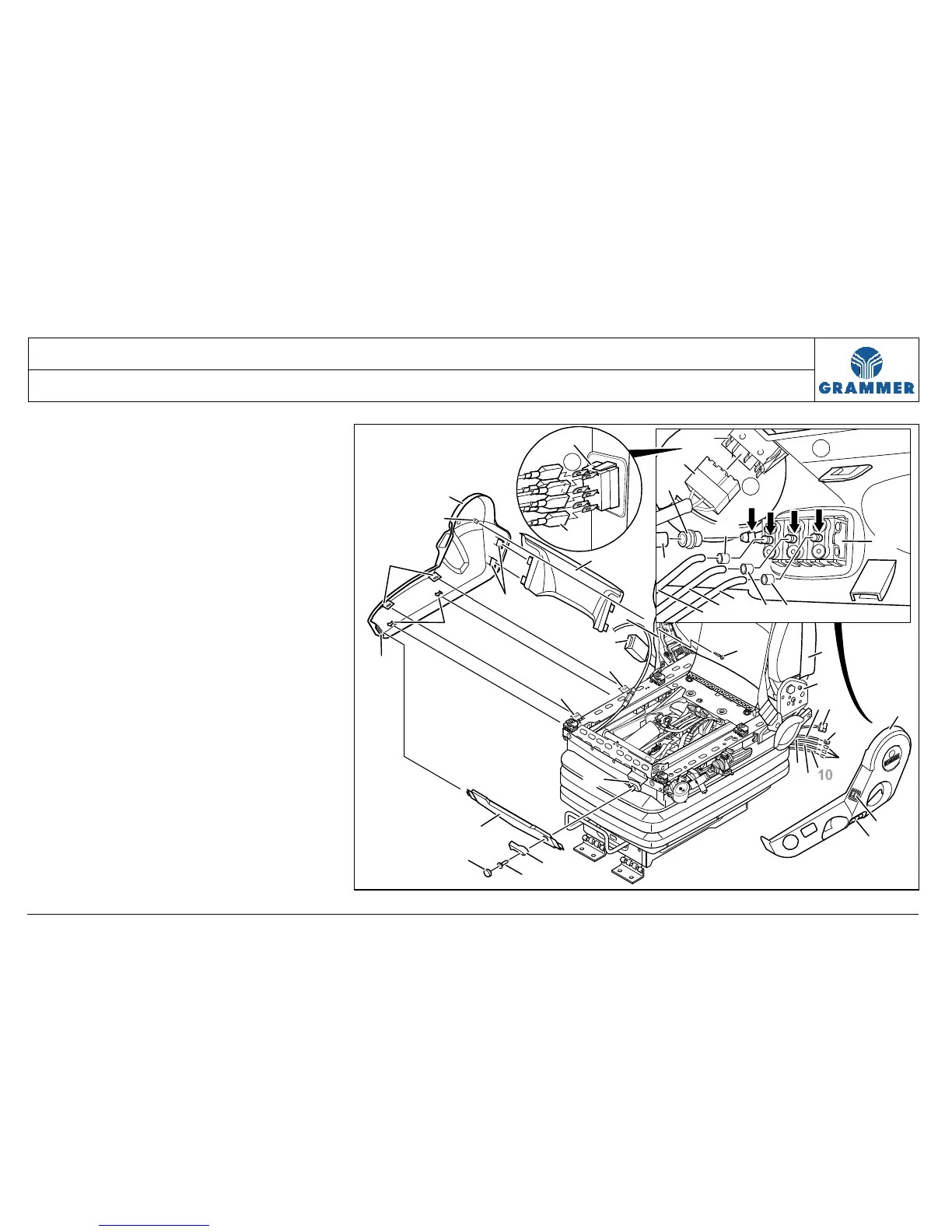

REMOVAL / INSTALLATION TABLE OF CONTENTS
(15) Belt buckle
(16) Covering, front
(17) Lower snap in hook
(18) Upper snap in hook
(19) Cover (delivery option)
(20) Cross-head screw
(delivery option) ....................... 3 Nm
(21) Lever for fore/aft isolator(delivery
option)
(22) Hose nozzle
(23) Heater switch
(24) Holder (pin) at the center
(25) Support at the rear
(26) Bracket at the front
(27) Eccentric
(28) Heater switch
(29) Plug (cable harness for heater
switch)
