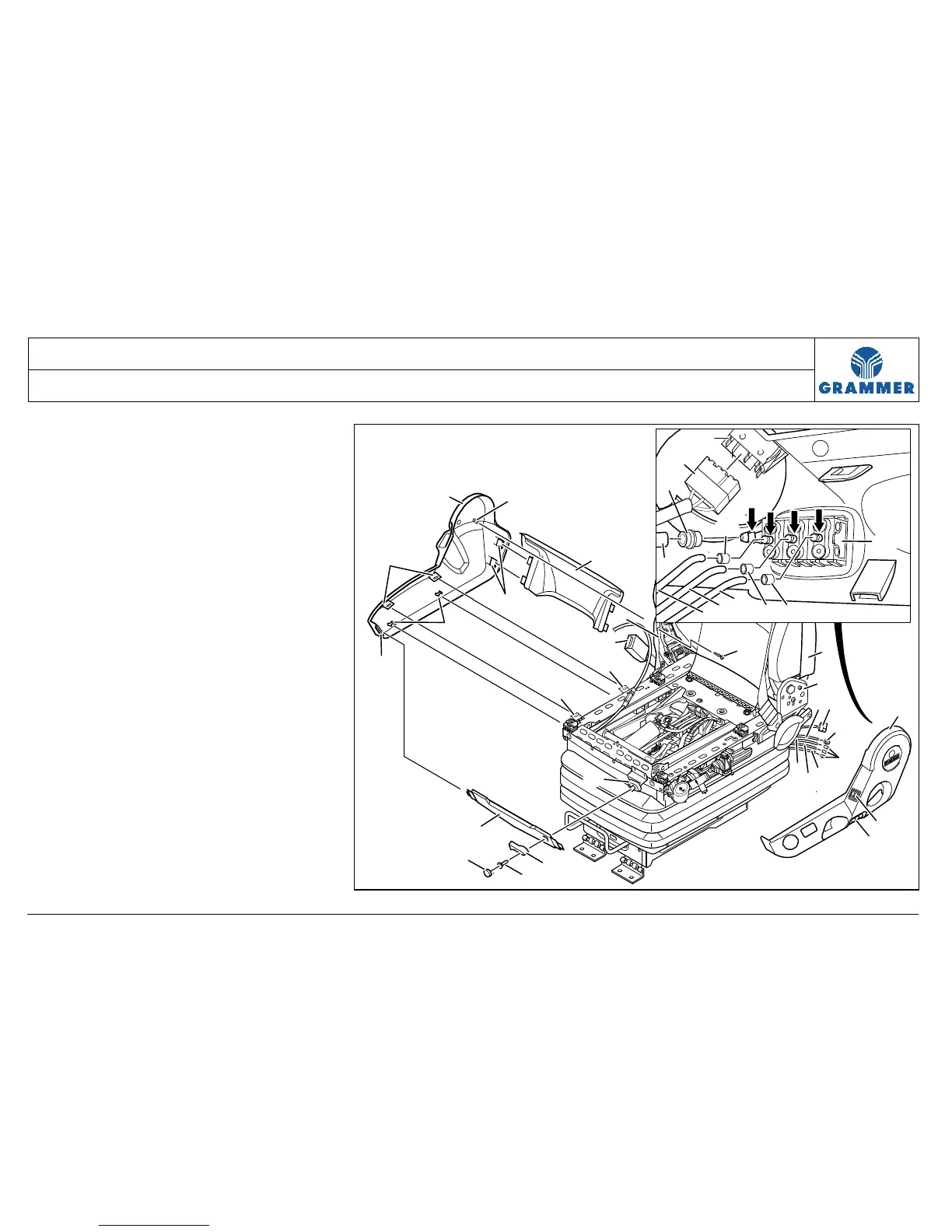

3.5 Entire covering – removal and attachment
Page 3 of 9
REMOVAL / INSTALLATION TABLE OF CONTENTS
1 Lift off the seat cushion in position for
repair (Chapter 3.1).
2 Remove the left covering in position
for repair (Chapter 3.4).
3 Seat with operator console and
armrest for electro-pneumatic
gearshift:
3.1 Remove the supporting structure for
electro-pneumatic gearshift (see
Chapter 3.25).
3.2 Unthread the cable for electro-
pneumatic gearshift (EPS) (see
Chapter 3.21).
