Grammer MSG 90.6PG - Page 109

Repair Manual MSG 90.6PG Commercial Vehicles, Omnibuses – November 2017
Material no. 1153450_c
3.5 Entire covering – removal and attachment
Page 4 of 9
REMOVAL / INSTALLATION TABLE OF CONTENTS
Removal and installation

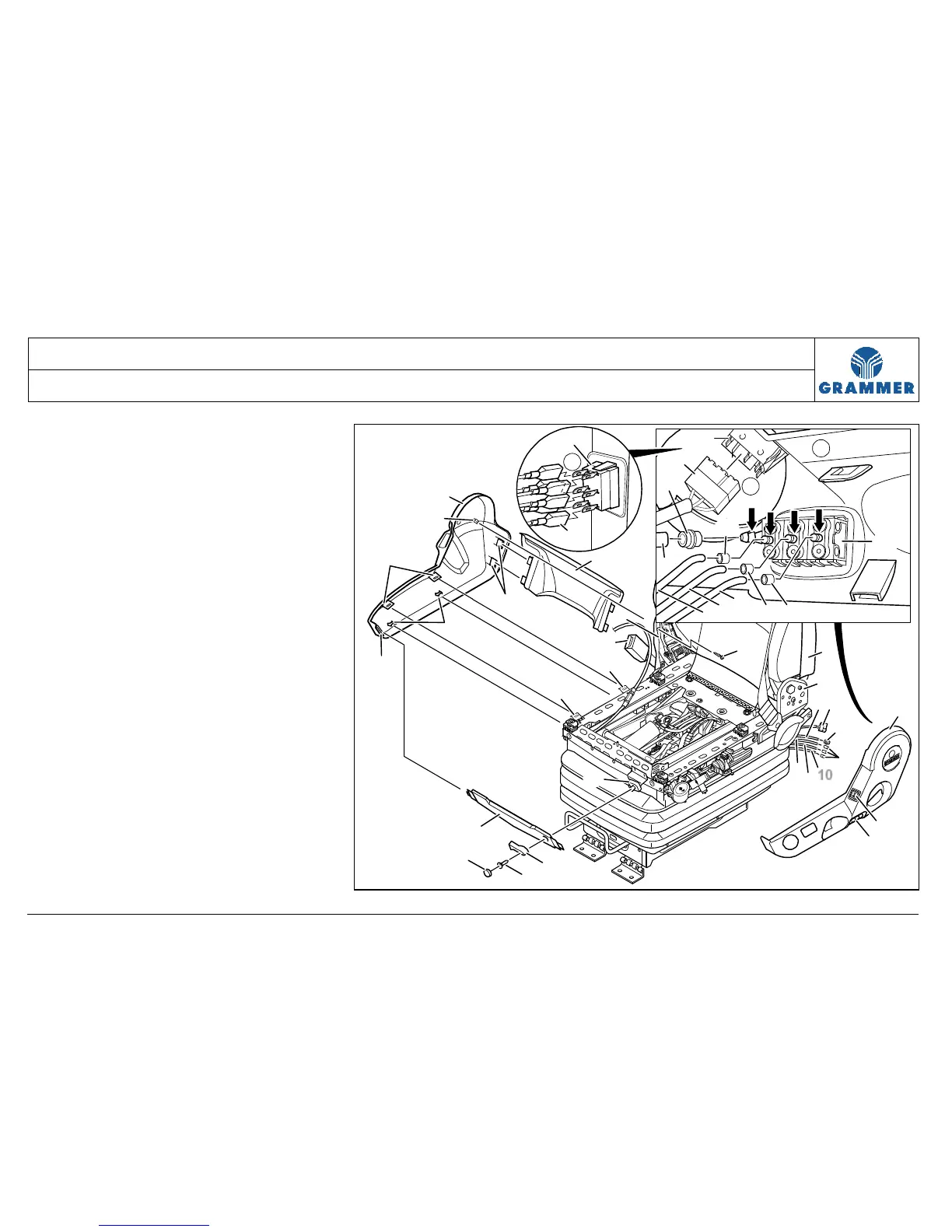

4 Seat without climate control
system:
Disconnect the electrical connection
(B) between the connector (7) and
heater switch (23).
5 Seat with climate control system:
Mark two electrical connections (N)
(note the color of the cables) and
disconnect the electrical connections
(N) between the six connectors (29)
and the heater switch (28).
Installation note:
Re-establish the electrical connections
(N) according to the markings.
