Grammer MSG 90.6PG - Page 110

Repair Manual MSG 90.6PG Commercial Vehicles, Omnibuses – November 2017
Material no. 1153450_c
3.5 Entire covering – removal and attachment
Page 5 of 9
REMOVAL / INSTALLATION TABLE OF CONTENTS

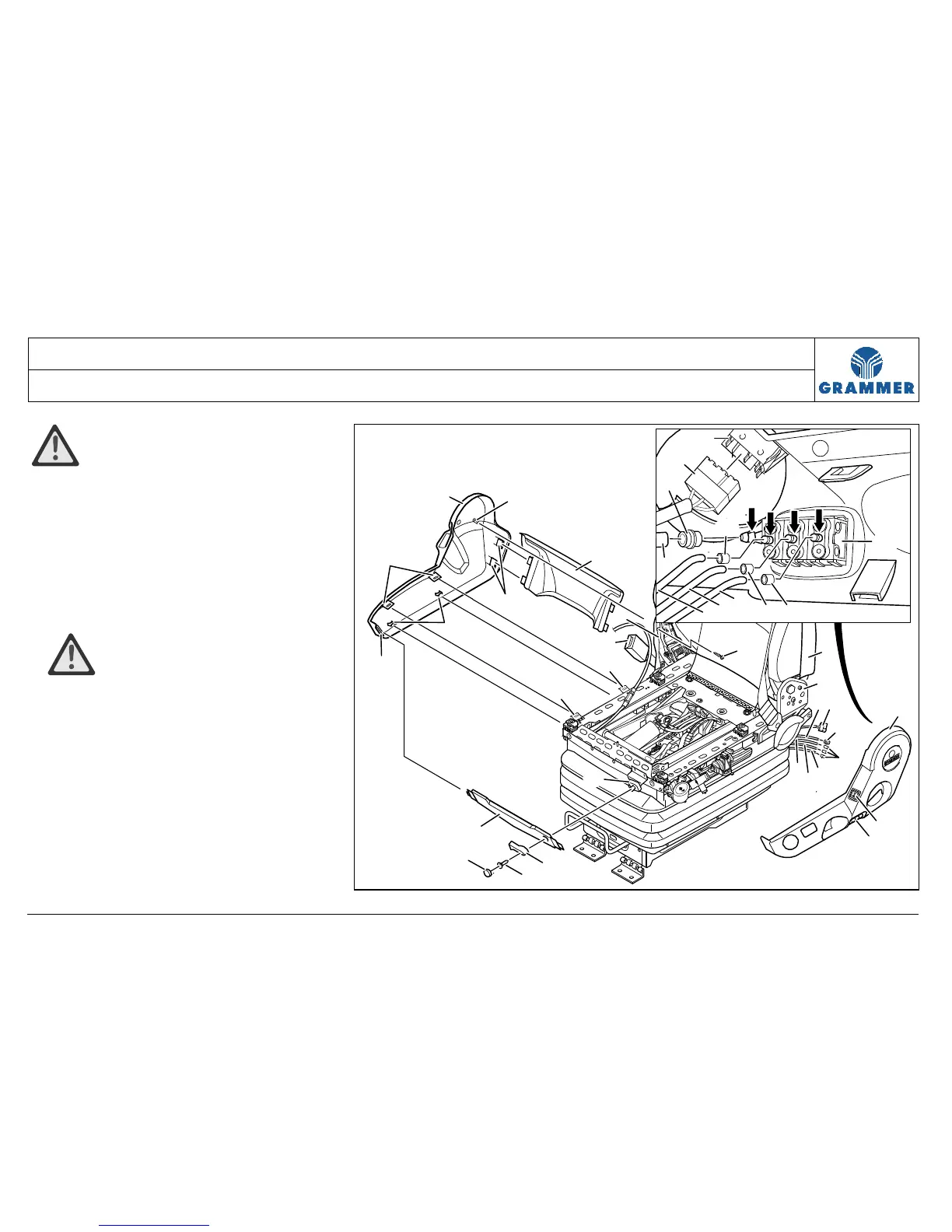

ATTENTION Hydrostatic test!
The hydraulic test of the seat should be
performed after connecting the air hoses
(8, 9, 10, 12).
6 Remove three hose clamps (11) at the
air hoses (8, 9, 10) and one hose
clamp (22) at the air hose (12) and
push towards the back.
7 ATTENTION Damage!
Do not damage air hoses (8, 9,
10, 12) and connections (arrows) of
the valve (13). Do not use a
screwdriver, for example, or a similar
tool to lift off the air hoses (8, 9,
10, 12) at the connections (arrows)
of the valve (13).
