Repair Manual MSG 90.6PG Commercial Vehicles, Omnibuses – November 2017
Material no. 1153450_c
3.5 Entire covering – removal and attachment
Page 6 of 9
REMOVAL / INSTALLATION TABLE OF CONTENTS

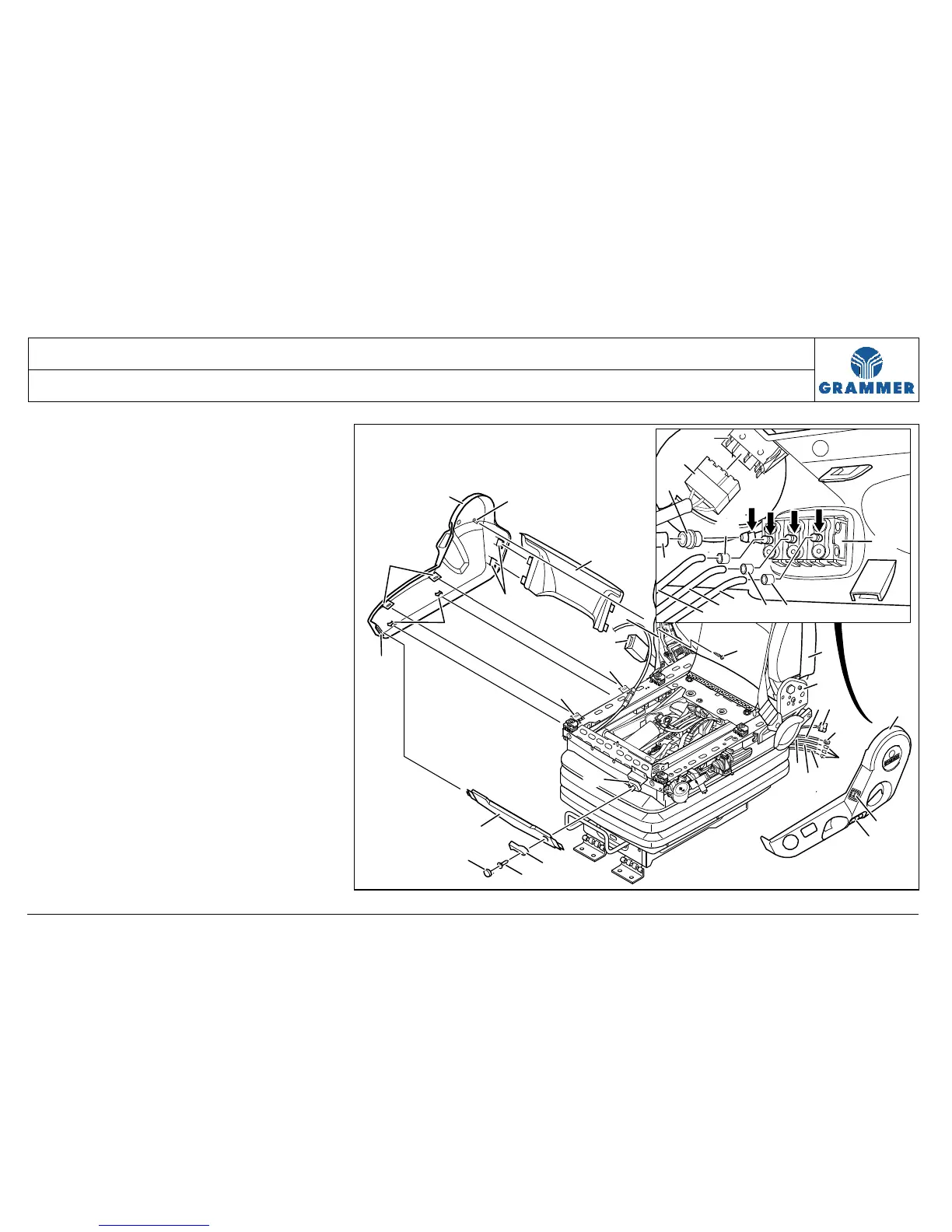

Mark the air hoses (8, 9, 10, 12) and
cut off with a sharp knife in a clean
and straight way directly behind the
connections (arrows) of the valve (13).
Installation notes:
• Install the air hoses (8, 9, 10, 12)
according to the marking.
• Push the air hoses (8, 9, 10, 12)
completely to the connections
(arrows) of the valve (13).
• When attaching the new left
covering (6), the valves (13) and the
heater switch (23) should be adapted.
Notes:
• For easier removal, carefully slit the
air hose ends at the connections
(arrows) of the valve (13) with a sharp
knife.
• The air hoses (8, 9, 10, 12) can be
cut off only once.
• After cutting, mark the air hoses
(8, 9, 10, 12) in order not to cut them
several times.
1
18
17
25
2
24
16
21
20
19
10
7
23
22
11
11
6
12
9
11
13
8
27
6
23
7
4
3
4
5
12
22
1
1
8
9
10
13
14
26
14
15
