Repair Manual MSG 90.6PG Commercial Vehicles, Omnibuses – November 2017
Material no. 1153450_c

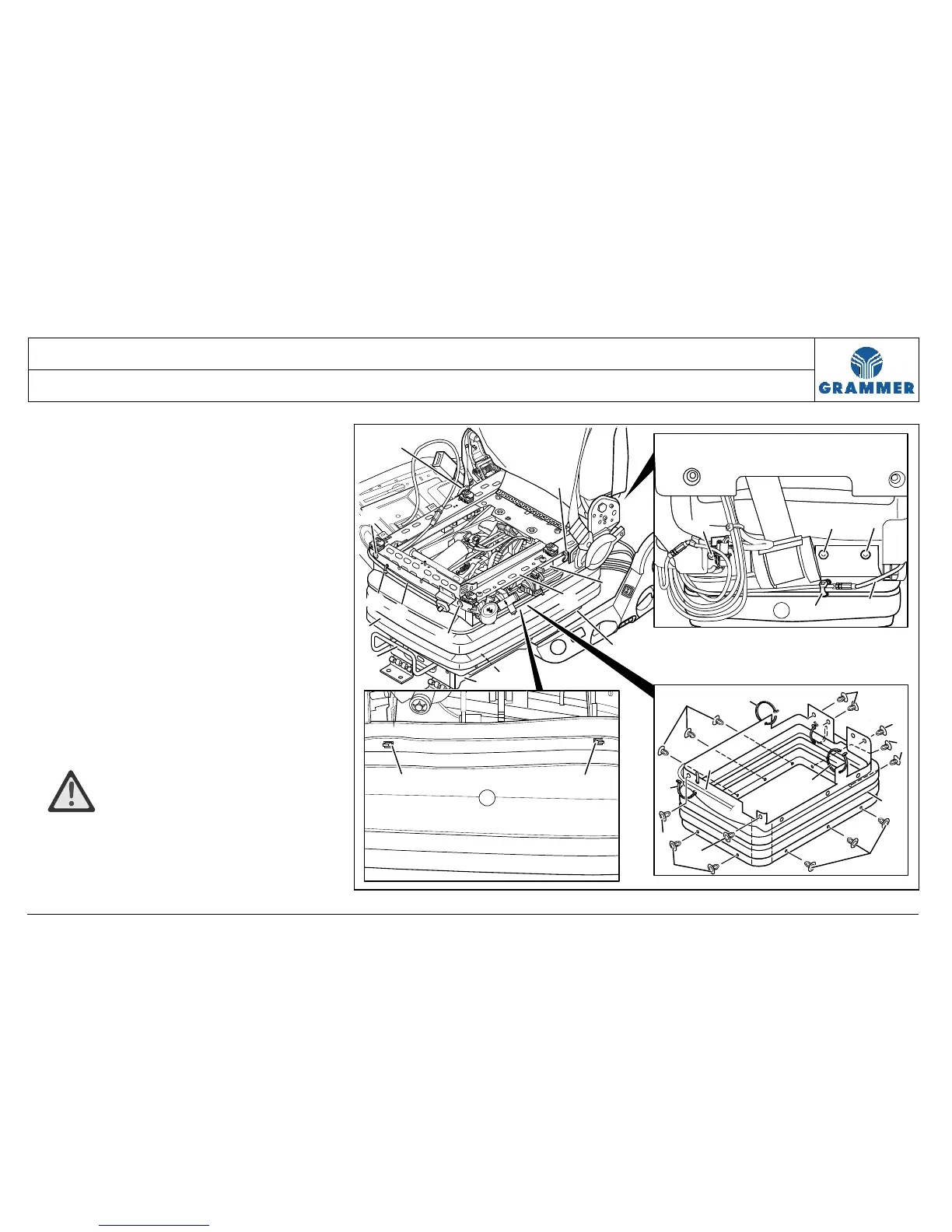

3.6 Bellows – removal and installation
Page 3 of 5
4 Remove the entire covering
(Chapter 3.5).
Note:
The rear and front covering do not
need to be removed at the right
covering.
Removal and installation
5 Remove ten bellows pins (7) at the
lower suspension part (5).
6 Mark the point where the Bowden pull
wire for backrest adjustment (9) is
fastened to the rear of the bellows (1)
by means of cable ties (8) and remove
the cable ties (8).
Installation note:
ATTENTION Malfunction!
Loosely fix the Bowden pull wire (9) by
means of the cable tie (8) at the
marked point and make sure it is not
distorted.
10
7
11
7
12
3
1
6
4
5
14
2
7
7
7
7
7
7
1
12
7
7
10
11
10
1
1313
7
7
7
1
8
9
10
2175
