Repair Manual MSG 90.6PG Commercial Vehicles, Omnibuses – November 2017
Material no. 1153450_c

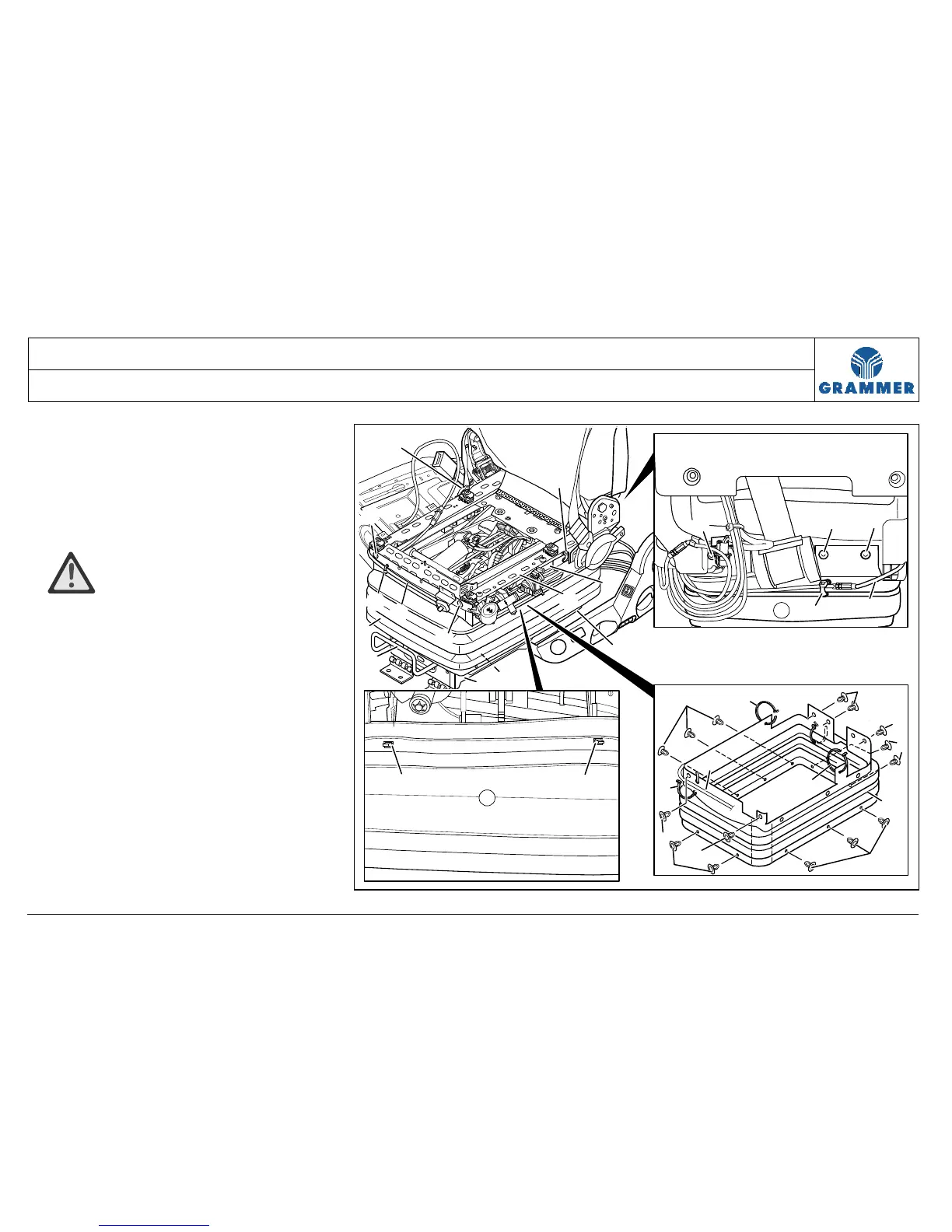

3.6 Bellows – removal and installation
Page 4 of 5
7 Seat with fore/aft isolator:
Mark the point where the Bowden pull
wire for the fore/aft isolator (12) is
fastened to the front of the bellows (1)
by means of cable ties (11) and
remove the cable ties (11).
Installation note:
ATTENTION Malfunction!
Loosely fix the Bowden pull wire (12)
by means of the cable tie (11) at the
marked point and make sure it is not
distorted.
8 Mark the points where the bellows (1)
is fastened to the right side of the seat
frame (3) and to the left side of the
handle rail (14) by means of two cable
ties (10) and remove the cable ties
(10).
9 Detach the bellows (1) at the
supports (13).
10
7
11
7
12
3
1
6
4
5
14
2
7
7
7
7
7
7
1
12
7
7
10
11
10
1
1313
7
7
7
1
8
9
10
2175
