Grammer MSG 90.6PG - Page 119

Repair Manual MSG 90.6PG Commercial Vehicles, Omnibuses – November 2017
Material no. 1153450_c
3.6 Bellows – removal and installation
Page 5 of 5
REMOVAL / INSTALLATION TABLE OF CONTENTS

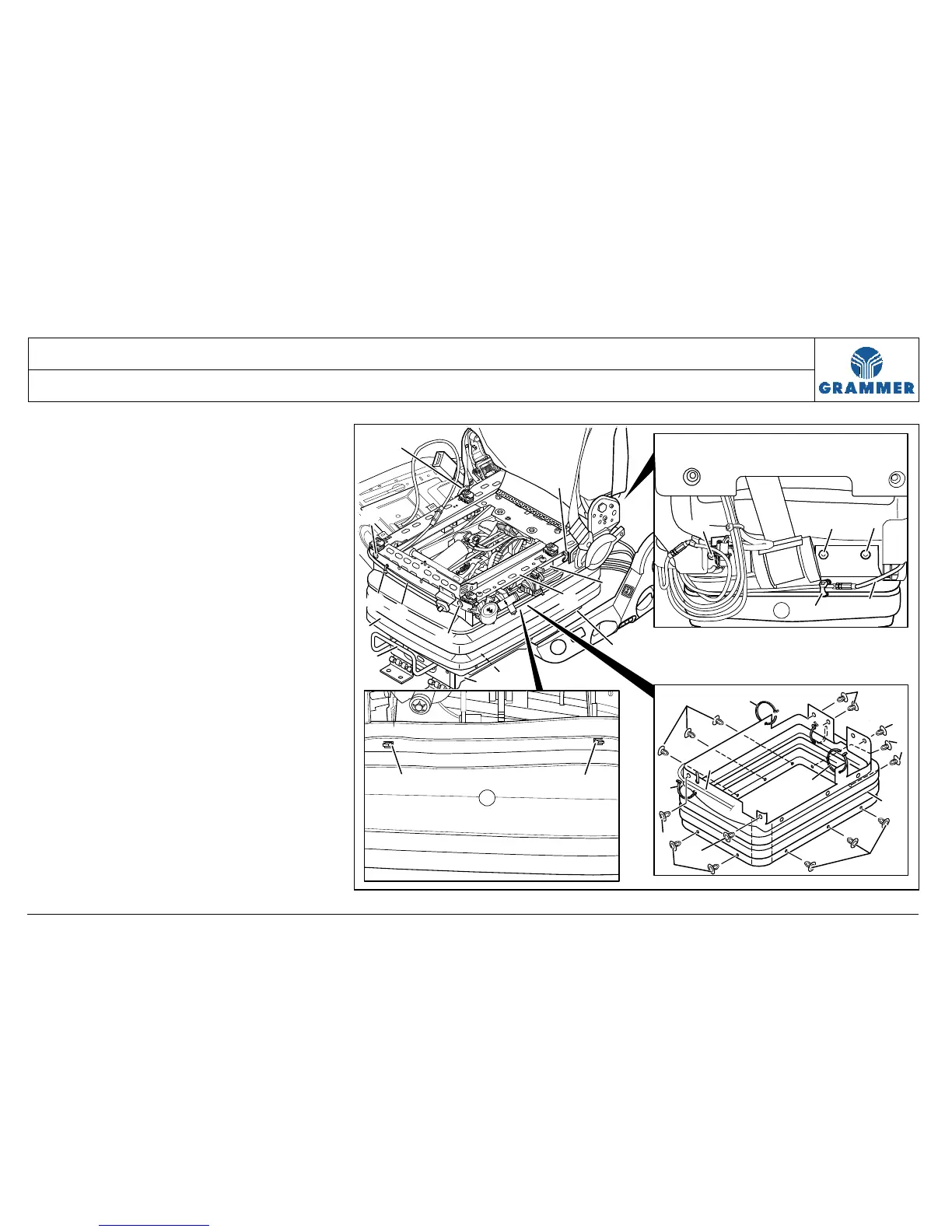

10 Remove five bellows pins (7) at the
seat frame (3).
11 Push the seat backwards over the
seat fore/aft adjustment (5) as far as
possible.
12 Pull the rear part of the bellows (1)
downwards over the lower
suspension part (4) and the locking
rail of the seat fore/aft adjustment
(5).
13 Push the seat forwards over the seat
fore/aft adjustment (5) as far as
possible.
14 Lift the front part of the bellows (1)
over the lever for seat fore/aft
adjustment (2) and remove it in
downward direction.
15 Re-install the components in the
reverse order of their removal.
10
7
11
7
12
3
1
6
4
5
14
2
7
7
7
7
7
7
1
12
7
7
10
11
10
1
1313
7
7
7
1
8
9
10
2175
