Grammer MSG 90.6PG - 3.7 Bowden pull wire and button for quick lowering of the seat - removal and installation

Repair Manual MSG 90.6PG Commercial Vehicles, Omnibuses – November 2017
Material no. 1153450_c
3.7 Bowden pull wire and button for quick lowering of the seat –
removal and installation
Page 1 of 6

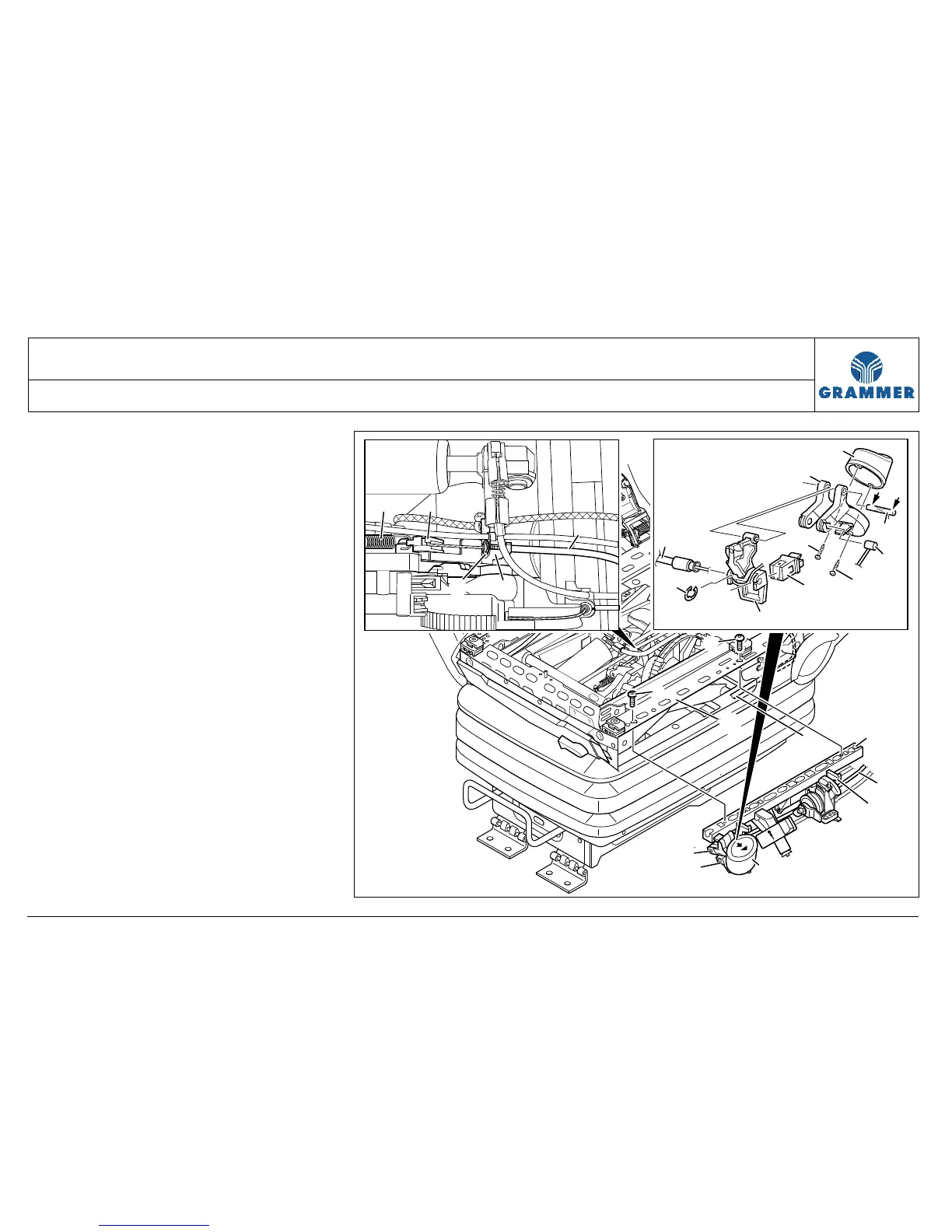

REMOVAL / INSTALLATION TABLE OF CONTENTS
(1) Bowden pull wire for quick lowering
of the seat
(2) Rounded head screw
(inner race) ........................... 3 Nm
(3) Handle rail
(4) Lever (for quick lowering of the seat)
(5) Holder (for quick lowering of the
seat)
(6) Button (for quick lowering of the
seat)
(7) Support (handle rail)
(8) Retracting spring
(9) Valve lever
(10) Lock washer
(11) Retainer (level control)
(12) Grooved pin ..................... to grease
(13) Lock washer
(14) Snap-in element
(15) Rounded head screw
(inner race) ............................. 3 Nm
(16) Seat frame
11
98
10
1
13
14
1
12
5
F
F
15
1
15
6
4
16
2
4
2
5
6
1
1
7
3
