Grammer MSG 90.6PG - Page 121

Repair Manual MSG 90.6PG Commercial Vehicles, Omnibuses – November 2017
Material no. 1153450_c
3.7 Bowden pull wire and button for quick lowering of the seat –
removal and installation
Page 2 of 6
REMOVAL / INSTALLATION TABLE OF CONTENTS
1 Lift off the seat cushion in position for
repair (Chapter 3.1).
2 Remove the left covering in position
for repair (Chapter 3.4).
3 Remove the bellows at the rear left of
the seat frame (see Chapter 3.6).

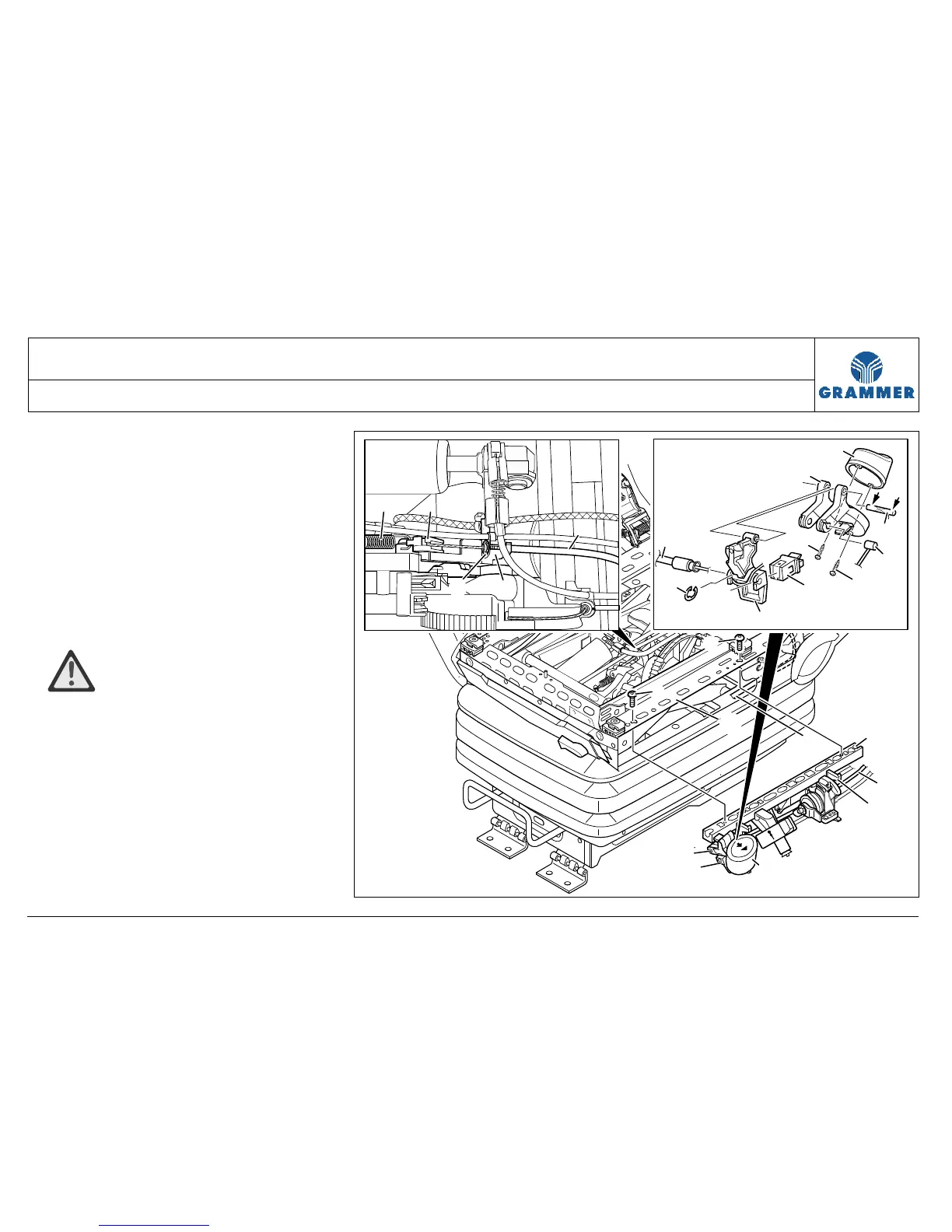

Removal and installation
4 ATTENTION Risk of crushing!
Bring the seat into the highest position
and secure the swinging structure to
the front plastic rollers of the lower
suspension part by means of
appropriate spacers.
