Grammer MSG 90.6PG - Page 184

Repair Manual MSG 90.6PG Commercial Vehicles, Omnibuses – November 2017
Material no. 1153450_c
3.18 Handle rail – removal and installation
Page 2 of 4
REMOVAL / INSTALLATION TABLE OF CONTENTS
Removal and installation
3 WARNING Risk of crushing!
Bring the seat into the highest position
and secure the swinging structure to
the front plastic rollers of the lower
suspension part by means of
appropriate spacers.

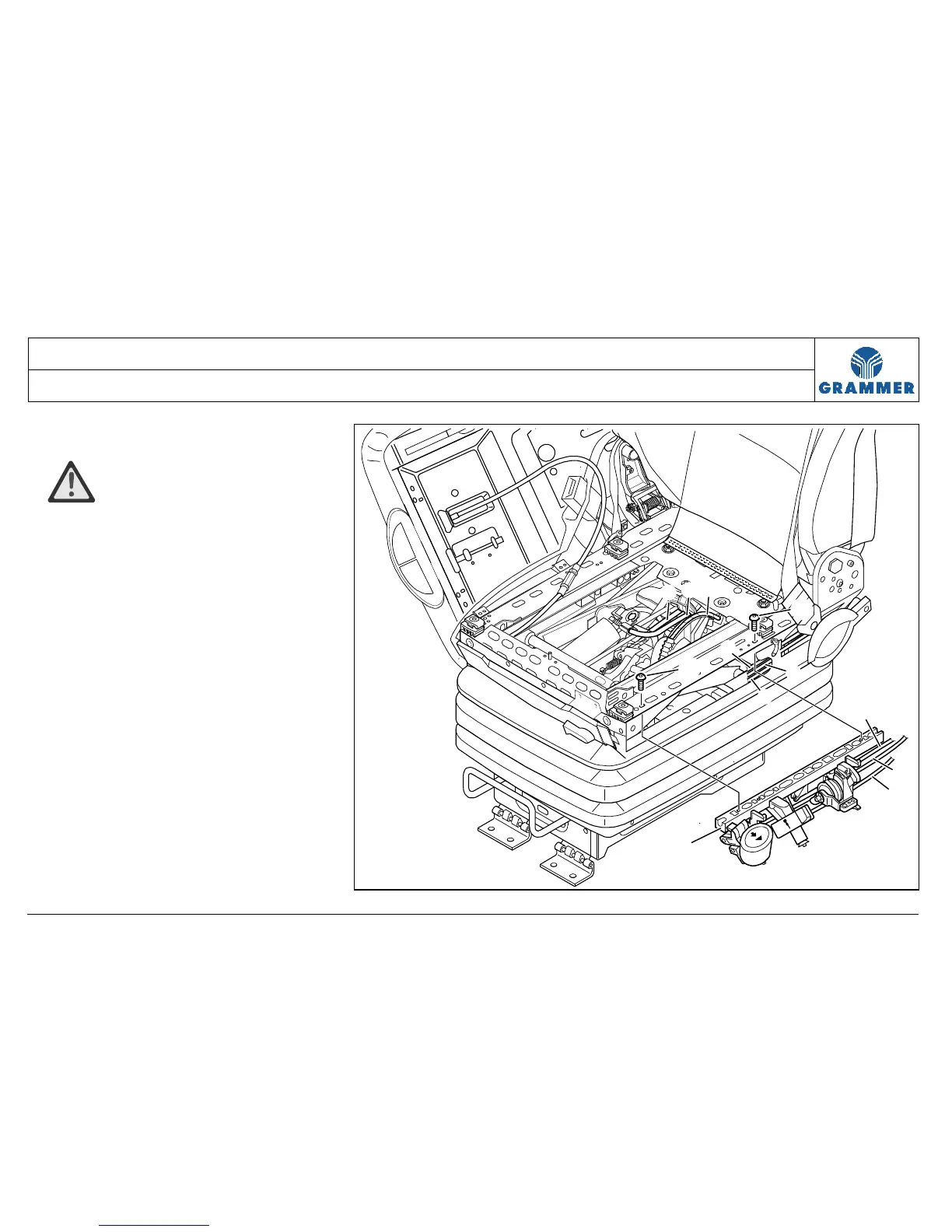

4 Unscrew two rounded head screws (2)
and lay the handle rail (1) down.
Installation note:
Rounded head screw (2), 3 Nm.
Note:
The Bowden pull wires for seat height
adjustment (3), quick lowering of the
seat (4) and vertical shock absorber
adjustment (5) must only be replaced, if
the respective Bowden pull wire (3, 4, 5)
is defective.
