3.21 Cable for electro-pneumatic gearshift (EPS) – removal and installation
Page 4 of 6
REMOVAL / INSTALLATION TABLE OF CONTENTS

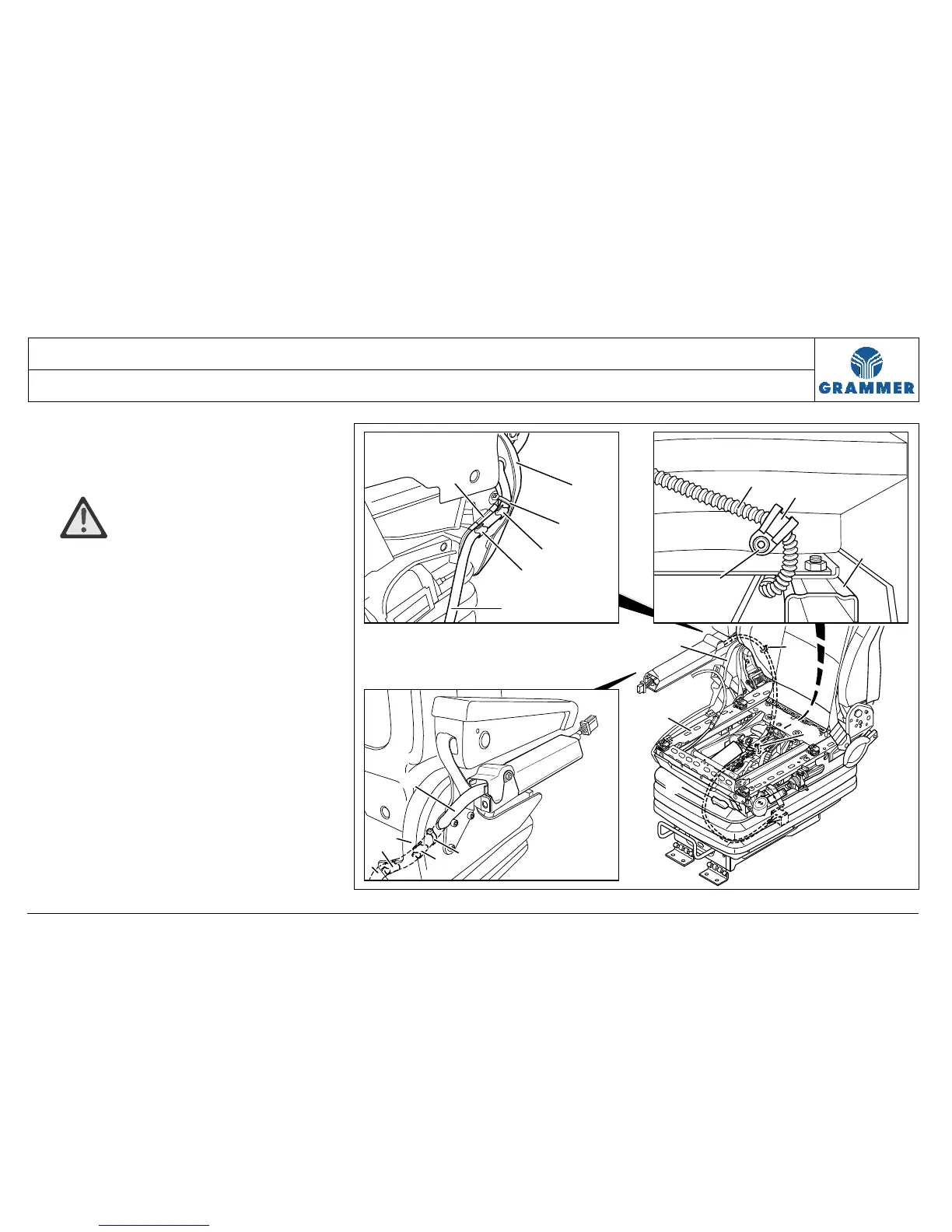

10 Mark the position of the clip (8) at
the EPS cable (1) and pull off the
clip (8) at the EPS cable (1).
Installation notes:
WARNING Malfunction!
• Attach the clip (8) at the new EPS
cable (1) according to the marking
and fasten it by means of a blind
rivet (7) in such a way that the EPS
cable cannot be squeezed, kinked or
distorted when the seat is moved
vertically or horizontally.
• Mount the clip (8) in such a way
that the EPS cable (1) can be guided
inwards parallel to the seat fore/aft
adjustment (9).
