Grammer MSG 90.6PG - Page 228

Repair Manual MSG 90.6PG Commercial Vehicles, Omnibuses – November 2017
Material no. 1153450_c

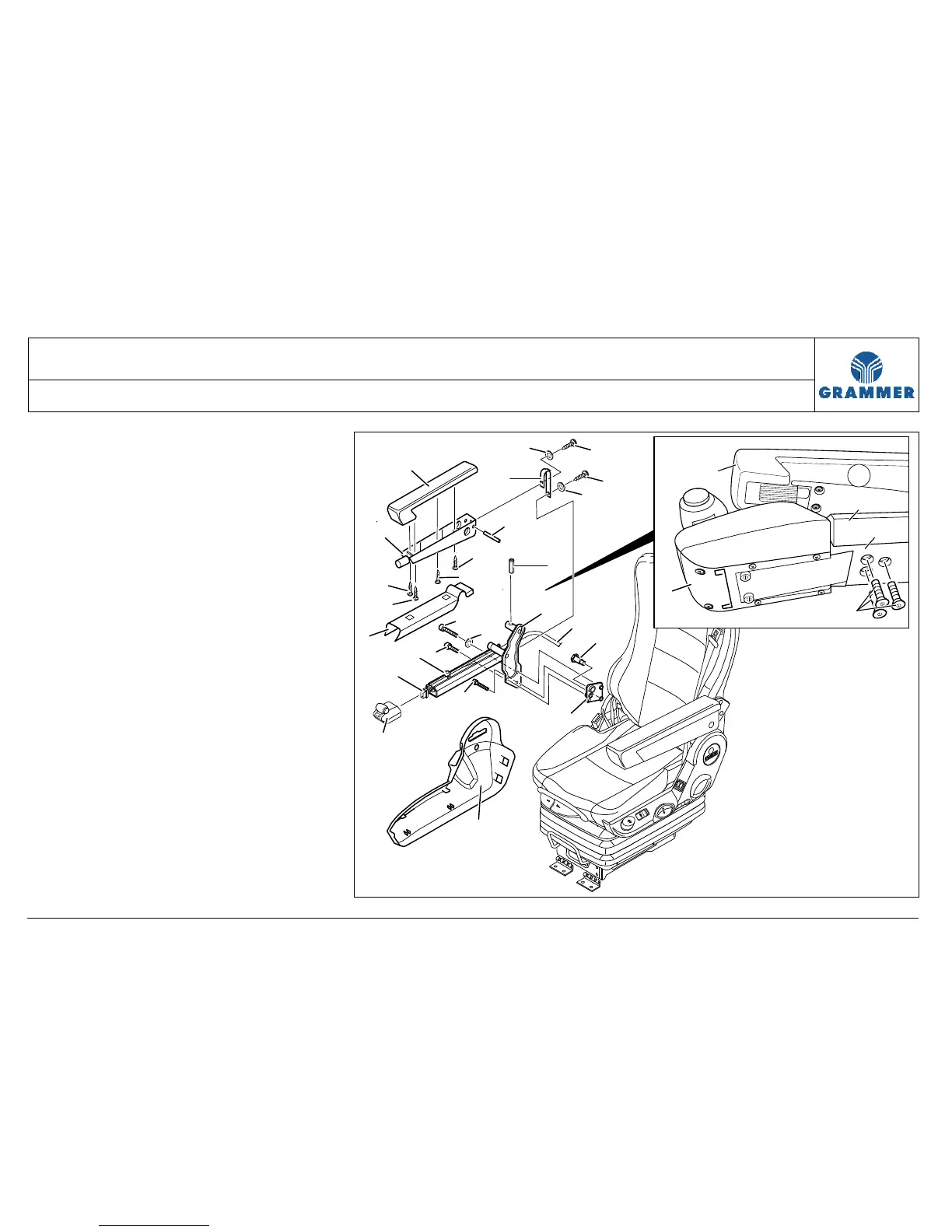

3.25 Operator console and armrest for electro-pneumatic gearshift (EPS) –
removal and installation (delivery option)
Page 2 of 5
REMOVAL / INSTALLATION TABLE OF CONTENTS
(12) Left armrest, bottom
(13) Right armrest, top
(14) Catch element
(15) Washer
(16) Rounded head screw
(inner race) ........................... 12 Nm
(17) Pin
(18) Clamping sleeve
(19) Washer
(20) EPS cable
(21) Right covering
(22) Countersunk screw
13
15
12
14
5
3
4
16
16
15
17
2
1
20
9
6
7
11
11
11
11
8
19
18
2222
10
21
22
4
5
13
12
3
