Grammer MSG 90.6PG - Page 230

Repair Manual MSG 90.6PG Commercial Vehicles, Omnibuses – November 2017
Material no. 1153450_c

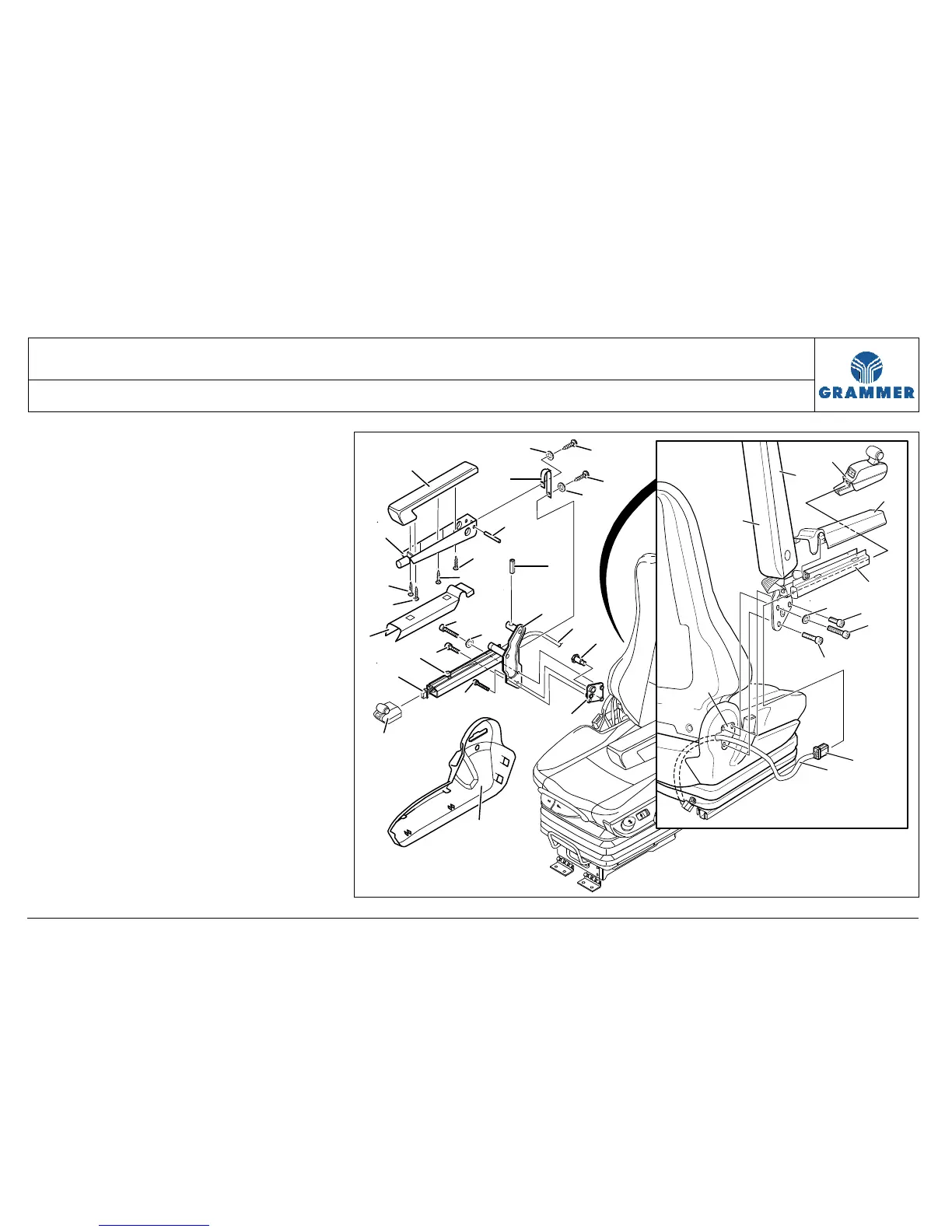

3.25 Operator console and armrest for electro-pneumatic gearshift (EPS) –
removal and installation (delivery option)
Page 4 of 5
REMOVAL / INSTALLATION TABLE OF CONTENTS
6 Unscrew the micro-encapsulated cap
screws (8, 9, 10) at the support for the
EPS console (1) and remove the EPS
console (4) as well as the washer
(19).
Installation note:
• Replace the micro-encapsulated cap
screws (8, 9) by new ones, 25 Nm.
• Replace the micro-encapsulated cap
screw (10) by a new one, 12 Nm.
7 Remove the catch element (14):
7.1 Unscrew two rounded head screws
(16) and remove two washers (15).
Installation note:
Rounded head screw (16), 12 Nm.
7.2 Mark the installation position of the
catch element (14) and remove the
catch element (14).
13
15
12
14
5
3
4
16
16
15
17
2
1
20
9
6
7
11
11
11
11
8
19
18
2223
10
21
3
20
6
8
4
5
1
3
13
12
10
9
19
