Grammer MSG 90.6PG - 3.30 Backrest - removal and installation

Repair Manual MSG 90.6PG Commercial Vehicles, Omnibuses – November 2017
Material no. 1153450_c

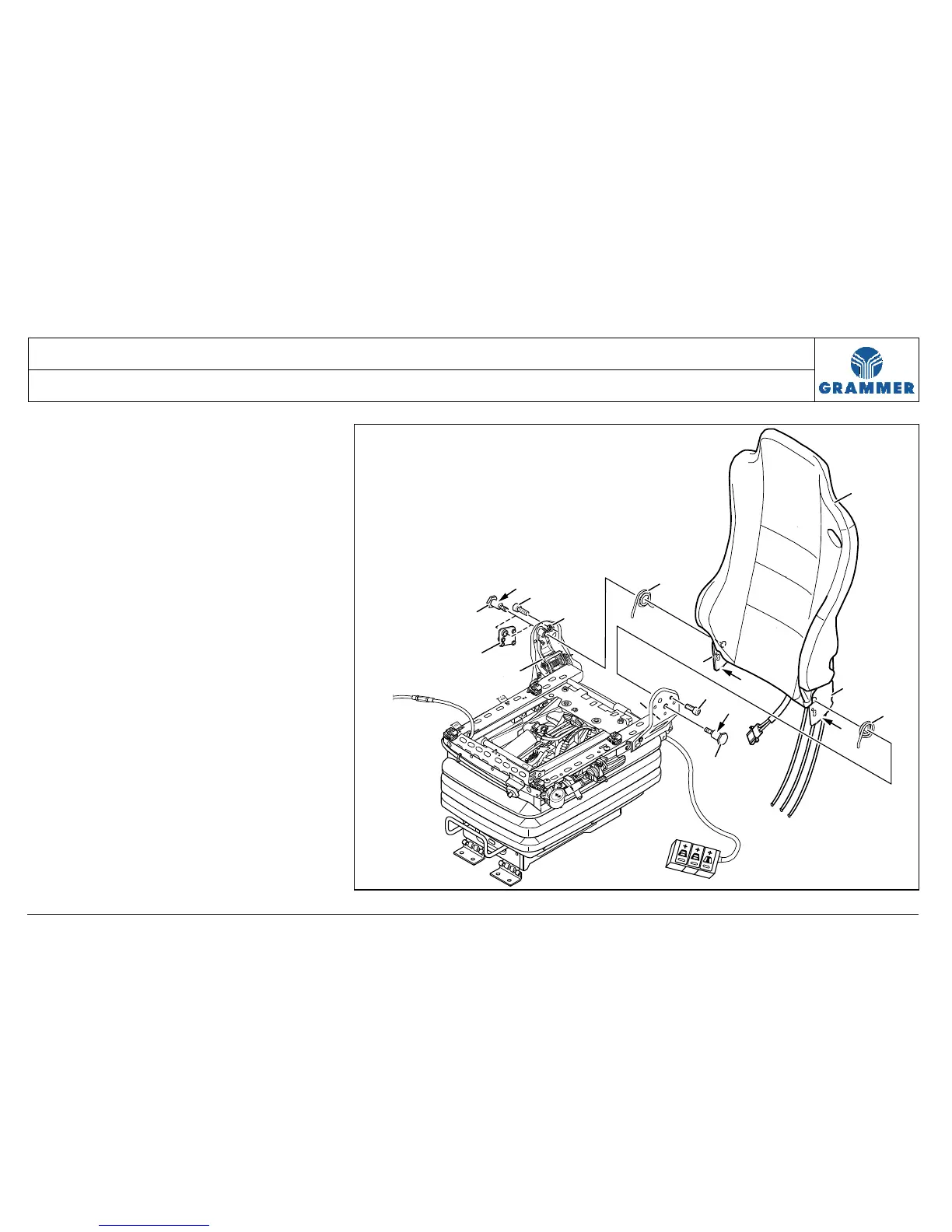

3.30 Backrest – removal and installation
Page 1 of 13
REMOVAL INSTALLATION TABLE OF CONTENTS
(1) Renew micro-encapsulated
hexagon bolt (right),
.............. to replace, grease, 47 Nm
(2) Bearing support (right-hand)
(3) Micro-encapsulated cap
screw .................. to replace, 25 Nm
(4) Hexagon nut (welded for end stop)
(5) Torsion spring (right)
(6) Leaf (tooth sheet)
(right) ............................... to grease
(7) Backrest
(8) Leaf (tooth sheet)
(left) ................................. to grease
(9) Torsion spring (left)
(10) Renew micro-encapsulated
hexagon bolt (left),
............... to replace, grease, 47 Nm
(11) Bearing support (left)
(12) Support for EPS console
10
F
F
F
F
2
12
3
4
5
9
8
7
11
1
6
3
2220
