Grammer MSG 90.6PG - Page 252

Repair Manual MSG 90.6PG Commercial Vehicles, Omnibuses – November 2017
Material no. 1153450_c

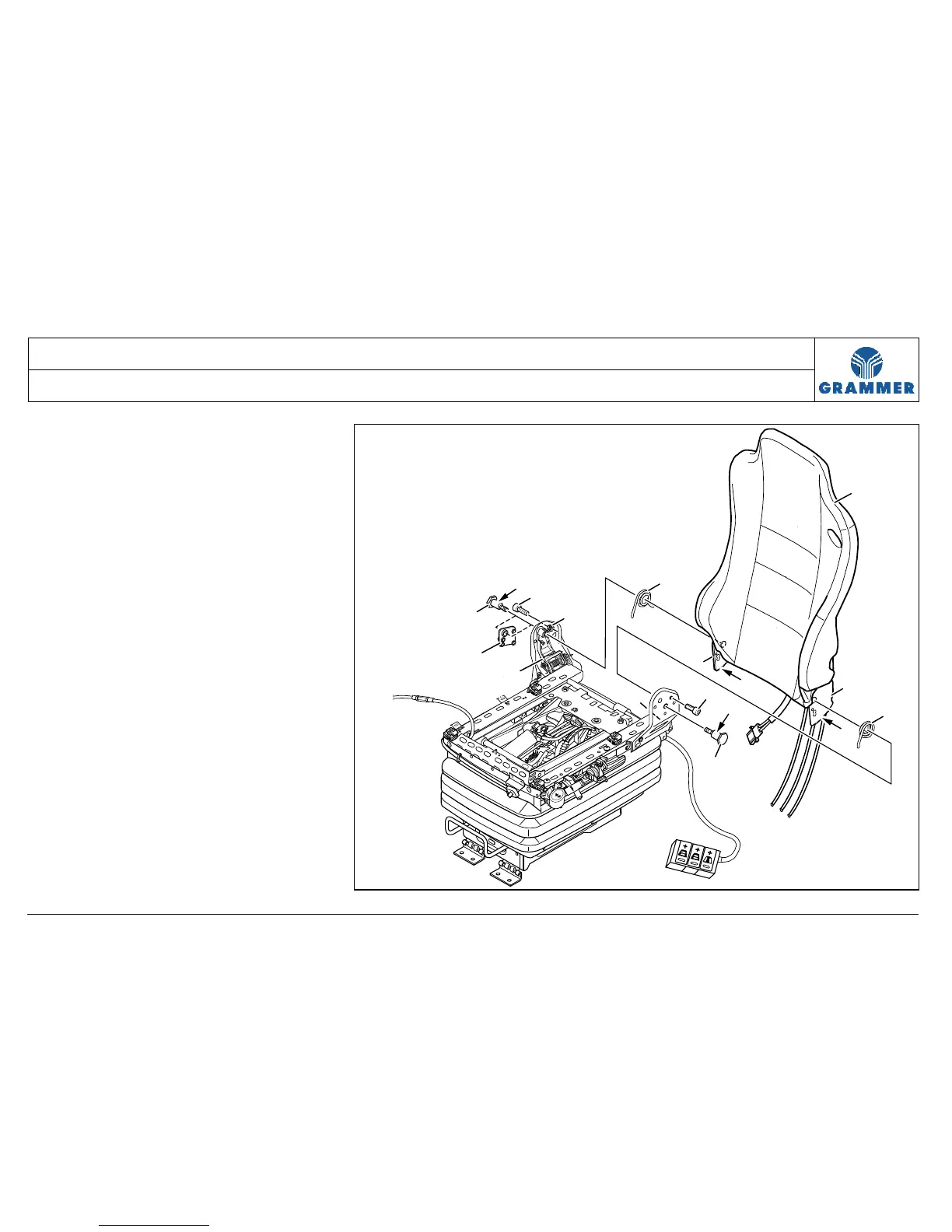

3.30 Backrest – removal and installation
Page 2 of 13
REMOVAL INSTALLATION TABLE OF CONTENTS
Note:
If the scope of delivery of spare parts
contain bolts which are not micro-
encapsulated, a suitable threadlocking
compound (e. g. LOCTITE) should be
used.
1 Lift off the seat cushion in position for
repair (Chapter 3.1).
2 Seat with operator console and
armrest for electro-pneumatic
gearshift:
Remove the supporting structure for
electro-pneumatic gearshift (EPS)
(see Chapter 3.25).
3 Seat with armrests:
Remove the armrests (Chapter 3.24).
10
F
F
F
F
2
12
3
4
5
9
8
7
11
1
6
3
2220
