Grammer MSG 90.6PG - Page 287

Repair Manual MSG 90.6PG Commercial Vehicles, Omnibuses – November 2017
Material no. 1153450_c
3.32 Bearing support with backrest locking mechanism and hook-in
function – removal and installation
Page 12 of 14
REMOVAL INSTALLATION TABLE OF CONTENTS

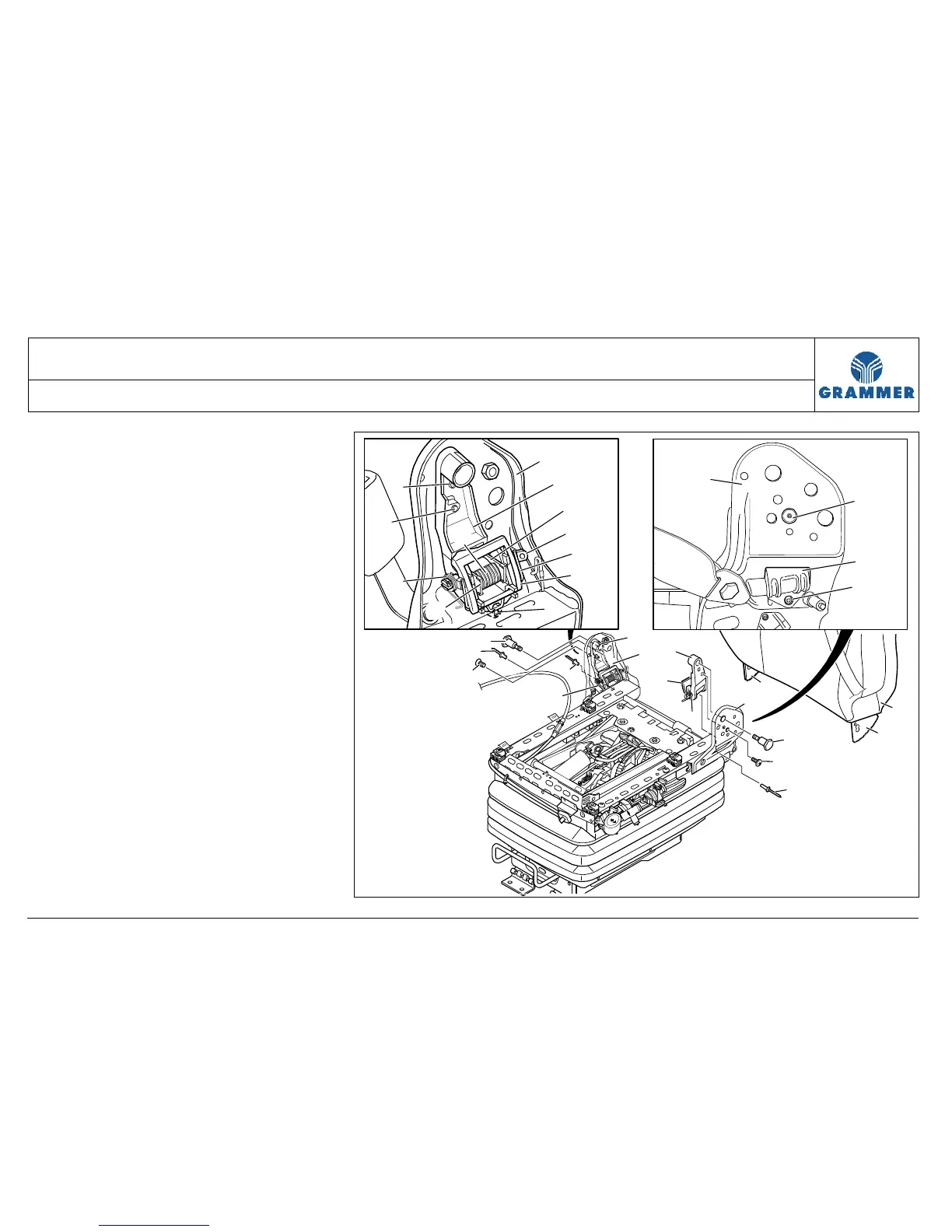

3 Insert the right and left bearing
supports (1, 2) into the right and left
side of the seat frame (3, 9) and
fasten them by means of hexagon
bolts (6) in installation position for
adjustment.
Note:
The retaining springs (7, 8) must lie
flat against the right and left side of
the seat frame (3, 9) with initial
tension.
4 Loosely screw the right and left
bearing support (1, 2) with rounded
head screws (4, 11).
5 Fasten the right bearing support (1)
with two blind rivets (5) on the right of
the seat frame (3) (fixed bearing).
