Grammer MSG 90.6PG - Page 322

Repair Manual MSG 90.6PG Commercial Vehicles, Omnibuses – November 2017
Material no. 1153450_c
3.38 Level control – removal and installation
Page 5 of 6
REMOVAL / INSTALLATION TABLE OF CONTENTS
Removal and installation
12 WARNING Risk of crushing!
Bring the seat into the highest
position and secure the swinging
structure to the front plastic rollers of
the lower suspension part by means
of appropriate spacers.
13 WARNING The pressure in
the pneumatic system might cause
injury!
The pneumatic system is to be
disconnected from the air supply
before removing the level control (1).

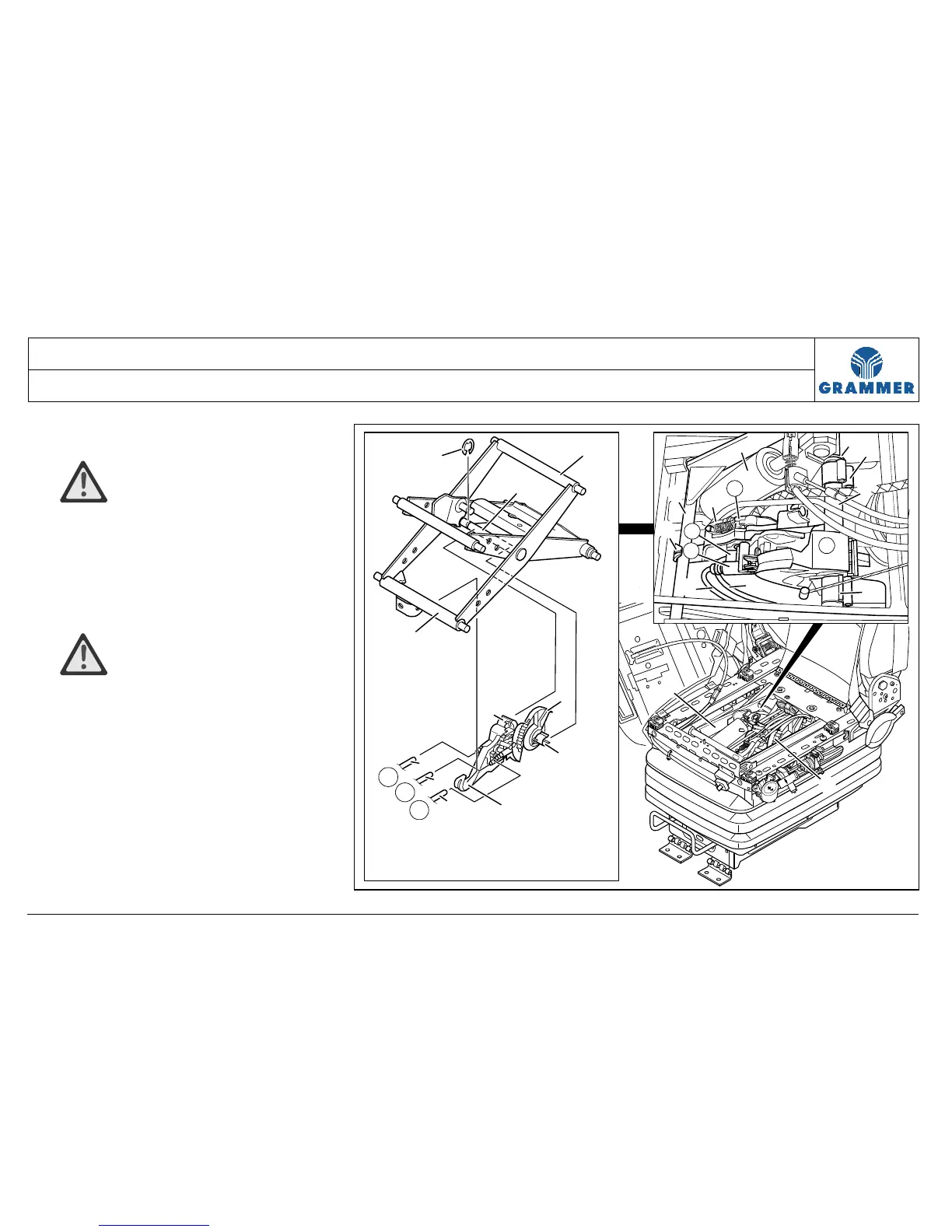

14 Loosen the lock washer (3) at the
centre axle (4) of the swinging
structure (2).
