Grammer MSG 90.6PG - Page 330

Repair Manual MSG 90.6PG Commercial Vehicles, Omnibuses – November 2017
Material no. 1153450_c

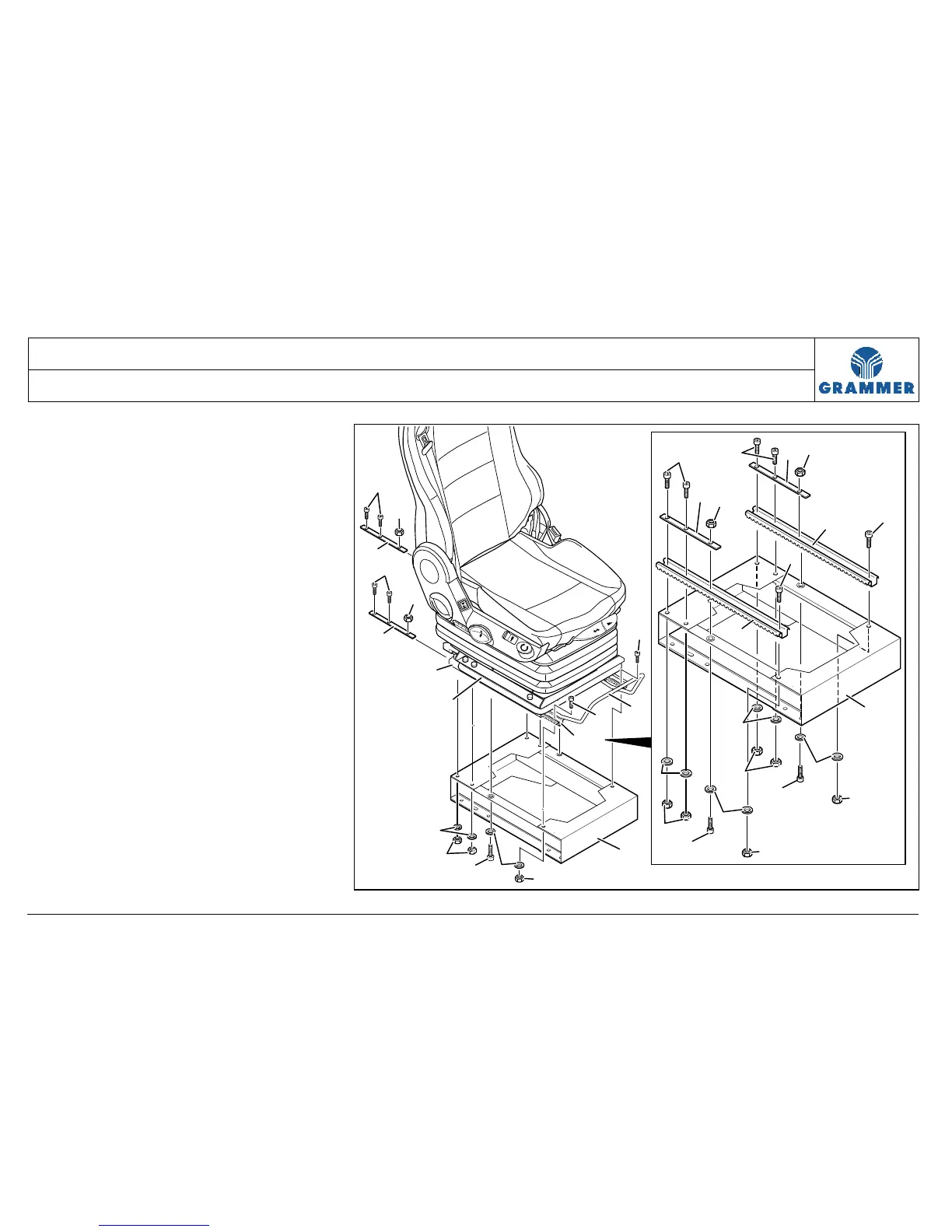

3.39.3 Supporting structure – removal and installation (bus seat)
Page 1 of 3
REMOVAL / INSTALLATION TABLE OF CONTENTS
(1) Supporting structure
Note:
Size and shape of the supporting
structure (1) might differ depending
on the design or model of the seat.
(2) Swivel
(3) Lever for seat fore/aft adjustment
(4) Seat fore/aft adjustment
(5) Plate with mounting holes
(6) Micro-encapsulated cap
screw .................. to replace, 25 Nm
(7) Hexagon nut
(8) Washer
(9) Micro-encapsulated cap
screw .................. to replace, 25 Nm
(10) Locking rail
