Grammer MSG 90.6PG - Page 331

Repair Manual MSG 90.6PG Commercial Vehicles, Omnibuses – November 2017
Material no. 1153450_c
3.39.3 Supporting structure – removal and installation (bus seat)
Page 2 of 3
REMOVAL / INSTALLATION TABLE OF CONTENTS
Removal and installation

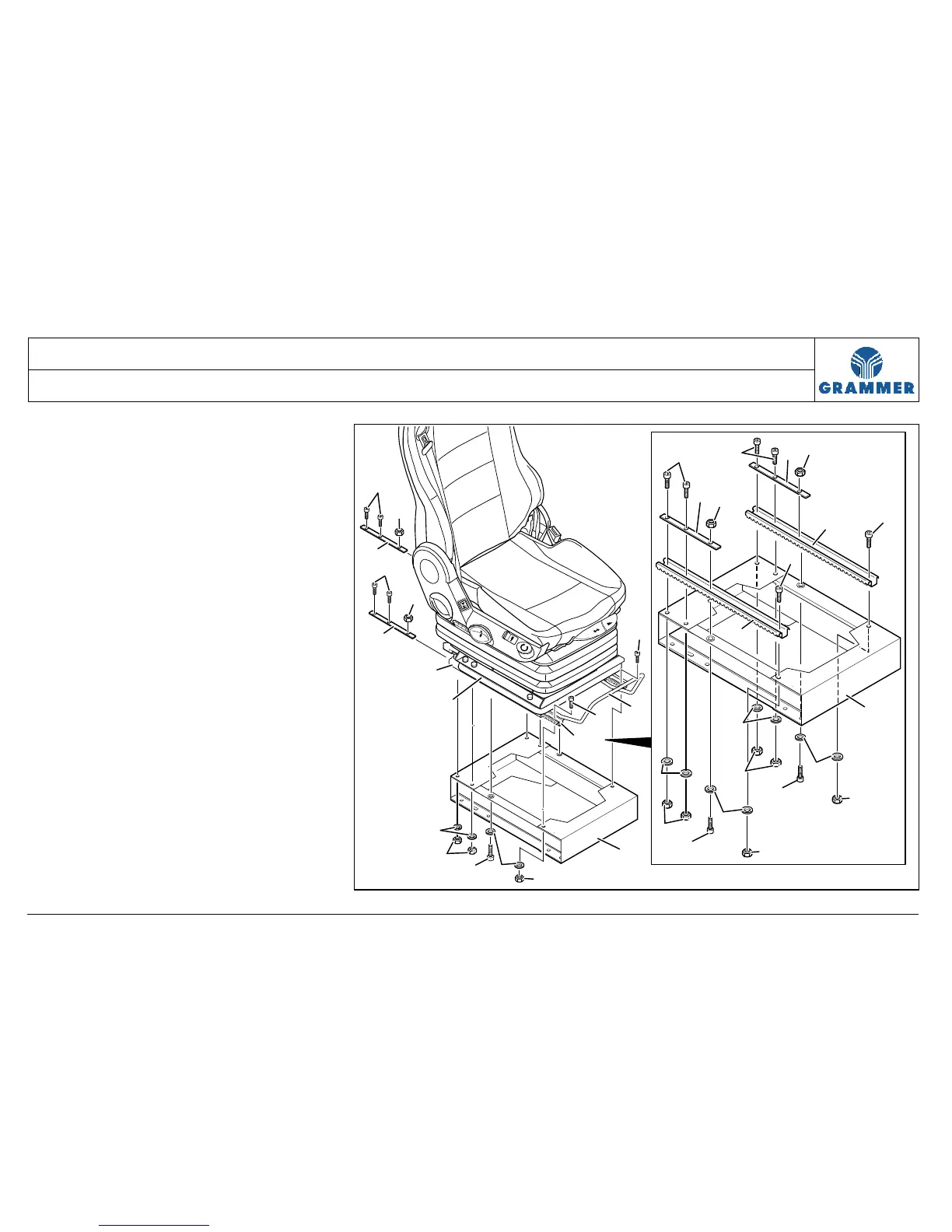

1 Push the seat backwards as far as
possible.
2 Unscrew two micro-encapsulated cap
screws (6) at the front and remove the
washers (8) and hexagon nuts (7).
Installation note:
Replace the micro-encapsulated cap
screw (6), 25 Nm.
3 Push the seat forwards as far as
possible.
4 Unscrew two micro-encapsulated cap
screws (9) and remove the washers
(8) and hexagon nuts (7).
Installation note:
Replace the micro-encapsulated cap
screw (9), 25 Nm.
