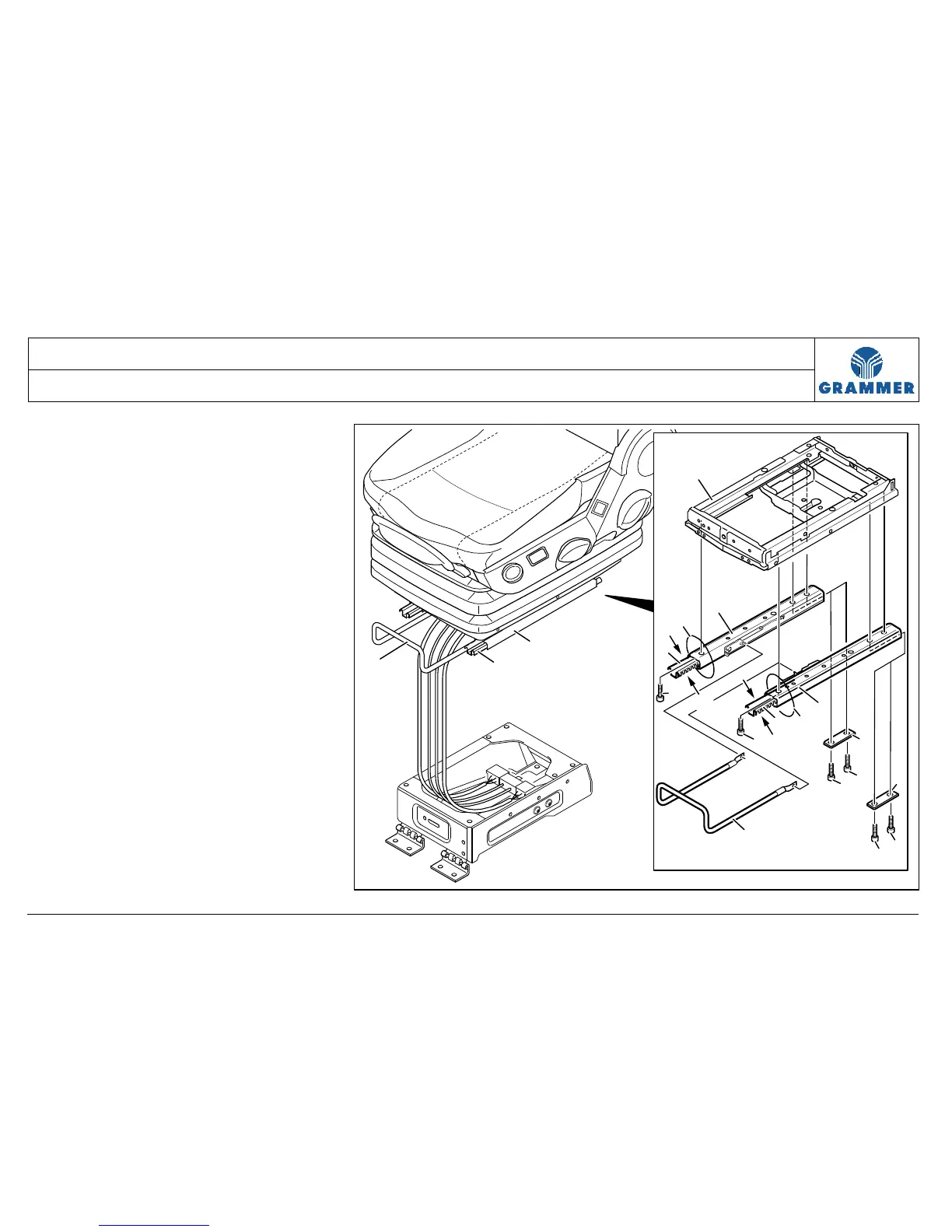

3.40.1 Seat fore/aft adjustment – removal and installation (Actros)
Page 3 of 3
REMOVAL / INSTALLATION TABLE OF CONTENTS
5 Unscrew four micro-encapsulated cap
screws (7) at the rear and remove two
plates with mounting holes (6) from
the adjusting rails (3).
Installation note:
Replace the micro-encapsulated cap
screw (7), 25 Nm.
6 Remove the seat fore/aft adjustment
(4) with the lever for fore/aft
adjustment (1) at the lower
suspension part (8).
Installation note:
Apply acid-free multi-purpose lubricant
to the notching (F) of the locking
rails (2).
7 Pull the lever for seat fore/aft
adjustment (1) out of the retainers for
the adjusting rails (3).
8 Re-install the components in the
reverse order of their removal.
