Repair Manual MSG 90.6PG Commercial Vehicles, Omnibuses – November 2017
Material no. 1153450_c

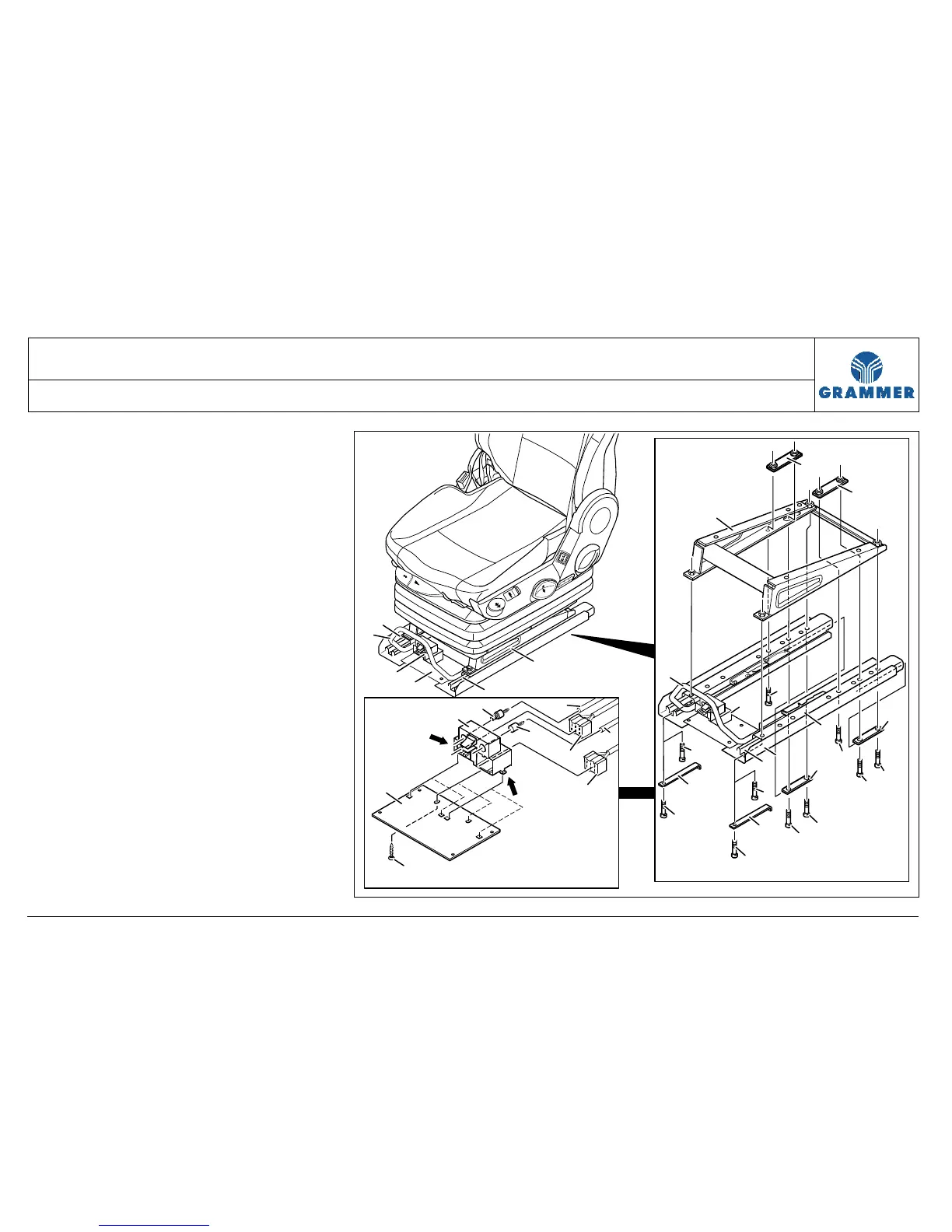

3.40.2 Seat fore/aft adjustment and pin contact strip –
removal and installation (Atego, Axor)
Page 1 of 6
REMOVAL / INSTALLATION TABLE OF CONTENTS
(1) Seat fore/aft adjustment (complete)
= (2) + (3) + (4) + (5)
(2) Lever for seat fore/aft adjustment
(3) Locking rail ...................... to grease
(4) Adjusting rail
(5) Base plate
(6) Pin contact strip
(7) Supporting structure
(8) Micro-encapsulated cap
screw ................. to replace, 25 Nm
(9) Micro-encapsulated cap
screw ..................
to replace, 25 Nm
(10) Plate with mounting holes
(11) Micro-encapsulated cap
screw .................. to replace, 25 Nm
(12) Screw-on plate
7
3
6
5
2
4
13
5
6
15
16
14
18
19
17
10
11
11
10
6
7
12
12
11
11
8
3
5
2
4
9
8
20
20
21
21
9
