Repair Manual MSG 90.6PG Commercial Vehicles, Omnibuses – November 2017
Material no. 1153450_c

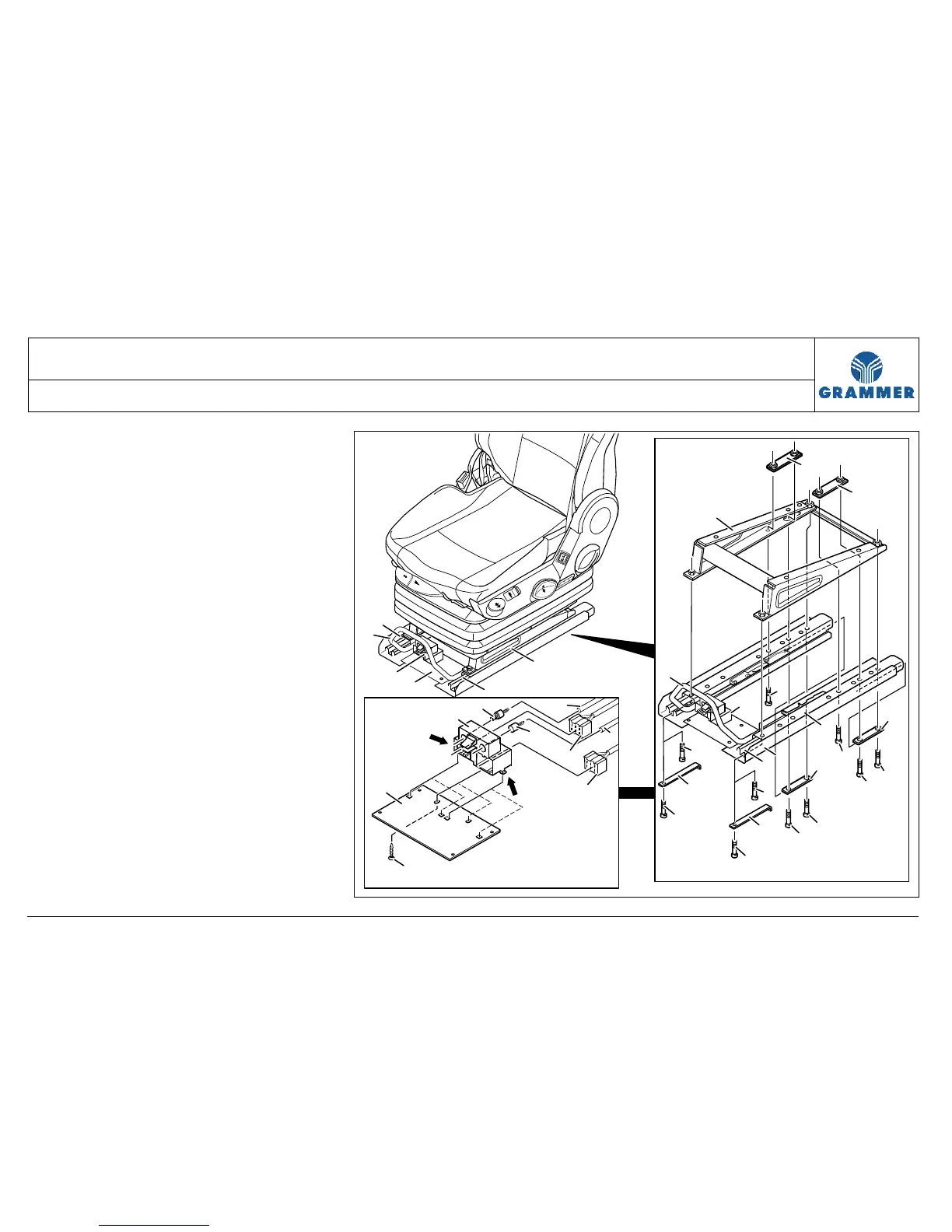

3.40.2 Seat fore/aft adjustment and pin contact strip –
removal and installation (Atego, Axor)
Page 2 of 6
REMOVAL / INSTALLATION TABLE OF CONTENTS
(13) Rounded head screw
(inner race) .......................... 2.6 Nm
(14) Plug of the cable for vehicle
connection
(15) Connection for air exhaust
(16) Connection for air intake
(17) Plug of EPS cable (delivery option)
(18) Air hose for air exhaust
(19) Air hose for air intake
(20) Micro-encapsulated cap
screw .................. to replace, 25 Nm
(21) Stopper
