Repair Manual MSG 90.6PG Commercial Vehicles, Omnibuses – November 2017
Material no. 1153450_c

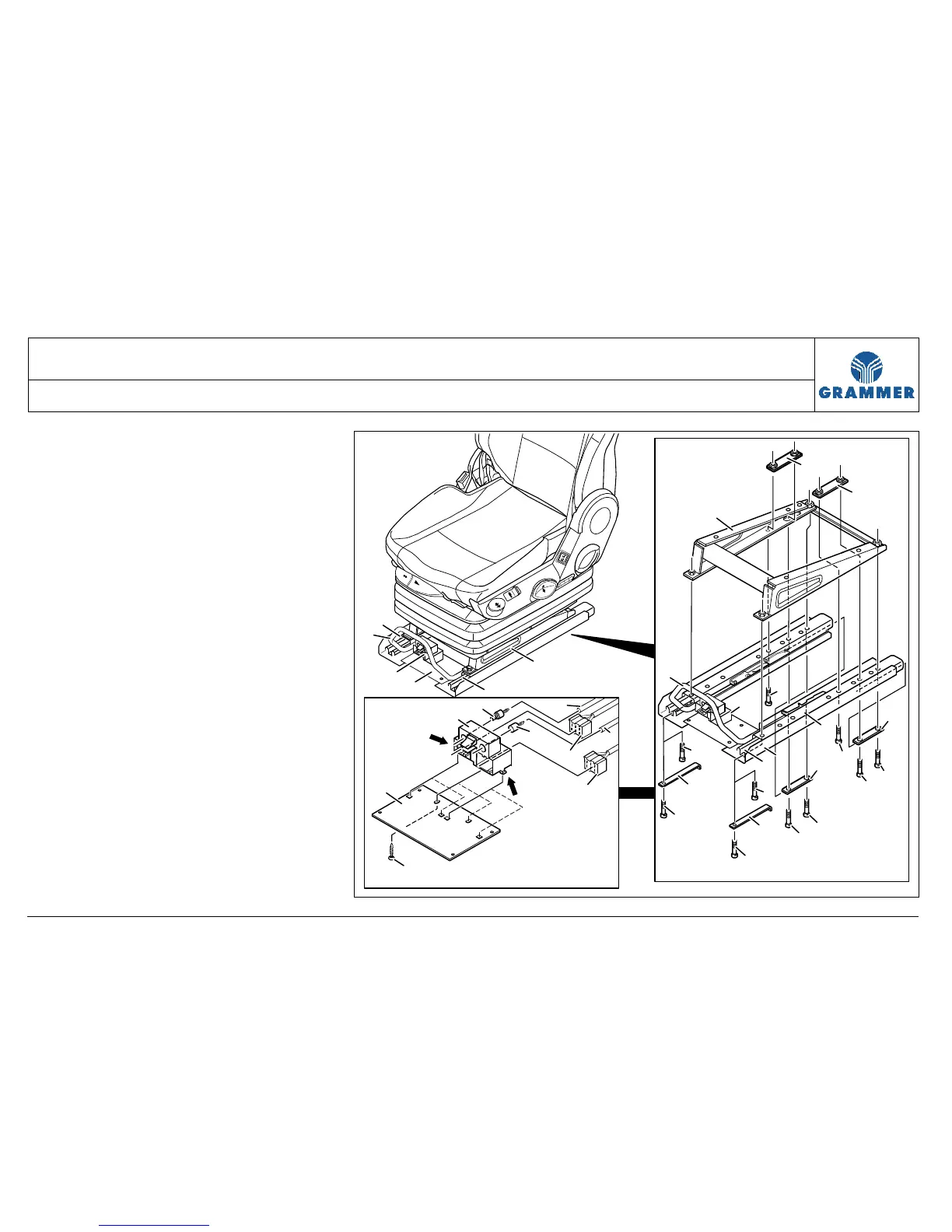

3.40.2 Seat fore/aft adjustment and pin contact strip –
removal and installation (Atego, Axor)
Page 3 of 6
REMOVAL / INSTALLATION TABLE OF CONTENTS
Removal and installation
1 Unscrew the rounded head
screw (13).
Installation note:
Rounded head screw (13), 2.6 Nm.
2 Push the pin contact strip (6) to the
right to unhook the two noses (arrows)
at the base plate (5).
3 Remove the pin contact strip (6) at the
base plate (5) and put it aside.
Note:
In left-hand drive vehicles, the pin
contact strip (6) is installed on the
right side of the base plate (5) (tunnel
side). For right-hand drive vehicles,
the pin contact strip (6) has to be
mounted to the left side of the base
plate (5).
7
3
6
5
2
4
13
5
6
15
16
14
18
19
17
10
11
11
10
6
7
12
12
11
11
8
3
5
2
4
9
8
20
20
21
21
9
