Grammer MSG 90.6PG - Page 340

Repair Manual MSG 90.6PG Commercial Vehicles, Omnibuses – November 2017
Material no. 1153450_c
3.40.2 Seat fore/aft adjustment and pin contact strip –
removal and installation (Atego, Axor)
Page 4 of 6
REMOVAL / INSTALLATION TABLE OF CONTENTS

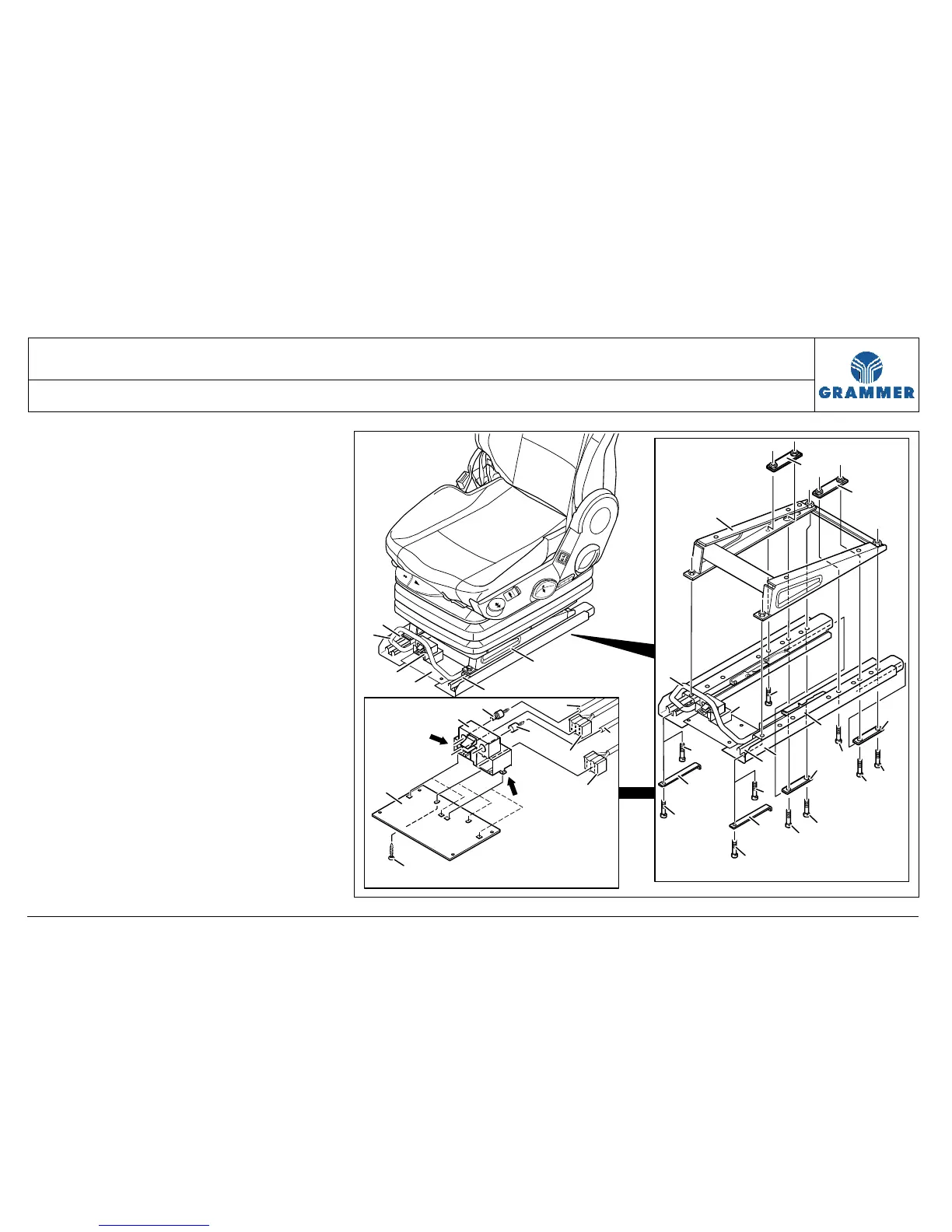

4 Push the seat forwards as far as
possible.
5 Seat without operator console and
armrest for electro-pneumatic
gearshift:
Unscrew two micro-encapsulated cap
screws (8) at the front.
Installation note:
Replace the micro-encapsulated cap
screw (8), 25 Nm.
6 Seat with operator console and
armrest for electro-pneumatic
gearshift:
Unscrew two micro-encapsulated cap
screws (20) at the front and remove
the stoppers (21).
Installation note:
Replace the micro-encapsulated cap
screw (20), 25 Nm.
