3.40.2 Seat fore/aft adjustment and pin contact strip –
removal and installation (Atego, Axor)
Page 5 of 6
REMOVAL / INSTALLATION TABLE OF CONTENTS

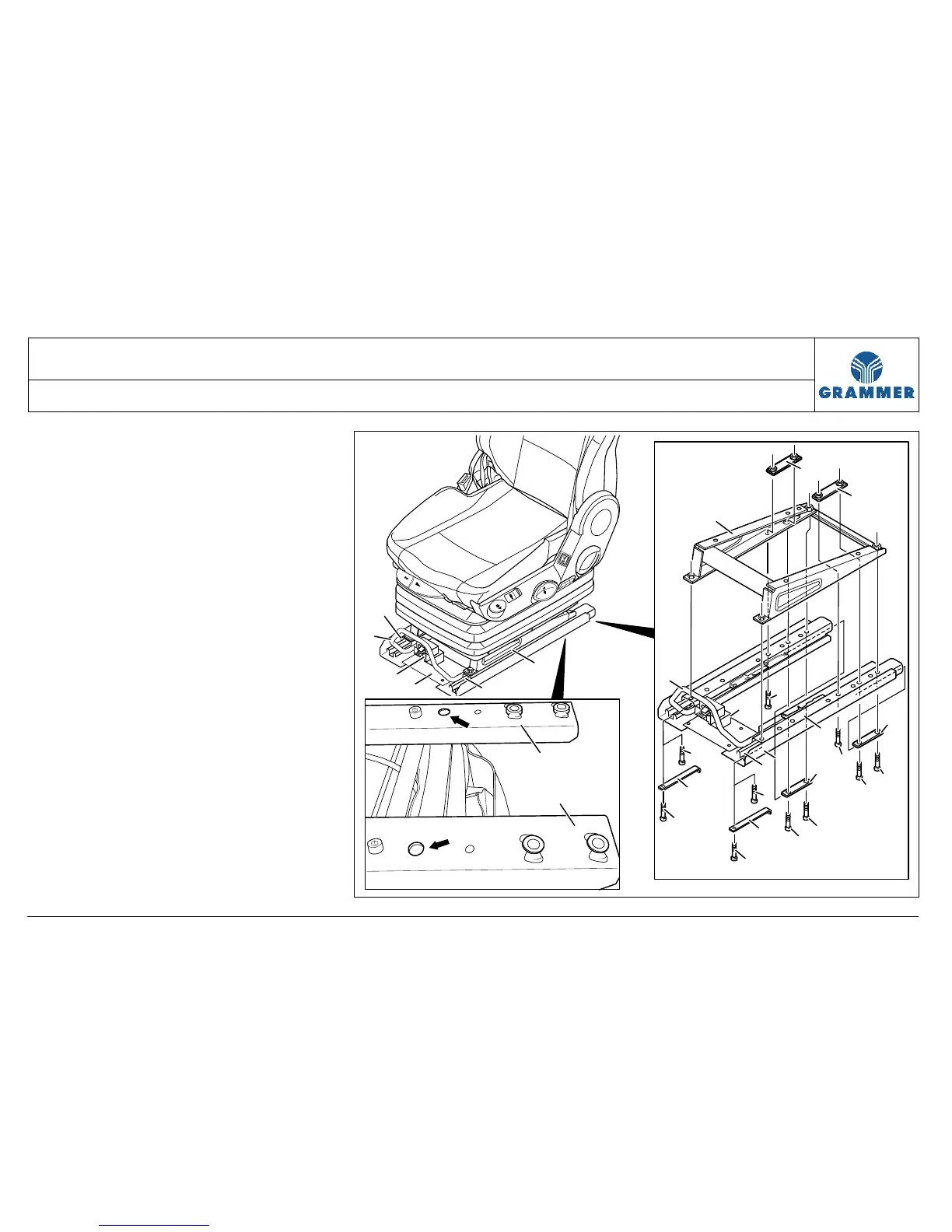

7 Move the seat by means of the seat
fore/aft adjustment (1) so that the
micro-encapsulated cap screws
(9, 11) are accessible via the
mounting holes (arrows) at the bottom
in the base plate (5).
8 Unscrew two micro-encapsulated cap
screws (9).
Installation note:
Replace the micro-encapsulated cap
screw (9), 25 Nm.
9 Unscrew four micro-encapsulated cap
screws (11) and remove two plates
with mounting holes (10) and two
screw-on plates (12).
Installation note:
Replace the micro-encapsulated cap
screw (11), 25 Nm.
10 Remove the seat fore/aft adjustment
(1) at the supporting structure (7).
