Grammer MSG 90.6PG - Page 342

Repair Manual MSG 90.6PG Commercial Vehicles, Omnibuses – November 2017
Material no. 1153450_c

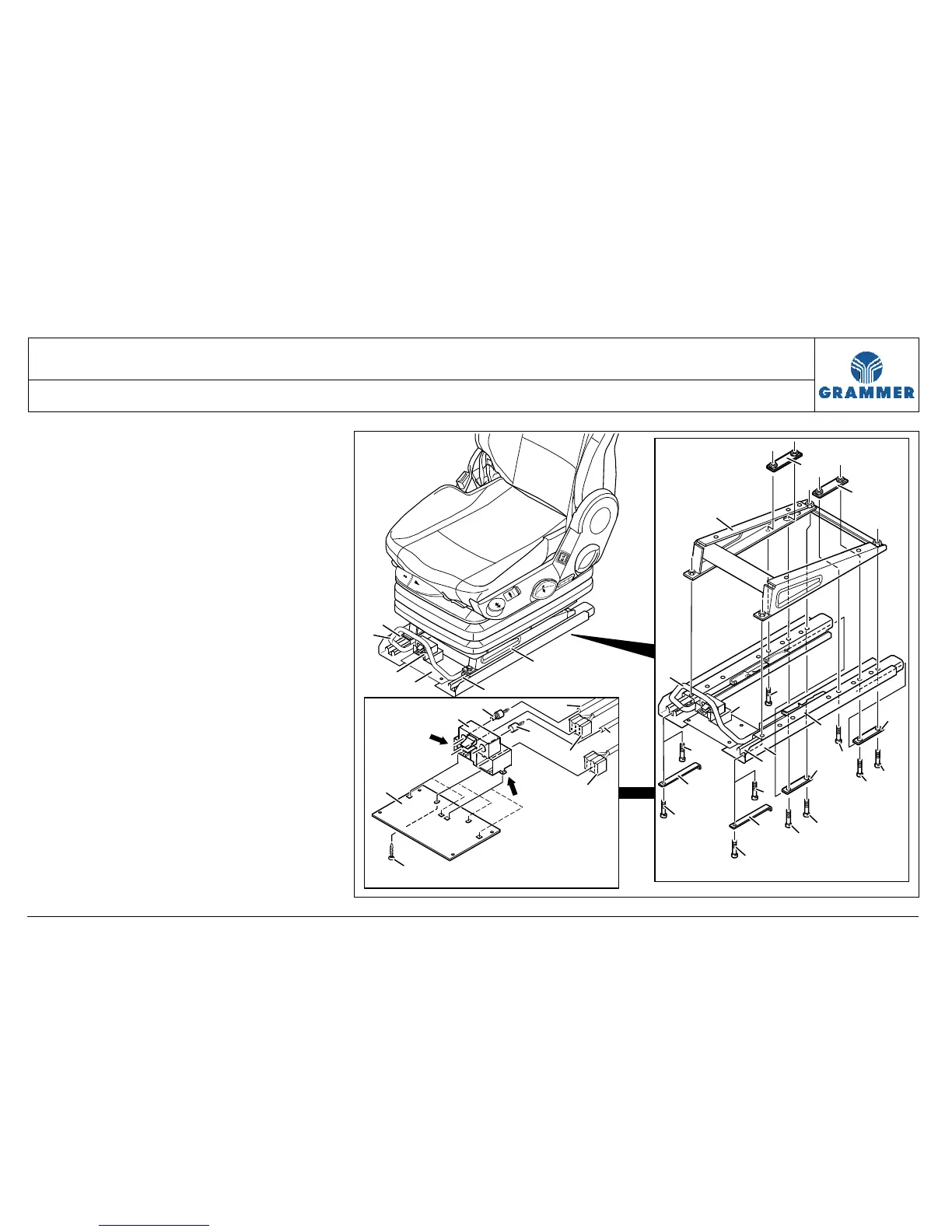

3.40.2 Seat fore/aft adjustment and pin contact strip –
removal and installation (Atego, Axor)
Page 6 of 6
REMOVAL / INSTALLATION TABLE OF CONTENTS
11 Removal of the pin contact
strip (6):
11.1 Disconnect the electrical
connection between the pin contact
strip (6) and the plug of the cable
for vehicle connection (14).
11.2 Pull off the air hose for air intake
(19) and air exhaust (18) at the
connection for air intake (16) and
air exhaust (15).
11.3 Seat with operator console and
armrest for electro-pneumatic
gearshift:
Disconnect the electrical
connection between the pin contact
strip (6) and the plug of the EPS
cable (17).
11.4 Remove the pin contact strip (6).
12 Re-install the components in the
reverse order of their removal.
7
3
6
5
2
4
13
5
6
15
16
14
18
19
17
10
11
11
10
6
7
12
12
11
11
8
3
5
2
4
9
8
20
20
21
21
9
2243
