Grammer MSG 90.6PG - Page 362

Repair Manual MSG 90.6PG Commercial Vehicles, Omnibuses – November 2017
Material no. 1153450_c
3.44 Seat suspension – removal and installation
Page 4 of 8
REMOVAL / INSTALLATION TABLE OF CONTENTS

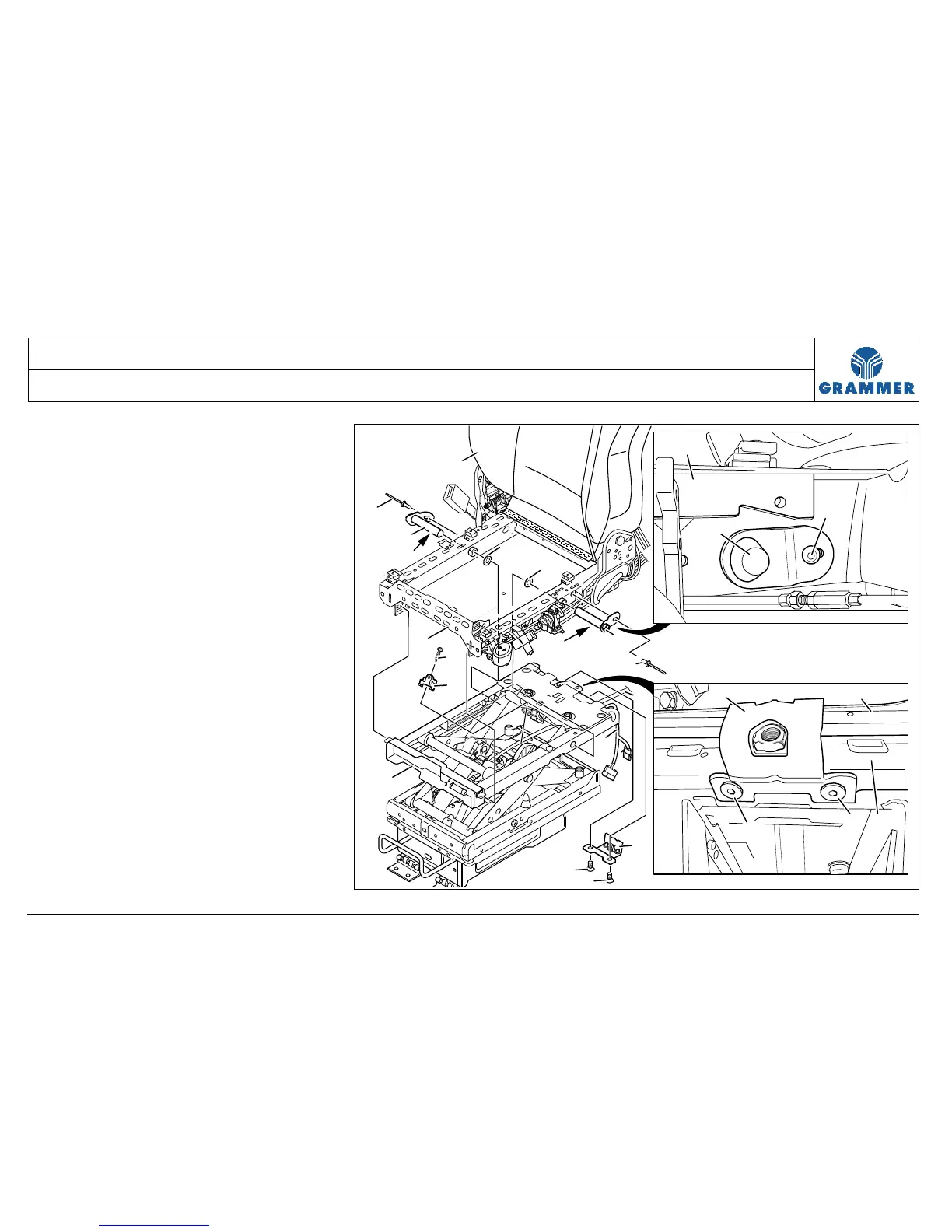

10 Seat with fore/aft isolator:
10.1 Remove the Bowden pull wire for
the locking mechanism of the
fore/aft isolator (Chapter 3.15).
10.2 Remove the fore/aft isolator
(Chapter 3.37).
11 Remove the Bowden pull wire for
seat angle adjustment with the
locking mechanism (Chapter 3.17).
Note:
Remove the entire locking
mechanism, do not disassemble it.
12 Seat with belt buckle and belt
buckle cable:
Disconnect the electrical connection
between the plug and the socket of
the belt buckle cable (see
Chapter 3.28).
