3.47.1 Swivel and linkage rod – removal and installation
Page 3 of 4
REMOVAL / INSTALLATION TABLE OF CONTENTS
Removal and installation
4 ATTENTION Damage!
When lifting off the swivel (1), do not
overstretch the air hose to the cylinder
(7) and take care not to damage the
hose connection to the cylinder (6).

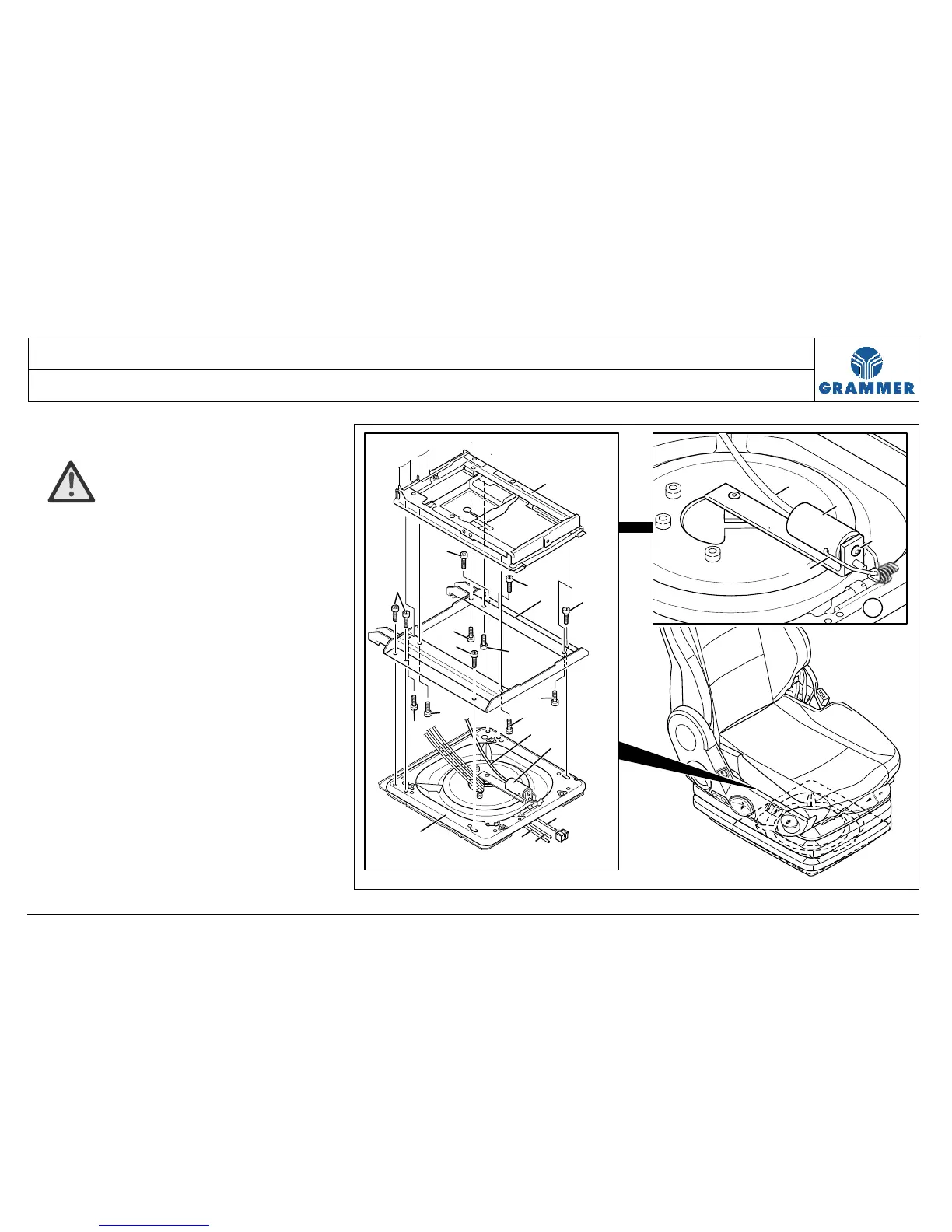

Unscrew six micro-encapsulated cap
screws (2) and remove the swivel (1)
at the supporting structure for the
swivel (3).
Installation note:
Replace the micro-encapsulated cap
screw (1), 25 Nm.
5 Thread the air hoses for air intake and
air exhaust (8, 9) and the cable for
vehicle connection (10) through the
swivel (1) to the lower suspension
part (4).
