Repair Manual MSG 90.6PG Commercial Vehicles, Omnibuses – November 2017
Material no. 1153450_c

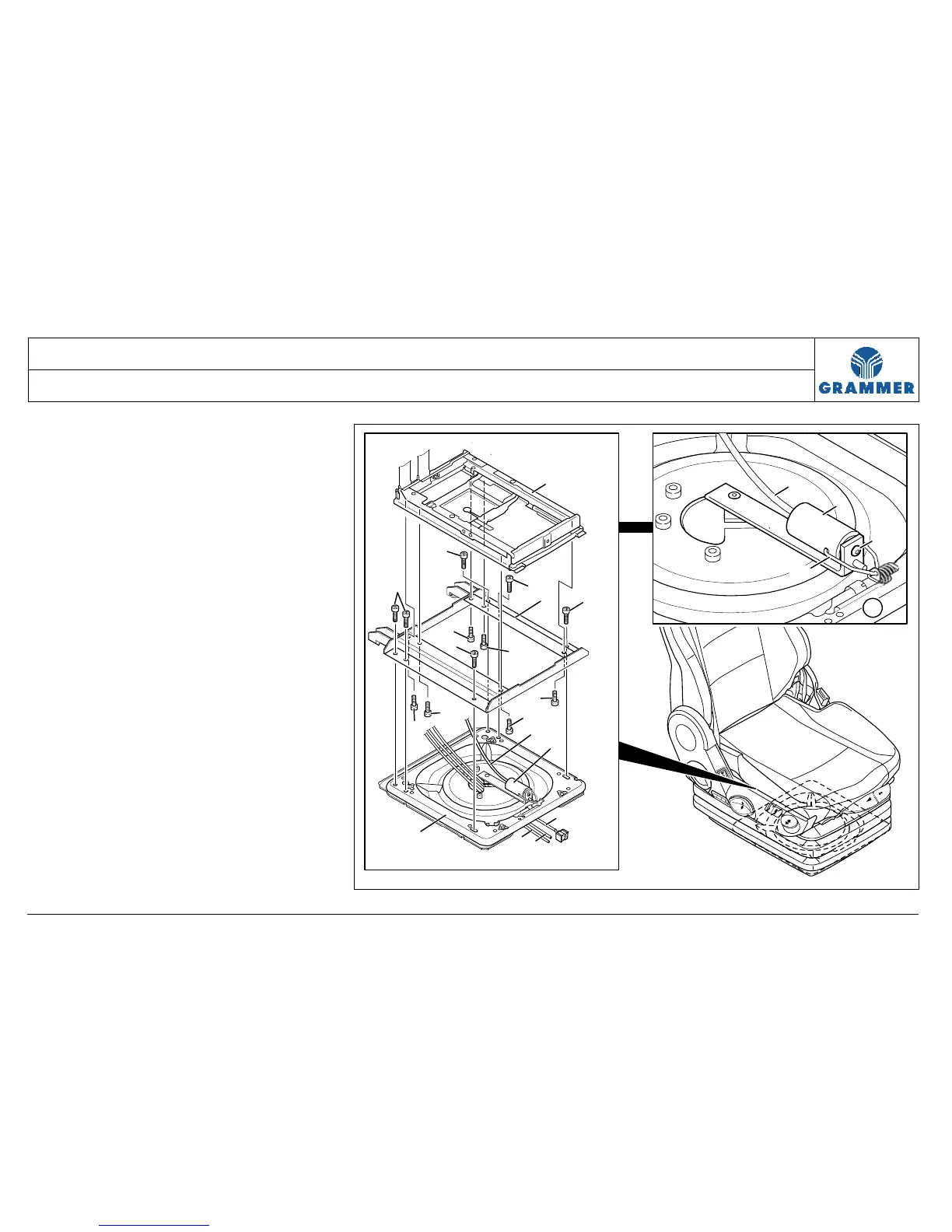

3.47.1 Swivel and linkage rod – removal and installation
Page 4 of 4
REMOVAL / INSTALLATION TABLE OF CONTENTS
6 Unscrew the rounded head screw (11)
at the cylinder (6).
Installation note:
Hand-tighten the rounded head
screw (11).
7 Detach the wire bracket (12) at the
cylinder (6) and remove the swivel (1).
8 Removal of the supporting
structure for the swivel (3):
Unscrew six micro-encapsulated cap
screws (5) and remove the supporting
structure for the swivel (3) at the lower
suspension part (4).
Installation note:
Replace the micro-encapsulated cap
screw (5), 25 Nm.
9 Re-install the components in the
reverse order of their removal.
1
8
9
10
3
4
2
11
6
7
12
1
5
5
5
7
6
5
5
2
5
2
2
2
