Repair Manual MSG 90.6PG Commercial Vehicles, Omnibuses – November 2017
Material no. 1153450_c

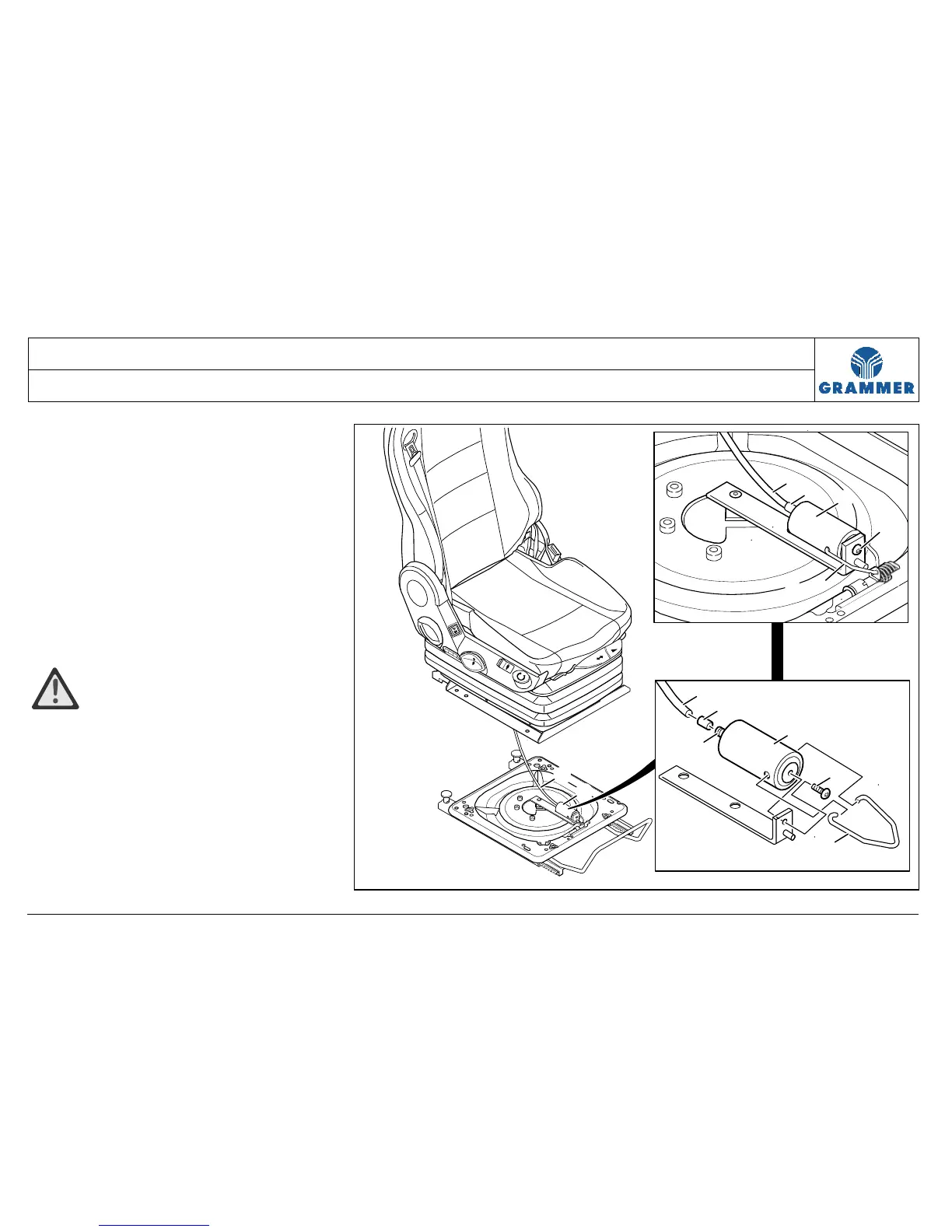

3.47.2 Cylinder for swivel – removal and installation
Page 1 of 4
REMOVAL / INSTALLATION TABLE OF CONTENTS
(1) Air hose (to the cylinder)
(2) Cylinder for the swivel
(3) Rounded head screw
(inner race) ............. to hand-tighten
(4) Wire bracket
(5) Hose nozzle
(6) Connection (fixed throttle)
ATTENTION Hydrostatic test!
The hydraulic test of the seat should be
performed upon installation of the
cylinder (2). To do this, apply 60 kg load
to the seat for 24 hours. The lowering
within this time must not exceed 15 mm.
3
1
2
4
3
4
2
6
1
1
5
1
2
5
3
