Grammer MSG 90.6PG - Page 377

Repair Manual MSG 90.6PG Commercial Vehicles, Omnibuses – November 2017
Material no. 1153450_c

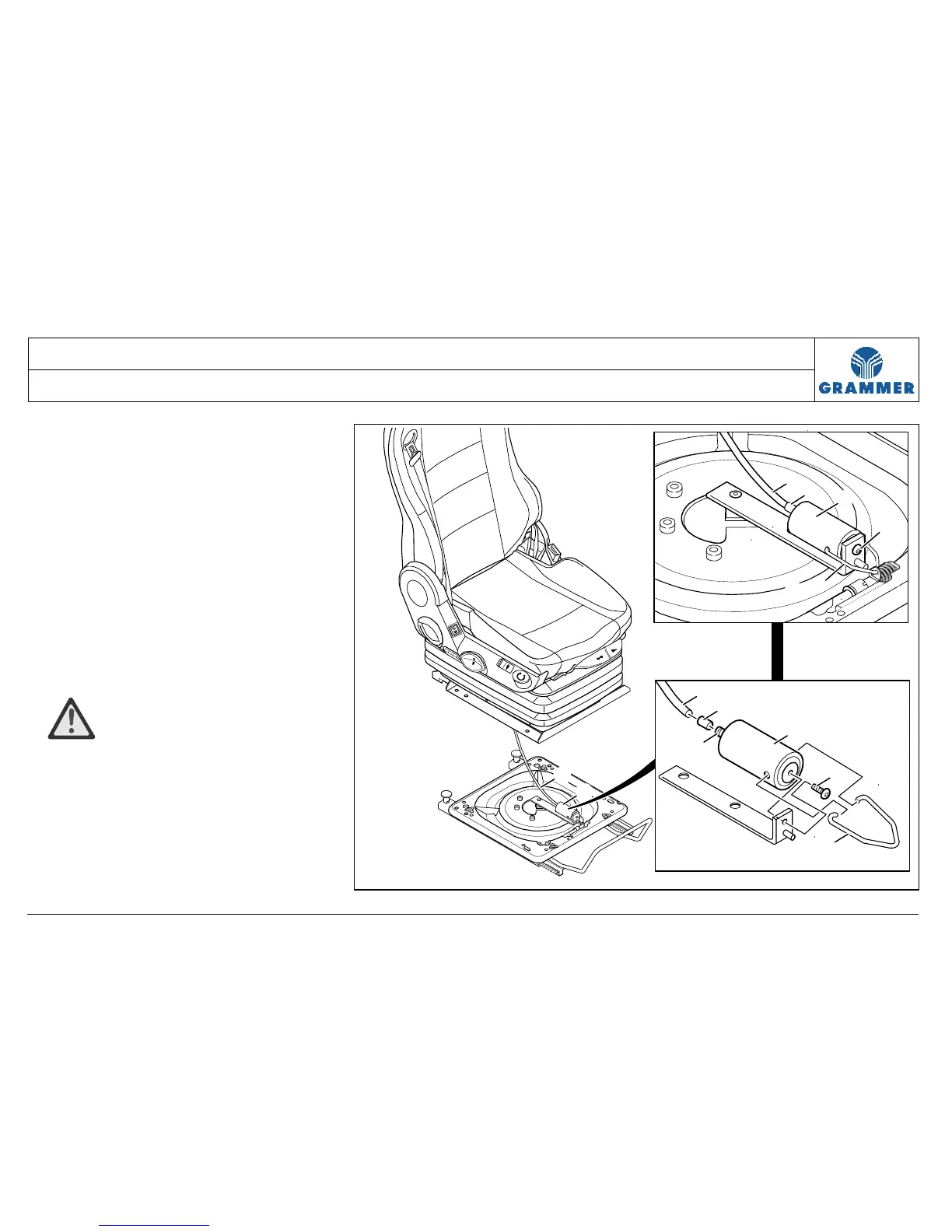

3.47.2 Cylinder for swivel – removal and installation
Page 2 of 4
REMOVAL / INSTALLATION TABLE OF CONTENTS
1 Position the backrest vertically and put
the seat onto the backrest.
2 Remove the supporting structure
(Chapter 3.39).
3 Remove the swivel (see
Chapter 3.47).
Note:
Do not remove the fore/aft adjustment
at the swivel.
Removal and installation
4 WARNING The pressure in the
pneumatic system might cause injury!
The pneumatic system is to be vented
before removing the cylinder for the
swivel (2).
5 Pull off the hose nozzle (5) and push it
backwards over the air hose (1).
3
1
2
4
3
4
2
6
1
1
5
1
2
5
3
2260
