3.55 Microphone support – removal and installation
(seat with climate control system)
Page 1 of 3
REMOVAL / INSTALLATION TABLE OF CONTENTS

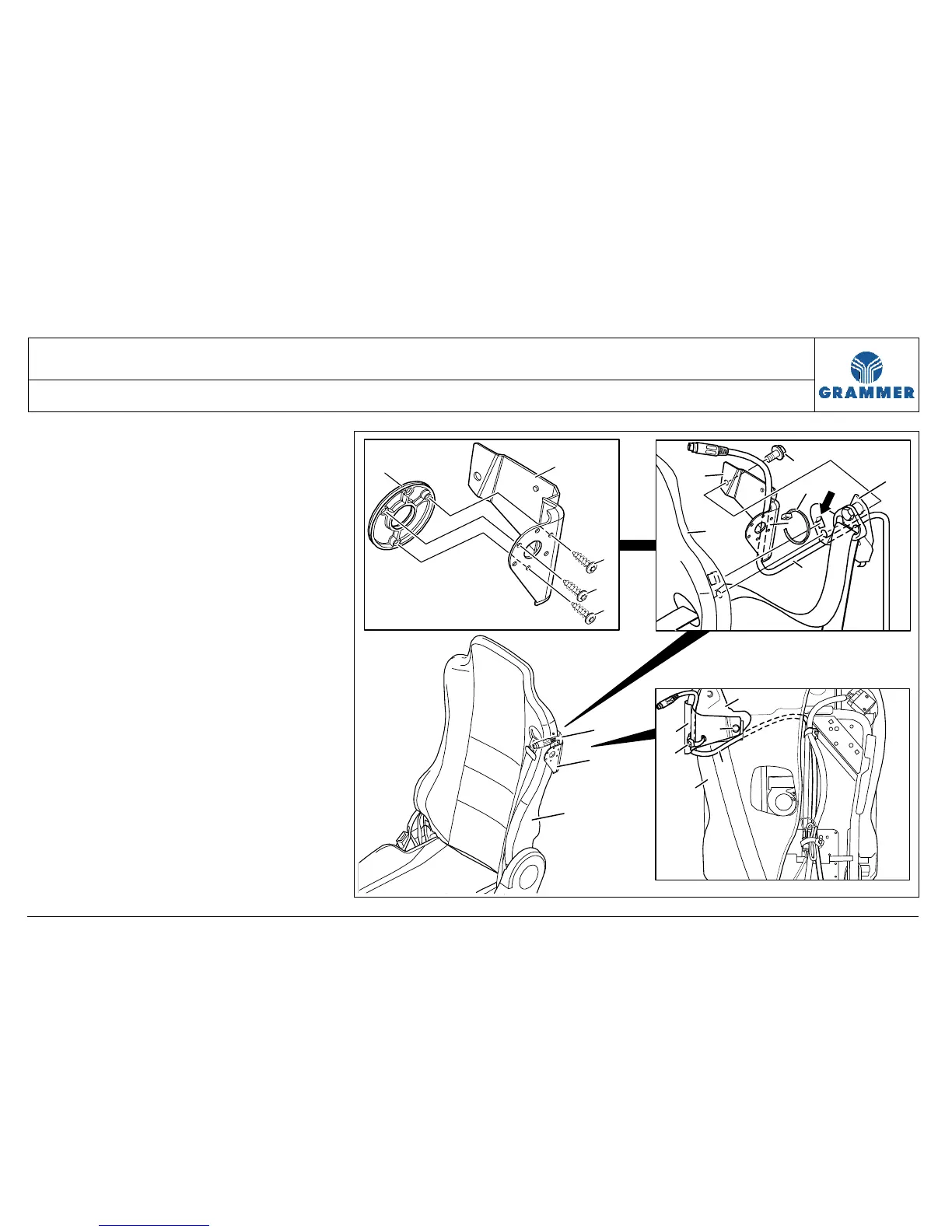

(1) Microphone support
(2) Cable for microphone
(3) Backrest
(4) Serrated washer head screw
........................... to replace, 25 Nm
(5) Cable tie
(6) Belt bracket
(7) Adapter plate (for microphone)
(8) Rounded head screw
(inner race) .............................. 6 Nm
1 Remove the backrest cover (see
Chapter 3.26).
2 Open the zipper of the backrest cover
completely (see Chapter 3.31).
1
8
7
8
8
3
1
2
6
2
4
1
3
5
2
4
5
1
3
6
