Grandstream Networks GXP1610 Quick Installation Guide

To setup the GXP1610/1615, follow the steps below:
1. Connect the handset and main phone case with the phone cord.
2. Connect the LAN port of the phone to the RJ-45 socket of a hub/
switch or a router (LAN side of the router) using the Ethernet cable.
3. Connect the 5V DC output plug to the power jack on the phone;
plug the power adapter into an electrical outlet.
4. The LCD will display provisioning or rmware upgrade information.
Before continuing, please wait for the date/time display to show up.
5. Using the phone embedded web server or keypad conguration
menu, you can further congure the phone using either a static IP
or DHCP.
CONNECTING THE PHONE:
4
3
Tips For Using the Keypad:
Message Waiting
Indicator
Line Key
Softkey
Message
Phonebook
Page/Intercom
HOME Button
Hold
Standard Keypad
Menu/OK key
Navigation keys
Record
Headset
Speaker
Volume
Send
Transfer
Mute
Conference
1. To access the MENU, press the round MENU button.
2. Navigate the menu by using the UP/DOWN and LEFT/RIGHT but-
tons.
3. Press the round MENU button to conrm a menu selection.
4. The phone automatically exits MENU mode when there is an in-
coming call, the phone goes off-hook, or when the MENU mode is
left idle for 60 seconds.

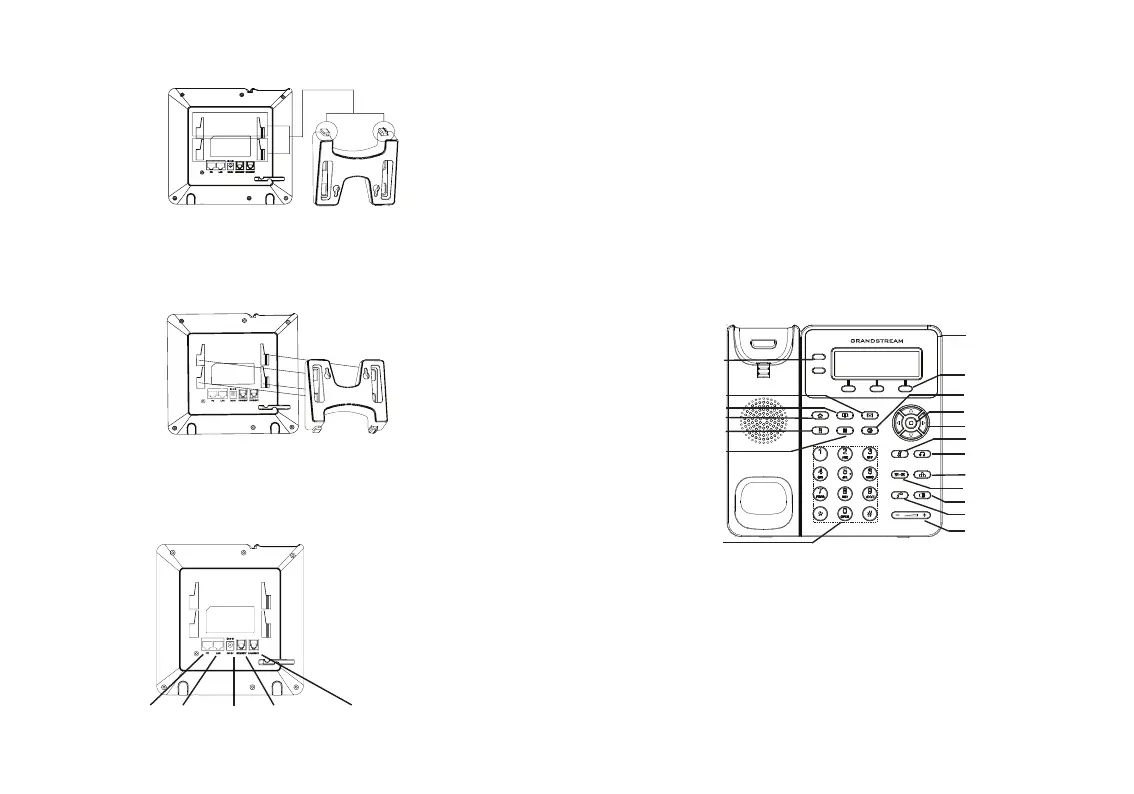

Installing the Phone (Phone Stand):
1. Insert the hooks on top of the stand into a slots, you have options
to use either upper OR lower slots.
2. Firmly slide the stand upward to lock it in place.
Installing the Phone (Wall Mount):
UPPER
LOWER
OR
1. Insert all 4 hooks located in the front of wall mount into the slots.
2. Firmly slide the wall mount upward to lock it in place.
3. Pull out and rotate the tab from handset rest to hold the handset
while the phone is mounted on the wall.
LAN Port
Power
Handset Port
PC Port
Headset Port
